MSI ATX MAG FORGE 100R Tempered Glass Black Case (No PSU)

Web ID: 27590

Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: MAG FORGE 100R
GTIN: 824142198841
Manufacturer Website

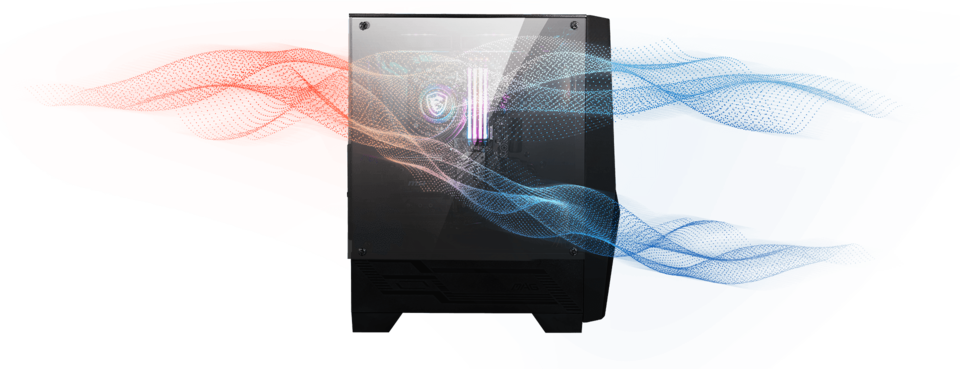

OPTIMIZED AIR FLOW

Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.

* To guide the airflow from the radiator, please evaluate and adjust the airflow direction of the top fan when installing the radiator.

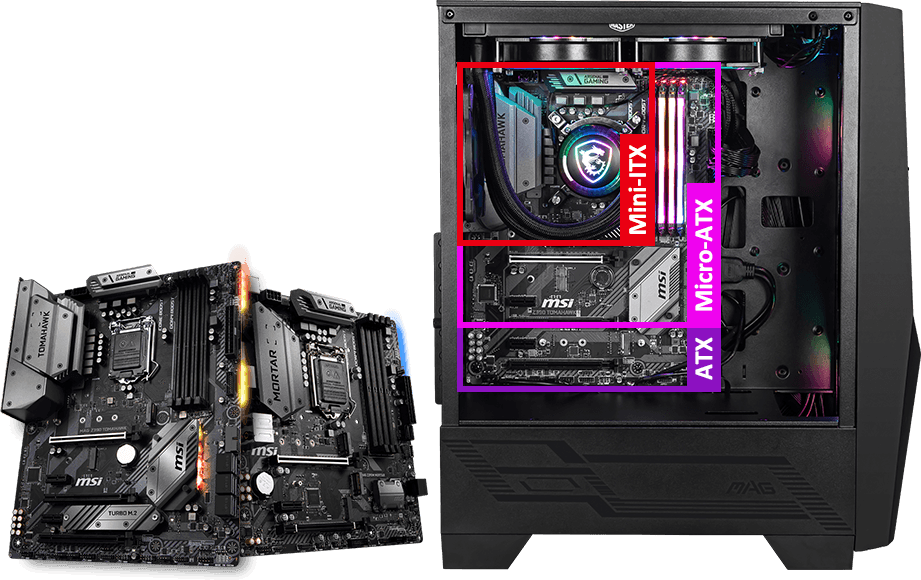

READY FOR OPTIMIZED MOTHERBOARD

Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

Support
ATX / Micro ATX / Mini-ITX

BUILT FOR A PRIME FAN AND RADIATOR CAPACITY

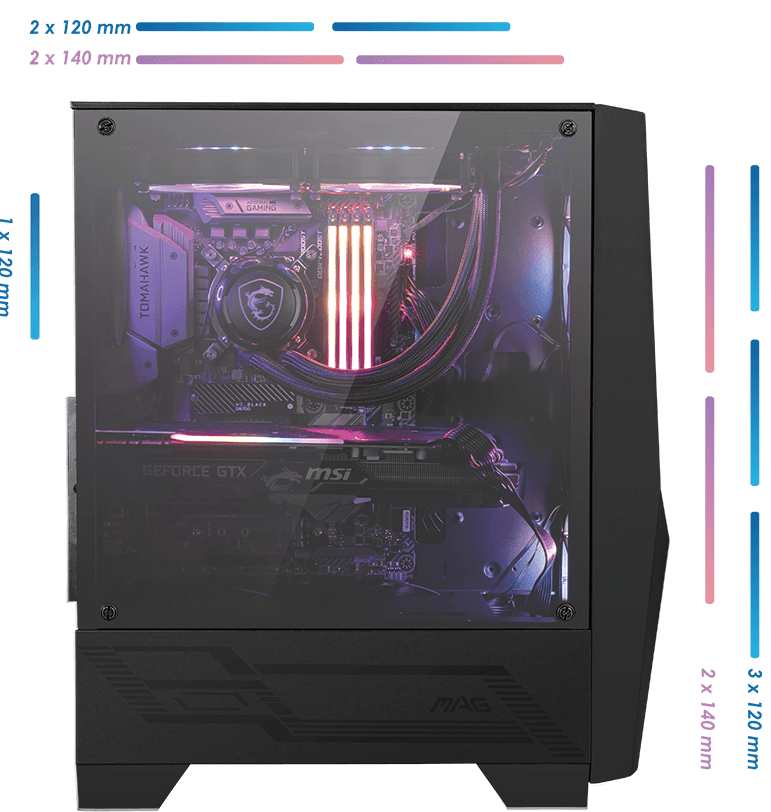

COOLING LAYOUT

Front: Up to 3 x 120 mm or 2 x 140 mm
Top: Up to 2 x 120 mm or 2 x 140 mm
Rear: 1 x 120 mm

PRE-INSTALL FAN

Front: 2 x 120 mm addressable RGB LED Fan included
Rear: 1 x 120mm System Fan included

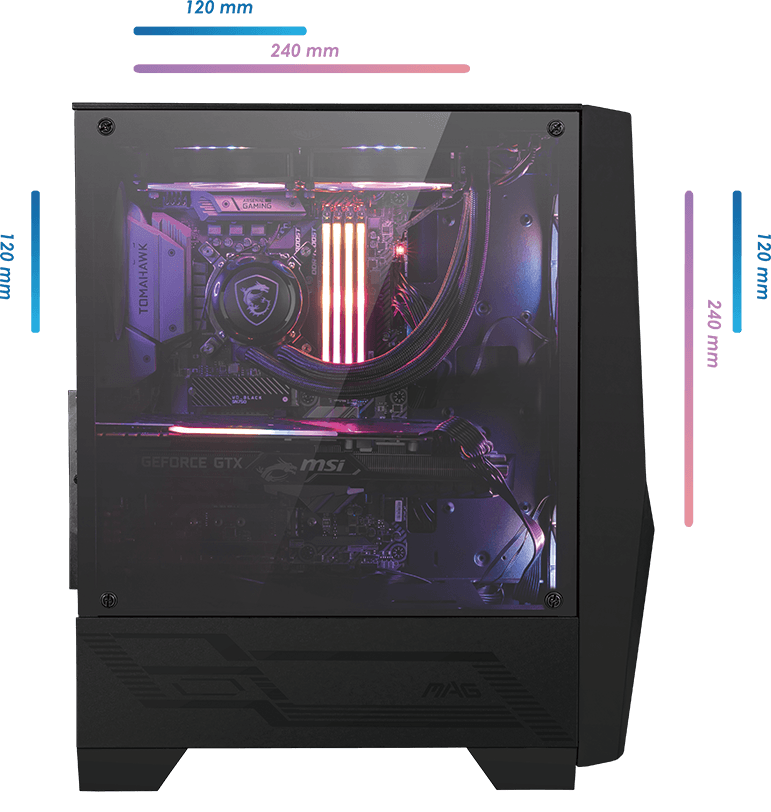

RADIATOR LAYOUT

Top - support 120 / 240 mm radiator
Pront - support 120 / 240 mm radiator
Rear - support 120 radiator

BUILT FOR OPTIMIZED CASE STRUCTURE

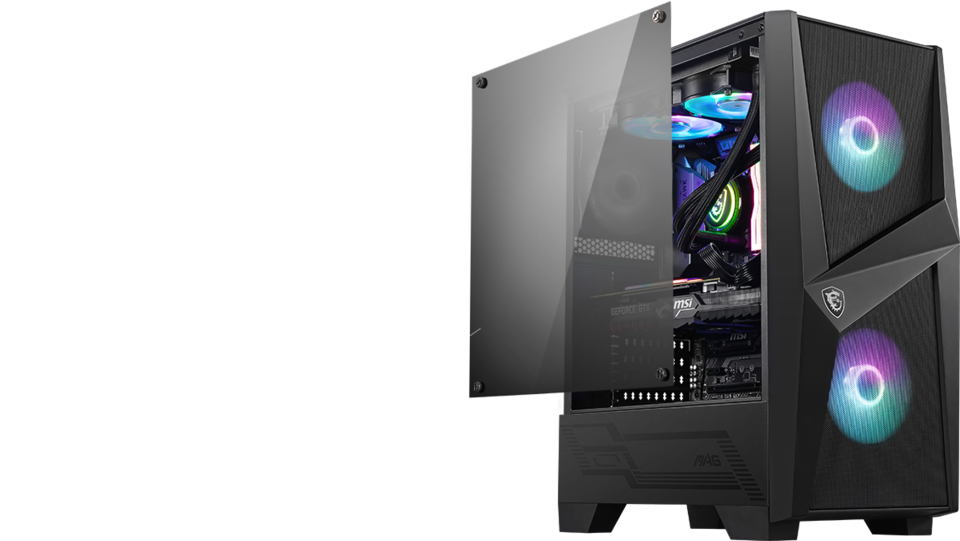

TOOL-LESS TEMPERED GLASS

The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.

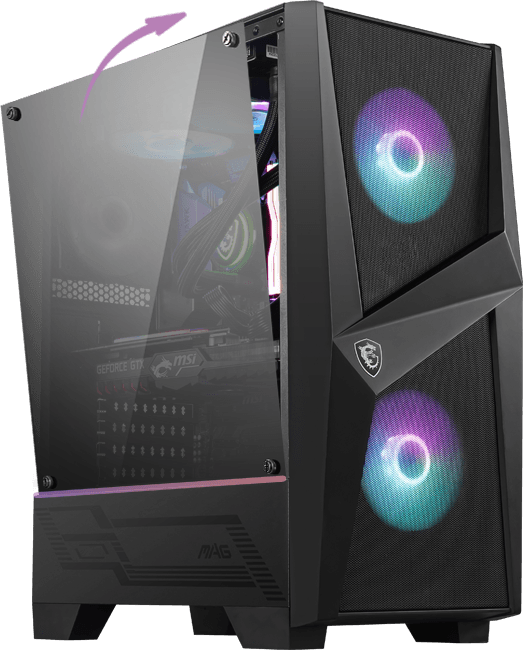

The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.

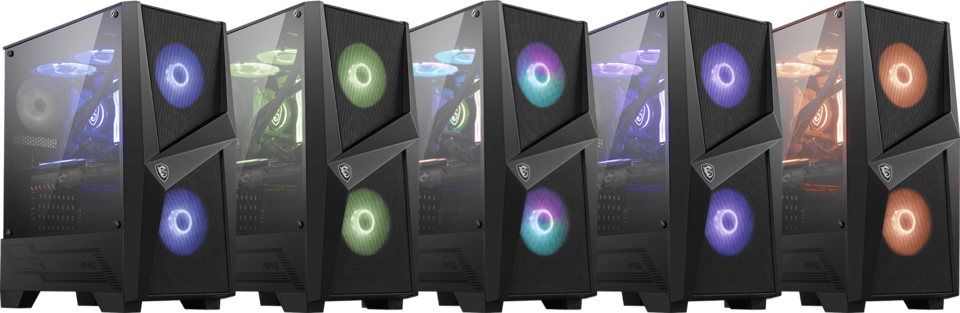

PERSONALIZE YOUR GAMING RIG

Customizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.

>> Learn more about Mystic Light <<

*Some lighting effects require the MSI Mystic Light software and vary by model.
The Default lighting controls with controlbutton: Static, Flashing, Rainbow, Breathing, Meteor, MB Sync and Close.

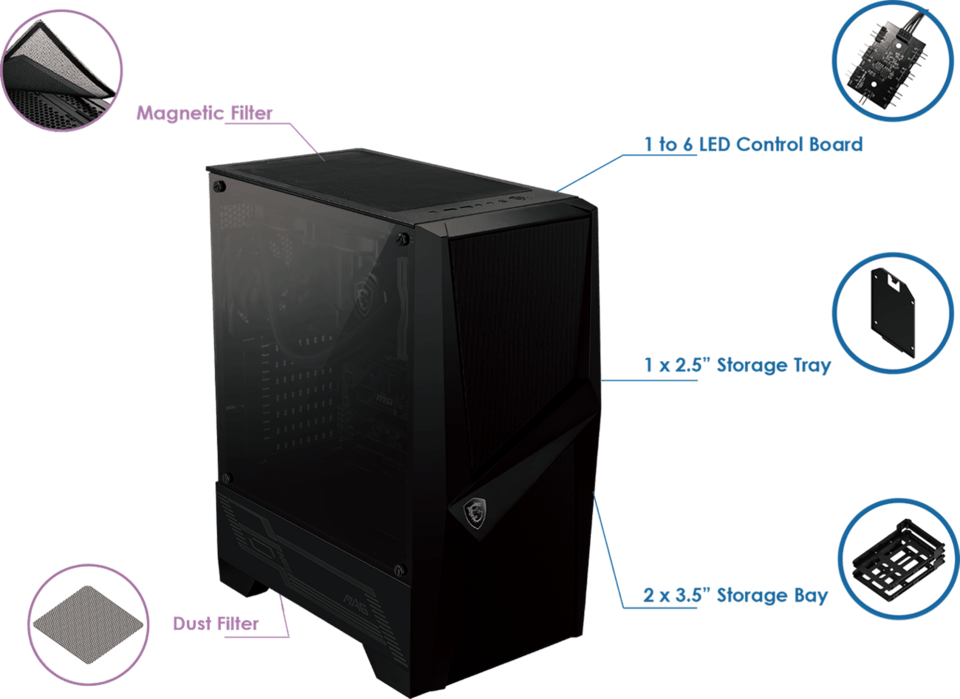

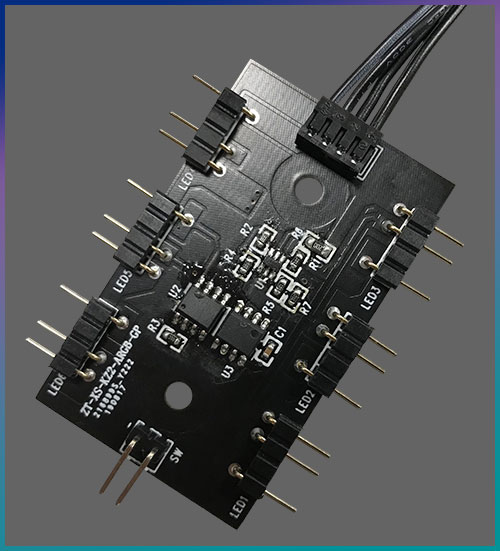

1 to 6 ARGB LED Control Board

User can intuitively control & switch 9 lighting effects through the LED switch button.

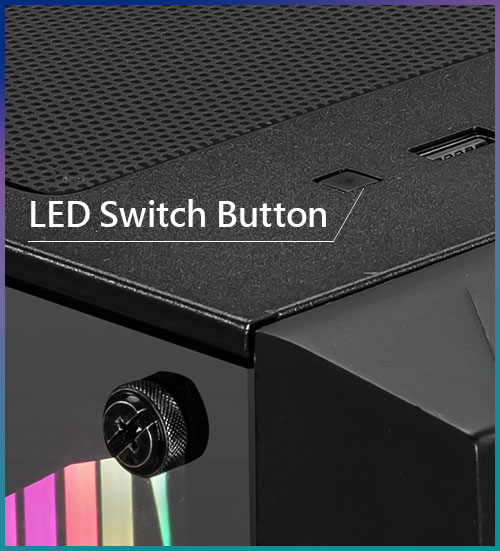

LED Switch Button

Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.

MAG Forge 100R
2 x USB 3.2 Gen1 Type-A / 1 x HD Audio / 1 x Mic
2 x 3.5” (compatible with 2.5”) + 3 x 2.5”

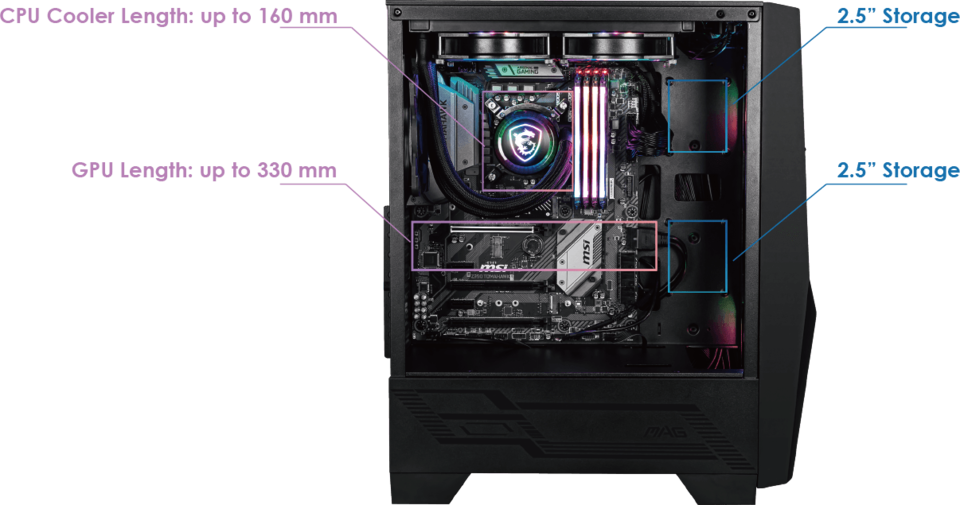

7
330 mm
160 mm
120 / 140 / 240 mm
Standard ATX 160 mm, max to 200 mm (without 3.5” HDD case installed)
Front: Up to 3 x 120 mm / 2 x 140 mm
Top: Up to 2 x 120 mm / 2 x 140 mm
Rear: Up to 1 x 120 mm
Front: 2 x 120 mm addressable RGB LED Fan included
Rear: 1 x 120 mm System Fan included
Front: Up to 240 mm
Top: Up to 240 mm
Rear: Up to 120 mm
Mid-Tower
ATX / mATX / Mini-ITX
421(D) x 210(W) x 499(H) mm
17.05(D) x 8.27(W) x 19.65(H) inch
5.64 kg
