MSI AM4 ATX B450 GAMING PRO CARBON AC DDR4 Motherboard

Web ID: 24269

AMD B450 Chipset, AMD AM4 CPU Socket, HDMI, DisplayPort, USB 2.0, USB 3.1 Type-A (Gen1), USB 3.1 Type-A (Gen2), USB 3.1 Type-C (Gen2), PCIe x16, PCIe x1, PCIe x4, SATA 6Gb/s, PCIe x4, M.2 SATA, M.2 PCIe, DDR4 Memory Type, Bluetooth Input Output, 7.1 Channel Audio, Wireless-AC, Gigabit LAN Speed, ATX Form Factor,
Manufacturer Warranty: 3 Year
Manufacturer PN: B450 GAMING PRO CARBON AC
GTIN: 824142168073
Manufacturer Website

$249

GAME IN STYLE

Unlimited customization options and packed with exclusive gaming features, MSI PERFORMANCE GAMING motherboards offer the best possible gaming experience.

Powered by FNATIC

We are proud to be a part of the MSI GAMING testing program to help give gamers the best hardware to play games at the highest level.

Fnatic CS:GO Team

MSI GAMING Certified

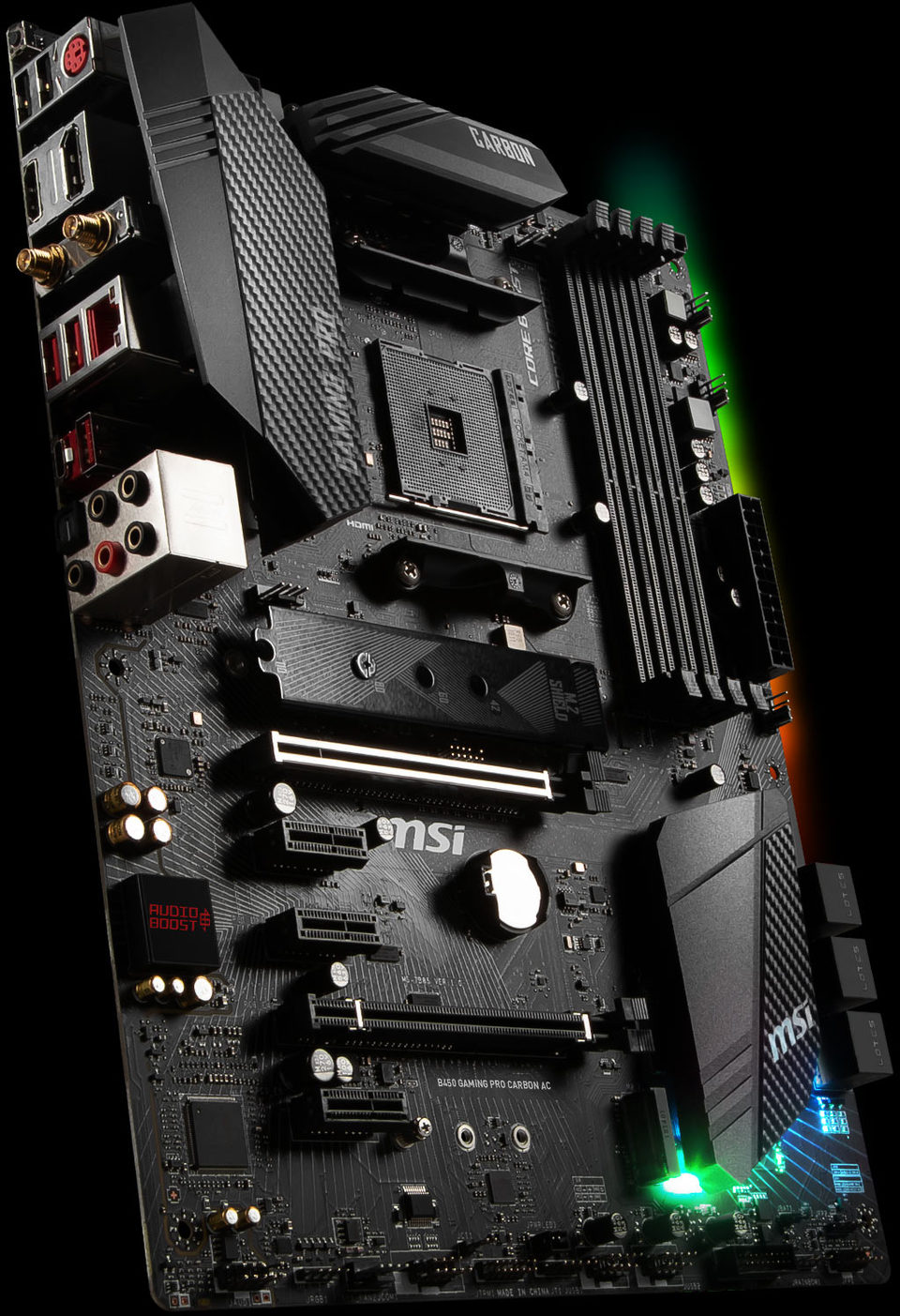

B450 GAMING PRO CARBON AC

PERFORM IN STYLE

  1. BIOS Flashback Button
  2. Intel Wireless / Bluetooth
  3. Intel Gaming LAN
  4. AMD Turbo USB 3.1 Gen2
  5. Golden Audio Jacks with S/PDIF
  1. Extended Heatsink Design
    Leading heatsink design, extended for maximum cooling and performance
  2. Gaming heatsinks with Carbon scheme
    for maximum cooling and performance
  3. DDR4 Boost
    Optimized traces and isolated memory circuitry
  4. M.2 Shield v2
    Thermal enhancement for M.2 devices for best performance
  5. 2x M.2
    NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4, Supports STORE MI
  6. PCI-E Steel Armor
    Protecting VGA cards against bending and EMI
  7. Audio Boost 4 with amplifier
    Optimized gaming audio using best components, with Nahimic3

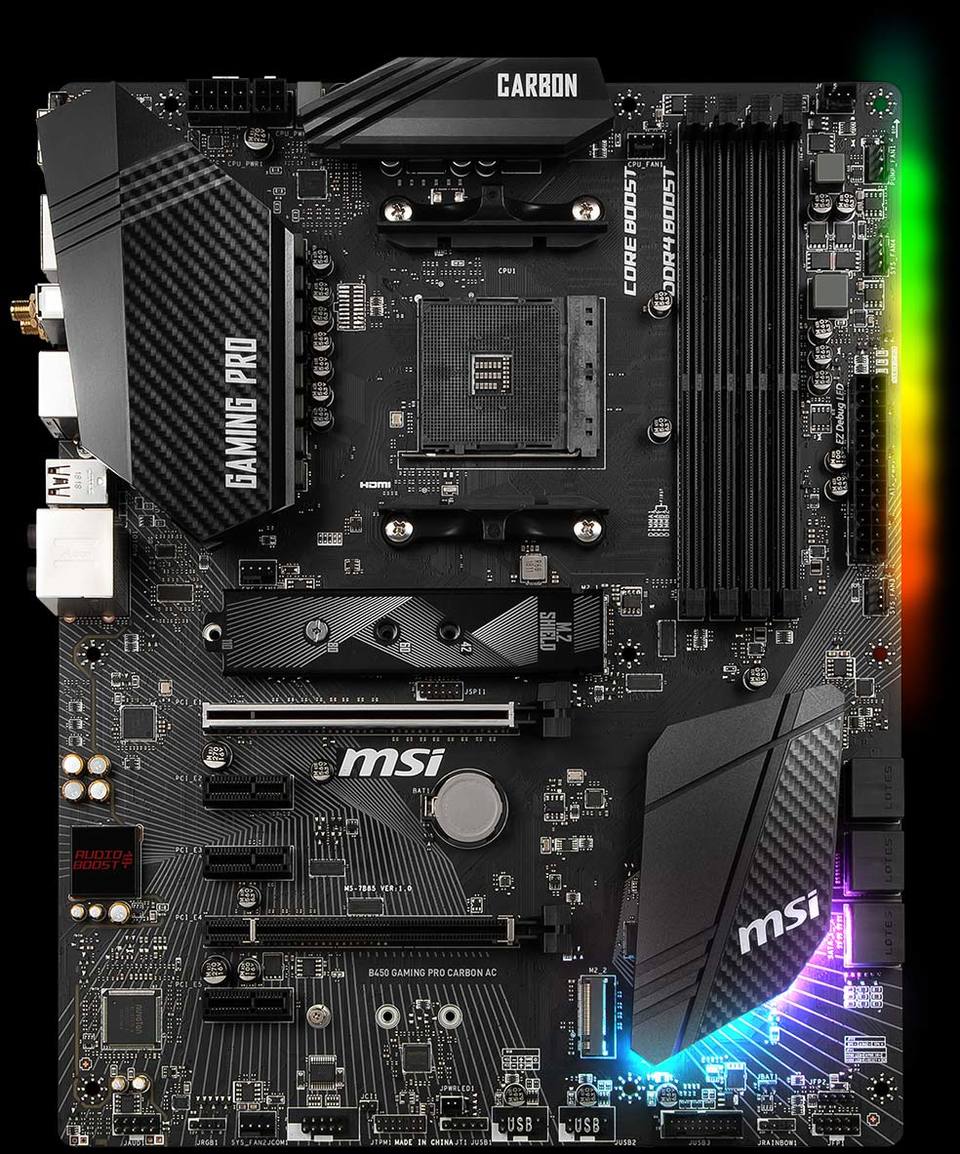

MYSTIC LIGHT

PERSONALIZE YOUR GAMING RIG

Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

  • No animation

  •
  • Breathing

  •
  • Flashing

  •
  • Double Flashing

  •
  • Random

  •
  • Stack

  •
  • Wave / Marquee

  •
  • CPU Tempera
    ture

  •
  • Meteor

  • Lightning

  •
  • Rainbow

  •
  • POP

  •
  • RAP

  •
  • JAZZ

  •
  • Play

  •
  • Movie

  •
  • Off



Extendable

Remote control

Mystic Light sync

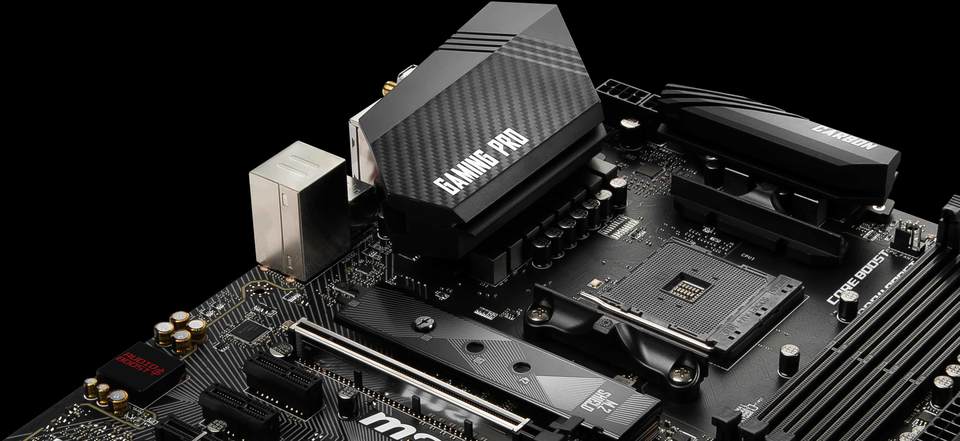

COOLING

STAY COOL WHILE GAMING

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.



6x fan headers

Extended heatsink design

DC/PWM mode

Full fan control

Watercooling ready



GAMING FEATURES

YOUR IN-GAME ADVANTAGE

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

Gaming Hotkey

Gaming Device Port

Game Boost

Multi-GPU

STORAGE

BE THE FIRST ON THE BATTLEFIELD

This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.

M.2 Shield

2x M.2

Boost your storage

STOREMI



VR

IMMERSE YOURSELF INTO VIRTUAL WORLDS

Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.

One click VR

AUDIO

SOUND THAT PULLS YOU INTO THE GAME

Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.

Nahimic 3

Audio Boost 4

Audio amplifier

Audio capacitors



GAMING LAN

DOMINATE THE GAME WITH THE LOWEST LATENCY

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.

Intel® gaming LAN

Bandwidth management

LAN protect

Intel® WiFi

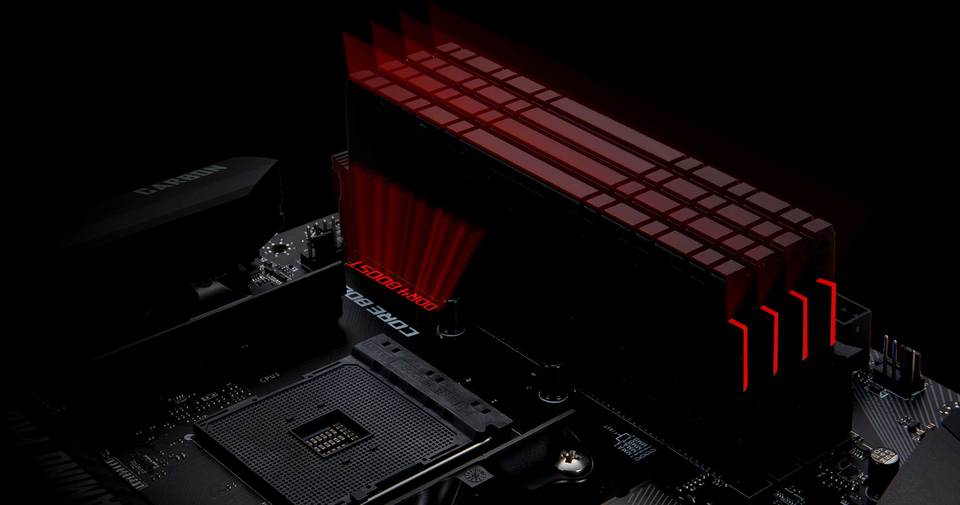

MEMORY

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.



Optimal layout

100% compatibility

A-XMP



TUNING

DESIGNED FOR LIMITLESS TUNING

Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

11 PHASE POWER DESIGN

For power users

Dual CPU Power
b450 gaming pro carbon ac usb

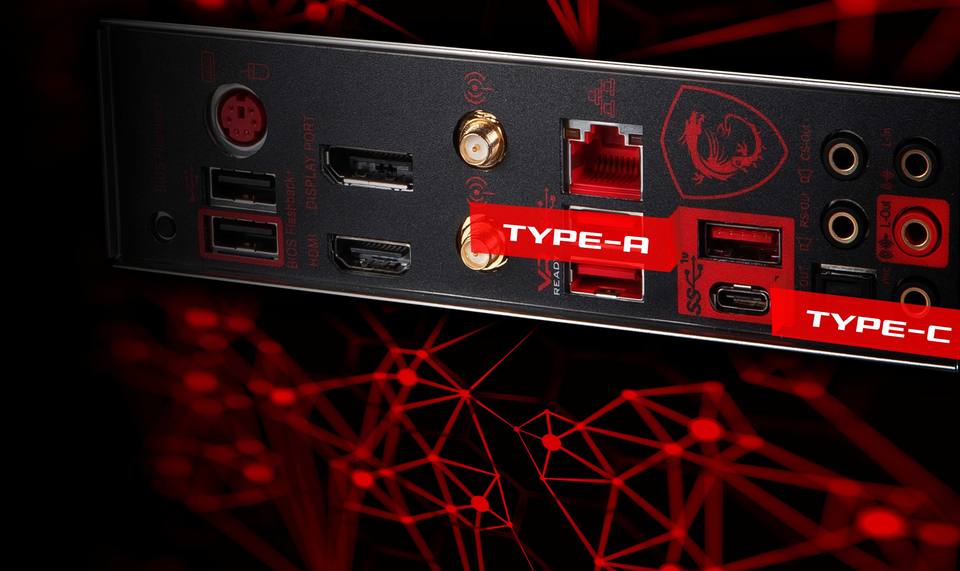

USB

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds up to 10Gb/s!

Double bandwidth USB 3.1

Reversible Type-C connector

Front USB 3.1

Boost your USB

SOFTWARE

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.



X-Boost

Command Center

Live Update

RAMDisk

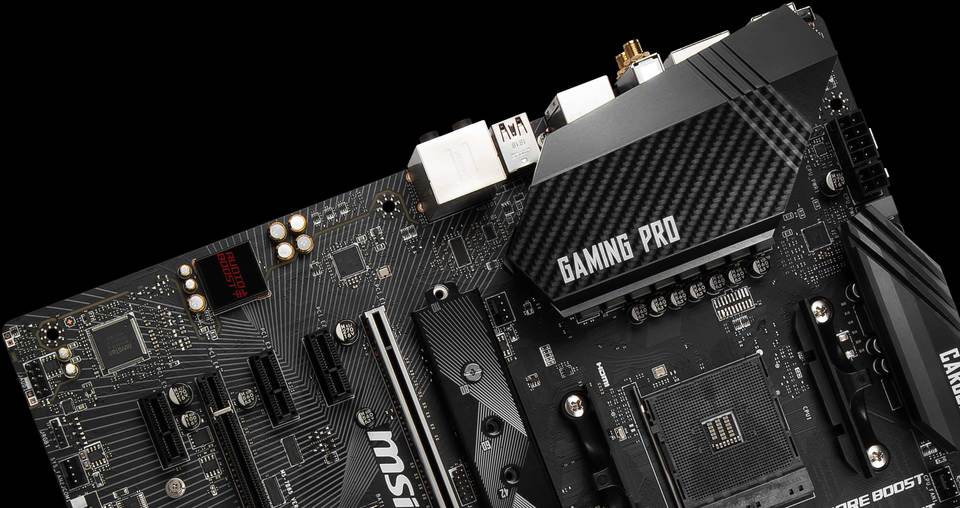

QUALITY & PROTECTION

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.



M.2 Shield

Steel Armor

Gaming Certified

BIOS

A GAMERS' BIOS

We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.











Easy/advanced mode

Convenient search

Hardware monitor

BIOS Flashback+



Intel, the Intel Logo, Intel Inside, Intel Core, and Core Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

© 2018 NVIDIA Corporation. All rights reserved. NVIDIA, GeForce , and NVIDIA Pascal are registered trademarks of NVIDIA Corporation in the U.S and other countries

Brand and product names mentioned are trademarks of their respective owners.

HDMI

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.

PROCESSOR

Supports AMD® RYZEN™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4

See supported processors

CHIPSET

AMD® B450 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 64GB1
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory

SLOTS

  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
    • Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1,2
  • 3 x PCIe 2.0 x1 slots2
  1. PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
  2. PCI_E4 will run x1 speed when installing devices in any PCIe 2.0x1 slot.

MULTI-GPU

  • Ryzen™ Desktop Processors
    • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports1
  • 1 x M.2 slot (M2_2, Key M)1
    • Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices

AMD® CPU

  • 1 x M.2 slot (M2_1, Key M)1
    • Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
  • 2 x SATA 6Gb/s ports1
  1. PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
  2. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe RAID

ONBOARD GRAPHICS

  • 1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz*1
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz2
  1. Only support when using AMD® Ryzen™ with Radeon Vega Graphics Processors
  2. Maximum shared memory of 2048 MB

USB

AMD® B450 Chipset

  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
  • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

  • 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

WIFI & BLUETOOTH

Intel® Dual Band Wireless-AC 9260

  • Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed.
  • Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2, 5.0
  • 1 x M2_3 slot with E key (Wi-Fi mode)

LAN

  • 1 x Intel® I211AT Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Serial Port connector
  • 1 x Clear CMOS jumper
  • 1 x 2pin LED Power connector
  • 2 x 5050 RGB LED strip 12V connectors (JRGB1~2)
  • 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
  • 1 x CORSAIR connector (JCORSAIR1)

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. DisplayPort
  3. Wi-Fi / Bluetooth
  4. LAN Port
  5. HD Audio Connectors
  6. BIOS Flashback Button
  7. USB 2.0 Port
  8. HDMI Port
  9. USB 3.1 Gen1
  10. USB 3.1 Gen2 Type-A + C
  11. Optical S/PDIF OUT

MSI B450 GAMING PRO CARBON AC back panel ports

DIMENSIONS

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

BOX CONTENT

MSI B450 GAMING PRO CARBON AC box content
