Gigabyte S2011-3 ATX GA-X99P-SLI DDR4 Motherboard, BONUS Steelseries Mouse Pad!

Web ID: 18848

Intel Socket 2011-3, X99 Chipset, 8 x Quad Channel DDR4 sockets (up to 128GB), 4 x PCIe 3.0/2.0 x16 (2 x16, 2 x8), 2 x PCIe x1, Supports AMD 4-Way CrossFireX, NVIDIA 4-Way SLI, 10 x SATA 6Gb/s, RAID 0, 1, 5, 10, 1 x M.2 PCIe, 1 x SATA Express, Gigabit LAN, 1 x Thunderbolt 3, 1 x Displayport IN (Video Card required), 1 x USB 3.1 Type-A, 1 x USB 3.1 Type-C, 7 x USB 3.0 (3 via back panel, 4 via internal header), 8 x USB 2.0 (4 via back panel, 4 via internal header), 7.1 Channel Audio with Optical Out, ATX Form Factor, BONUS SteelSeries 63004 QcK Gaming Mouse Pad PN 63004 CASH PRICE
GTIN: 889523003718
Warranty: 3 Year
Manufacturer Website

$379SAVE $30
Support for DDR4 XMP up to 3400MHz
DDR4 memory modules are available at a stock frequency of 2133MHz, but memory vendors encode XMP profiles which can automatically modify the frequency and timings of the supported memory modules to work in par with your CPU. With the X99 Series, GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 3400MHz.

What is XMP?
The synchronization of the memory modules with the CPU is crucial for good performance of your system. DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

* XMP Profile support may vary depending on memory module. Please refer "Memory Support List" for more information.




GIGABYTE Ultra Durable ™ Motherboards

The GIGABYTE GA-X99P-SLI motherboard supports the latest Intel® Core™ i7 Extreme Edition processors and quad channel DDR4 memory. Designed to fulfill the needs of the high-end desktop segment, the X99P-SLI is the ultimate motherboard for users wanting long lasting quality, unrivaled performance, cutting edge features and great looks that complement any system build.


GIGABYTE X99P-SLI World's First Intel® Thunderbolt™ 3 Certified X99 Motherboard
The GIGABYTE X99P-SLI motherboard is the world's first X99 motherboard to be certified to support Thunderbolt™ 3. This gives enthusiasts that need the tried-and-true horsepower and reliability of the X99 chipset access to the world’s fastest connectivity protocol. Powered by Intel’s own Thunderbolt 3 controller, the new Thunderbolt 3 protocol is available over a USB Type-C™ connector on the back I/O of select GIGABYTE motherboards including the X99P-SLI. Bringing an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation!


Support for Thunderbolt™ 3 on the GIGABYTE GA-X99P-SLI motherboard opens up a world of possibilities for enthusiasts or professionals using the X99 chipset. With the unmatched bandwidth that Thunderbolt™ 3 provides, enthusiasts can use new devices such as discrete GPU boxes, external quad M.2 drives, or U.2 expansion drives.

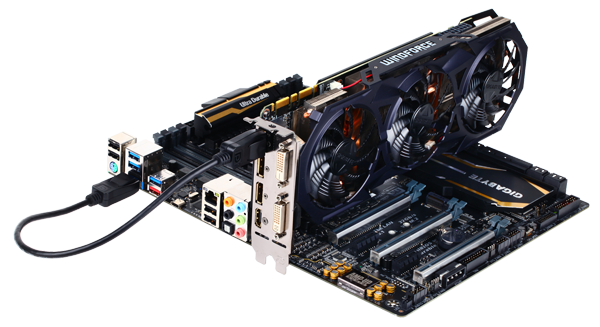

One of the main advantages of Thunderbolt™ 3 is its ability to carry a video signal, but as X99 platforms don’t have a GPU integrated in the CPU, the Thunderbolt controller needs to link with a discrete graphics card. In order to solve this conundrum, GIGABYTE designed the GA-X99P-SLI with a DisplayPort input on the back I/O allowing users to pair their system to a monitor with a Type-C connector (the required cables to connect the graphics card to Thunderbolt controller are bundled with the board).


The packing includes Two cables for building Thunderbolt™ 3 function:
* DisplayPort to mini-DisplayPort
* DisplayPort to DisplayPort





Daisy-chain Multiple Devices
With a single wire, users can now daisy-chain up to 6 devices via Thunderbolt 3, including a monitor with all the GPU power from the discrete graphics card to display high frame rate games at max settings or render 3D models in a flash.
Compatibility may vary according to system configuration and device specifications.


The Intel® USB 3.1 controller utilizes 4 PCIe Gen3 lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.


Connecting the Future - USB Type-C™:
The World's Next Universal Connector
Reversible USB Type-C™ with USB 3.1
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.

* Display feature may vary by model.





Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for PCIe NVMe SSD devices.



* Theoretical Bandwidth, M.2 Bandwidth may vary by CPU model.



Industry Leading Ultra Durable™ PCIe Metal Shielding
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.




* The above photos are for reference only.



LED Trace Path with Multi-Color Choices
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the LED trace path lighting. A total of 7 colors are available to make your system appearance unique!


Performance

Genuine All Digital Power Design
GIGABYTE X99 series motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel® Core™ i7 Extreme Edition CPUs.

IR Digital PWM & IR PowIRstage® ICs
This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.

CPU
  1. Support for Intel® Core™ i7 processors in the LGA2011-3 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® X99 Express Chipset
Memory
  1. 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. 4 channel memory architecture
  3. Support for DDR4 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
  6. Support for RDIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
(Please refer "Memory Support List" for more information.)
Graphics Intel® Thunderbolt™ 3 Controller:
  1. 1 x Intel® Thunderbolt™ 3 connector, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.2 version.
Audio
  1. Realtek® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.
  2. 2 x PCI Express x16 slots, running at x8 (PCIE_3/PCIE_4)
    * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.
    * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode.
    (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
  3. 2 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
* The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration."
Storage Interface Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2/x1 SSD support)
  2. 1 x SATA Express connector
  3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
  4. SATA connectors support for RAID 0, RAID 1, RAID 5, and RAID 10
Chipset:
  1. 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
    (An operating system installed on the SATA3 0~5 ports cannot be used on the sSATA 0~3 ports.)
USB Chipset+Intel® Thunderbolt™ 3 Controller:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel
Chipset+Renesas® USB 3.0 Hub:
  1. 3 x USB 3.0/2.0 ports on the back panel
Chipset:
  1. 4 x USB 3.0/2.0 ports (available through the internal USB headers)
  2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x PCIe power connector
  4. 1 x M.2 Socket 3 connector
  5. 1 x SATA Express connector
  6. 10 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 1 x water cooling fan header (CPU_OPT)
  9. 3 x system fan headers
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x S/PDIF Out header
  13. 2 x USB 3.0/2.0 headers
  14. 2 x USB 2.0/1.1 headers
  15. 1 x Trusted Platform Module (TPM) header
  16. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort In port
  3. 1 x USB Type-C™ port, with USB 3.1 support
  4. 1 x USB 3.1 Type-A port (red)
  5. 3 x USB 3.0/2.0 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    EZ Setup
    Fast Boot
    Cloud Station
    ON/OFF Charge
    Smart TimeLock
    Smart Recovery 2
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. cFosSpeed
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
