Gigabyte S1151 E-ATX GA-Z170X-SOC FORCE DDR4 Motherboard, BONUS Steelseries Mouse Pad!

Web ID: 18845

Intel Socket 1151, Intel Z170 Express Chipset, 4 x DDR4 Memory Slots, 4 x PCIe x16 (2 x16, 2 x8) slots, 4-Way NVIDIA SLI, 4-Way AMD Crossfire, 3 x PCIe x1 slots, 3 x M.2 SATA/PCIe, 3 x SATA Express, 8 x SATA 6Gbps, 1 x USB 3.1 Type C, 1 x USB 3.1, 9 x USB 3.0 (5 via Back panel, 4 via internal header), 8 x USB 2.0 (2 via back panel, 2 ports onboard, 4 via internal header), RAID 0, 1, 5, 10, Gigabit LAN, DVI, HDMI, Mini DisplayPort, 7.1 channel audio with optical out, E-ATX Form Factor, BONUS SteelSeries 63004 QcK Gaming Mouse Pad PN 63004 CASH PRICE
GTIN: 889523002490
Warranty: 3 Year
Manufacturer Website

$579

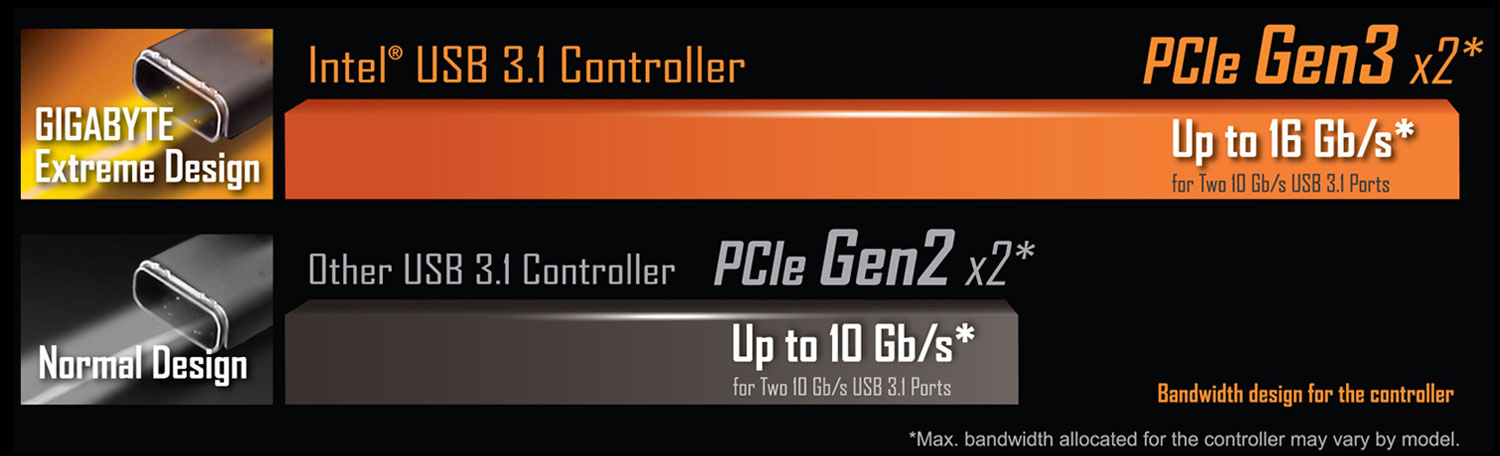

The Intel® USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16Gb/s, which means you have extra bandwidth to take full control of the 10Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.



Connecting the Future - USB Type-C™:
The World's Next Universal Connector
Reversible USB Type-C™ with USB 3.1
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.1 controller, this little port provides the best USB Type-C™ experience possible.

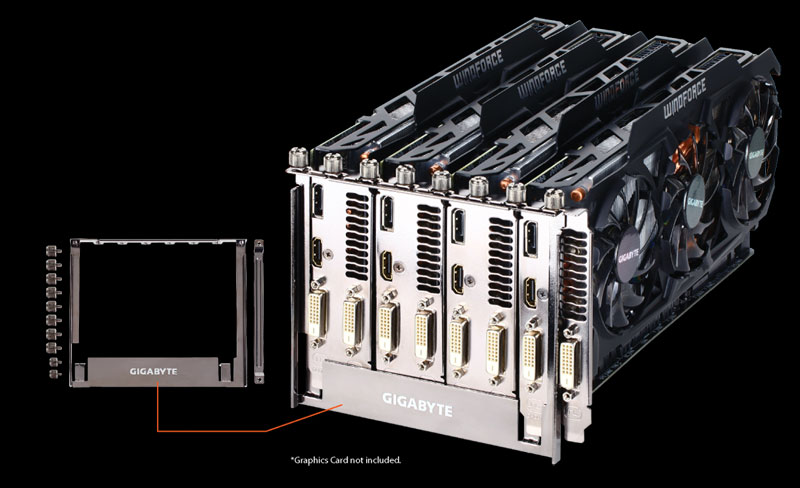

Extreme 4-Way SLI™/ CrossFire™ Multi-Graphics Support with OC Brace
The GIGABYTE Z170X-SOC Force motherboard features optimized support for NVIDIA SLI™ and AMD CrossFire™ in 4 way configuration setups. This extreme design is optimized for overclockers with the innovative OC Brace to stabilize the graphics cards without the need of a system case, ensuring their proper connectivity to the motherboard.

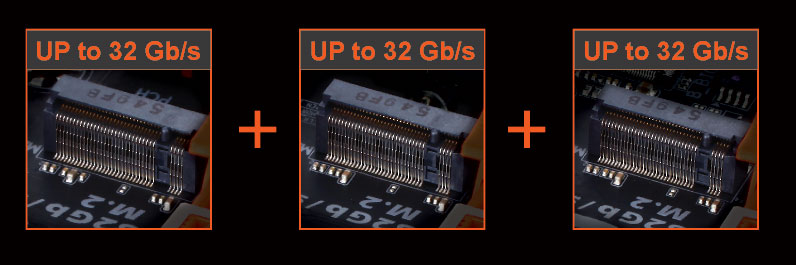

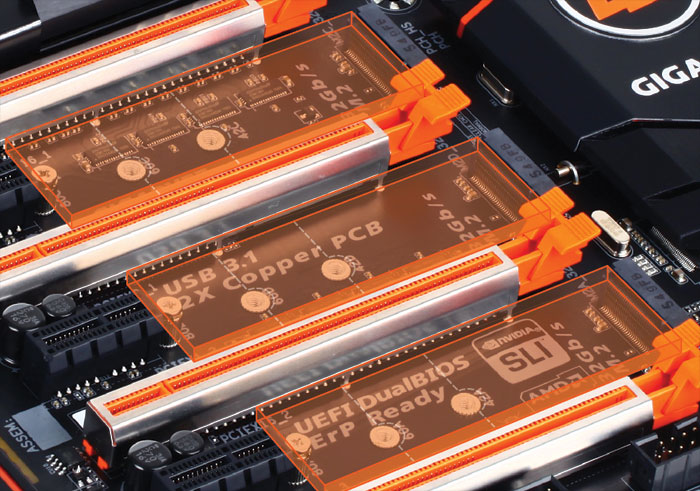

Triple PCIe Gen3 x4 M.2 Connectors
With three PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the triple M.2 provides an ideal storage solution as it also supports RAID modes.

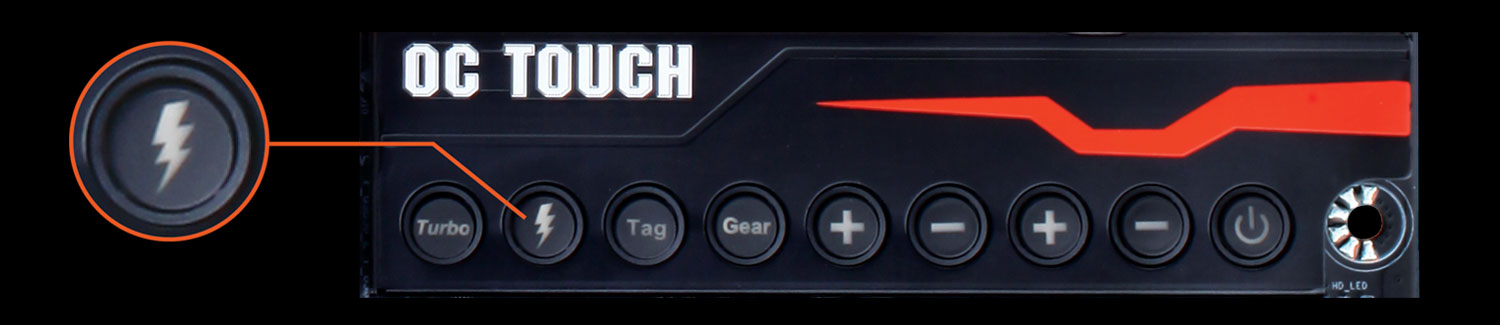

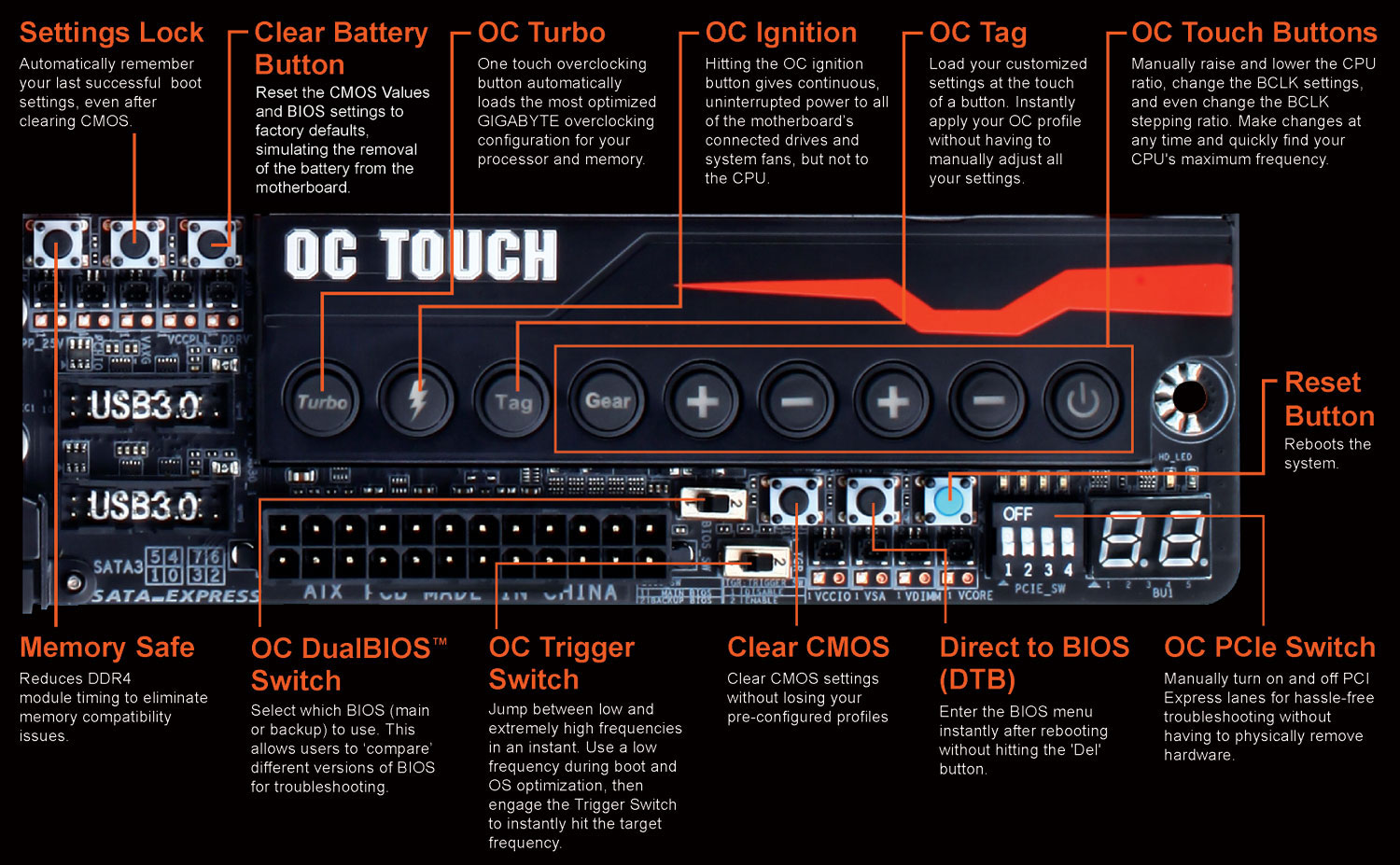

Exclusive OC Touch with Metal Shielding Design
GIGABYTE OC Touch includes a range of hardware overclocking buttons directly on the motherboard, making overclocking on the fly extremely fast and easy.




OC Ignition
OC Ignition maintains power to the motherboard and connected components while the system is shut down. This means that system fans will continue to provide airflow in cold bug situations, while i-RAM drive users will not lose installed data. OC Ignition also allows users to pre-test water cooling setups, and allows case mod demonstrations without having to turn on the PC.
• Fans continue to provide airflow in cold bug situations
• Perfect for pre-testing water-cooled system setups
• Case mod demonstrations without having to turn on the PC
• Retains i-RAM data

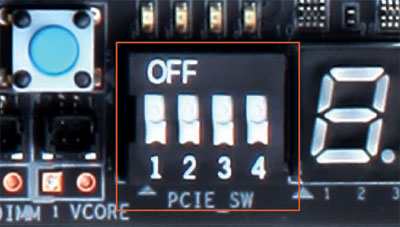

OC PCIe Switch
Overclockers can manually turn on or off each installed PCIe lane of the motherboard, allowing users to disable individual graphics cards without physically removing them. This is especially useful when overclocking on LN2 and water cooled systems.

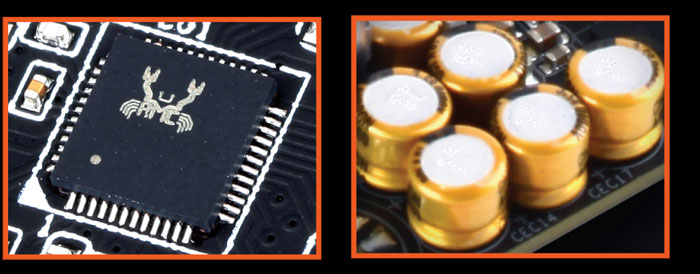

115dB High Definition Audio Design
The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

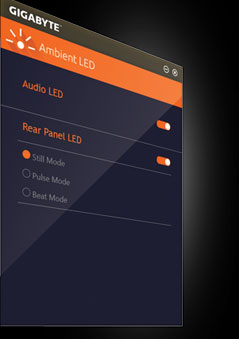

Ambient LED
LED lighting for the audio guard path provides a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.


OC PEG
OC PEG adds auxiliary power to the PCIe slots of your motherboard, improving system stability in extreme configurations. This is especially useful in power-hungry 4-way graphics configurations.



OC Connect

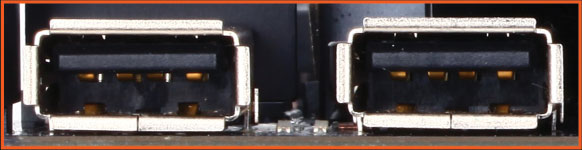

OC Connect positions two USB connectors on the near side of the motherboard facing the overclocker. This makes it easier to save data, flash the BIOS or install software in open bench testing platforms whether for extreme overclocking or simply pretesting the PC before final component installation inside a case scenarios where accessing the rear panel I/O can be an inconvenience.

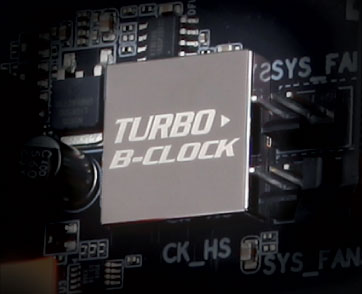

Turbo B-Clock
Built-in Advanced Performance Tuning IC

Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

*Turbo B-Clock overcloking range may vary according to CPU capabilities .

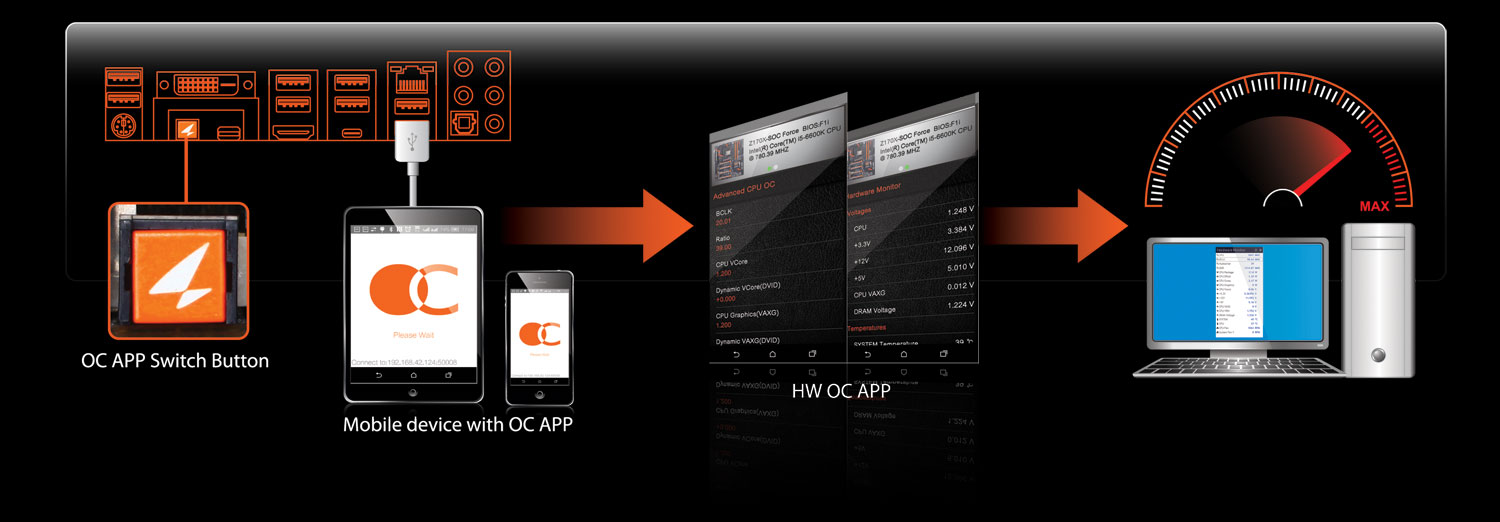

GIGABYTE HW OC APP

With the HW OC APP, users now have the opportunity to overclock their system from a mobile device at the BIOS level without the need to leave their ongoing session. Using Android or Apple mobile devices, the HW OC APP can help you change the CPU frequency as well as an array of voltages to your desire in order to achieve the best performance on the go.





How HW OC APP Works:
• Download the HW OC APP to your mobile device and plug it to your system via the dedicated USB port.
• Turn on USB Tethering on your mobile device and press the OC APP Switch Button on the back panel of the Z170X-SOC Force.
• Change the available values to overclock your system!

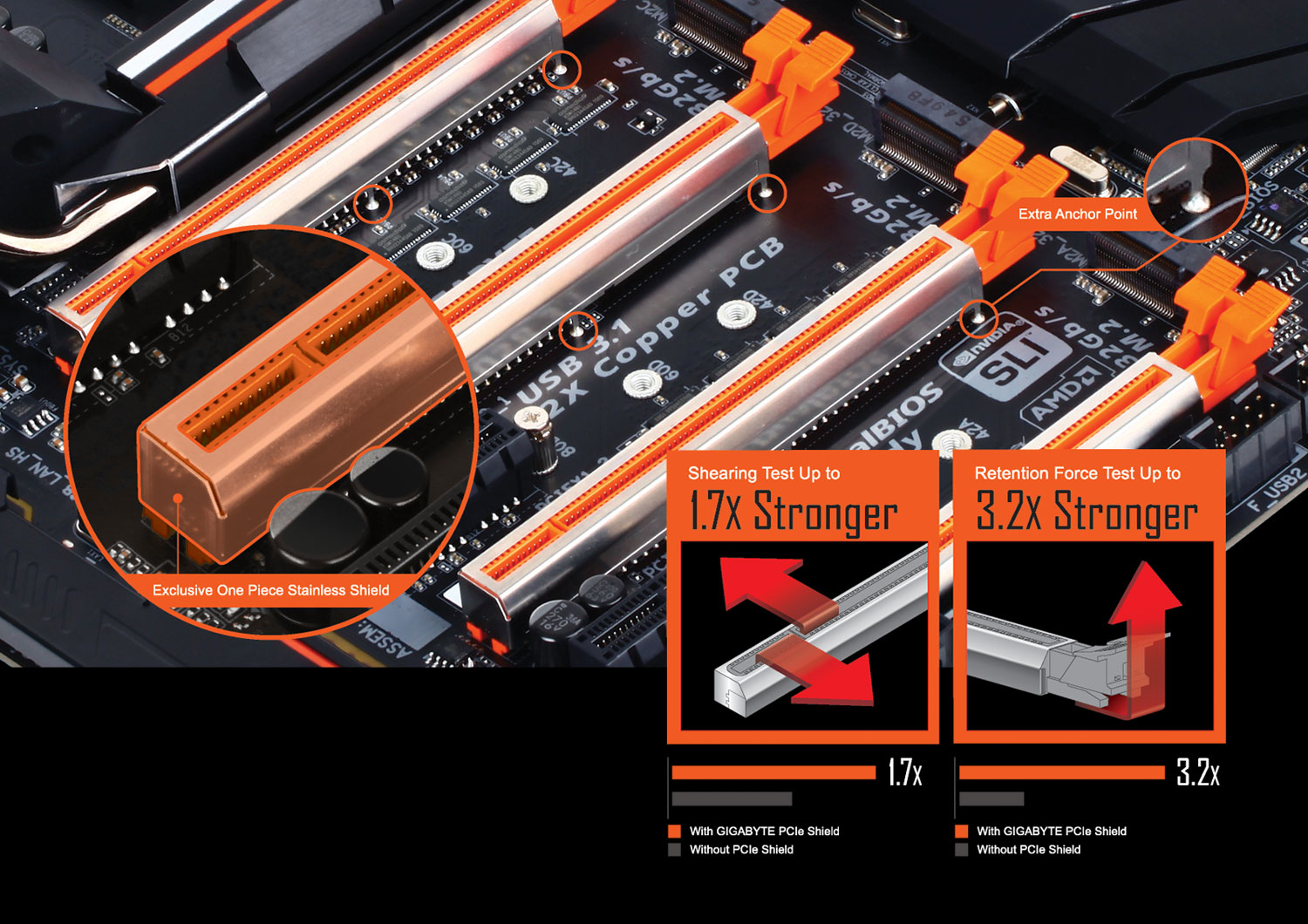

Industry Leading Ultra Durable™ PCIe Metal Shielding
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.


Intel® GbE LAN with cFosSpeed
The Intel® Gigabit LAN with cFosSpeed features advanced technology to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.

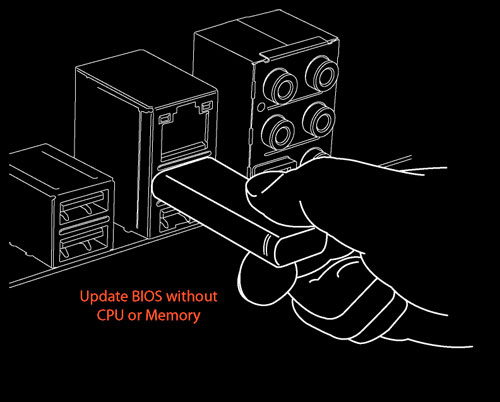

Q-Flash Plus
GIGABYTE Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or Memory needing to be installed.

Updating your BIOS on your GIGABYTE motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your GIGABYTE Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. An LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.

* USB thumb drive not included.


22 Phases Digital Power Delivery Design
For its 100 series motherboards, GIGABYTE features a 22 phase power delivery design equipped with 4th gen. IR® digital power controllers and 3rd gen. PowIRstage® ICs featuring Isense technology, which provides more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.
CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z170 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 3866(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x Mini-DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
  2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
    * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
  3. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
Storage Interface Chipset:
  1. 3 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  2. 3 x SATA Express connectors
  3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-9 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
ASMedia® ASM1061 chip:
  1. 2 x SATA 6Gb/s connectors (SATA3 6~7), supporting AHCI mode only??
USB Chipset+Intel® USB 3.1 Controller:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 port on the back panel
Chipset:
  1. 5 x USB 3.0/2.0 ports on the back panel
  2. 8 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports onboard, 4 ports available through the internal USB headers)
Chipset+Renesas® USB 3.0 Hub:
  1. 4 x USB 3.0/2.0 ports (available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x OC PEG Power Connector
  5. 3 x SATA Express connectors
  6. 8 x SATA 6Gb/s connectors
  7. 3 x M.2 Socket 3 connectors
  8. 1 x CPU fan header
  9. 1 x water cooling fan header (CPU_OPT)
  10. 6 x system fan headers
  11. 1 x I/O shield audio LED power connector
  12. 1 x Thunderbolt™ add-in card connector
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x S/PDIF Out header
  16. 2 x USB 3.0/2.0 headers
  17. 2 x USB 2.0/1.1 headers
  18. 2 x USB 2.0/1.1 ports
  19. 1 x Trusted Platform Module (TPM) header
  20. 1 x serial port header
  21. 1 x Clear CMOS jumper
  22. 1 x power button
  23. 1 x reset button
  24. 1 x Clear CMOS button
  25. 1 x Gear button
  26. 1 x OC Tag button
  27. 1 x OC Trigger switch
  28. 1 x CPU BCLK Down button
  29. 1 x CPU BCLK Up button
  30. 1 x CPU Ratio Down button
  31. 1 x CPU Ratio Up button
  32. 1 x Settings Lock button
  33. 1 x Direct to BIOS button
  34. 1 x Memory Safe button
  35. 1 x OC PCIe switch
  36. 1 x OC Ignition button
  37. 1 x Clear Battery button
  38. 1 x DualBIOS switch
  39. 1 x BIOS switch
  40. 1 x onboard voltage measurement module
Back Panel Connectors
  1. 2 x USB 2.0/1.1 ports
  2. 1 x PS/2 keyboard/mouse port
  3. 1 x DVI-D port
  4. 1 x OCPSW button
  5. 1 x Mini-DisplayPort
  6. 1 x HDMI port
  7. 5 x USB 3.0/2.0 ports
  8. 1 x USB Type-C™ port, with USB 3.1 support
  9. 1 x USB 3.1 port
  10. 1 x RJ-45 port
  11. 1 x optical S/PDIF Out connector
  12. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. Support for Q-Flash Plus
    * The USB flash drive used must be a USB 2.0 flash drive.
  5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
  5. Support for GIGABYTE HW OC
    * Please download the app from Google Play or App Store to your smart phone/tablet device.
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. cFosSpeed
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. E-ATX Form Factor; 30.5cm x 26.4cm
Box Contents
  1. GA-Z170X-SOC Force motherboard
  2. Motherboard driver disk
  3. User's Manual
  4. Quick Installation Guide
  5. Four SATA cables
  6. I/O Shield
  7. One 2-Way SLI bridge connector
  8. One 3-Way SLI bridge connector
  9. One 4-Way SLI bridge connector
  10. One 2-Way CrossFire bridge connector
  11. Eight voltage measurement cables
  12. One OC Brace
  13. One G Connector
  14. One pack of back I/O dust covers
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
