Gigabyte RTX2080Ti 11GB Windforce PCIe Video Card PN GV-N208TWF3-11GC, BONUS Battlefield V AND Anthem Games!*
Web ID: 24953
Powered by GeForce RTX 2080 Ti, Integrated with 11GB GDDR6 352-bit memory interface, PCIe x16, 3 x DisplayPort (1.4), 1 x HDMI (2.0b), 1 x USB Type-C (support VirtualLink), Quad View, Multi-View. WINDFORCE 3X Cooling System with alternate spinning fans, RGB Fusion 16.7M customizable color lighting, Metal Back Plate. Core Clock 1545 MHz, BONUS Available (Conditions Apply) Check Product Webpage for Details
Manufacturer Warranty: 3 Year
Manufacturer PN: GV-N208TWF3-11GC
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 6 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
better heat dissipation
worse heat dissipation

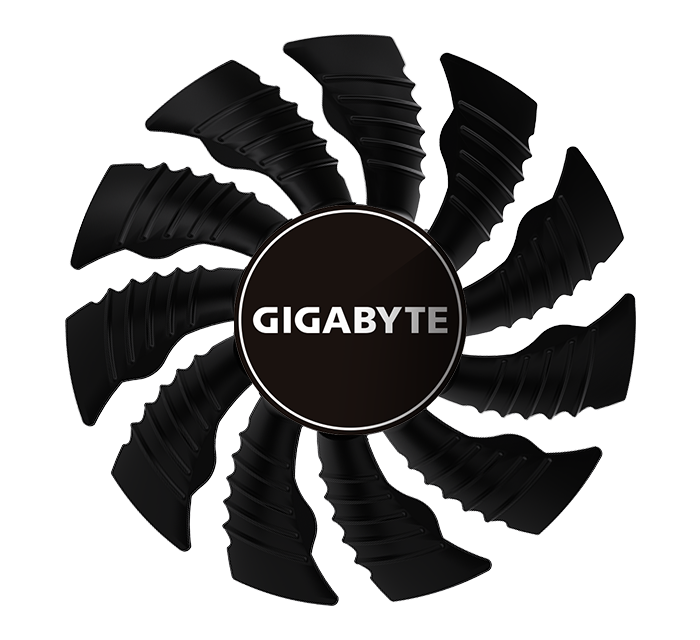

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
The composite heat-pipes combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
game in style
Smoothly cycles through all colors
Extreme durability and overclocking
The graphics card uses the 8+3 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
Light on :
power cable disconnected
Light off :
stable power supply
abnormal power supply

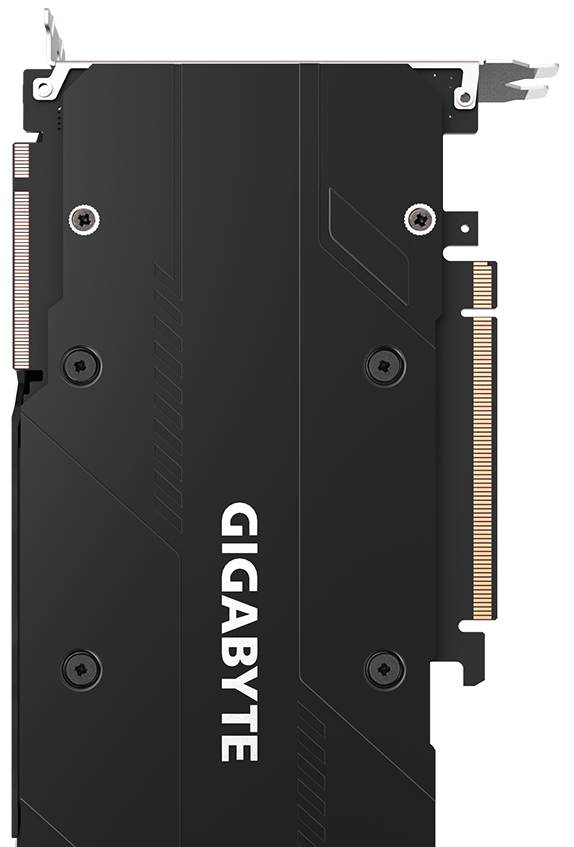

Protection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
NVIDIA NVLinkTM Support
Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming. You can also adjust the light effect on the bridge with the AORUS Engine.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
- Graphics ProcessingGeForce RTX™ 2080 Ti
- Core Clock1545 MHz
- CUDA® Cores4352
- Memory Clock14000 MHz
- Memory Size11 GB
- Memory TypeGDDR6
- Memory Bus352 bit
- Memory Bandwidth (GB/sec)616 GB/s
- Card BusPCI-E 3.0 x 16
- Digital max resolution7680x4320@60Hz
- Card sizeL=280.35 W=116.45 H=40.24 mm
- PCB FormATX
- Recommended PSU750W
- Power Connectors8 Pin*2
- OutputDisplayPort 1.4 *3
HDMI 2.0b *3
USB Type-CTM(support VirtualLinkTM) *1
- SLI support2-way NVIDIA NVLINKTM
