Gigabyte RTX2070 SUPER 8GB WINDFORCE OC 3X PCIe GV-N207SWF3OC-8GD Video Card

Web ID: 26655

Powered by GeForce RTX 2070 SUPER. Integrated with 8GB GDDR6 256-bit memory interface. WINDFORCE 3X Cooling System with alternate spinning fans. Extreme Durability and Overclocking. Protection Metal Back Plate. Core Clock 1785 MHz (Reference Card: 1770 MHz). 1 x HDMI 2.0b, 3 x DisplayPort ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: GV-N207SWF3OC-8GD
GTIN: 889523019122
Manufacturer Website

$649SAVE $350

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3x 82mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

ALTERNATE SPINNING

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

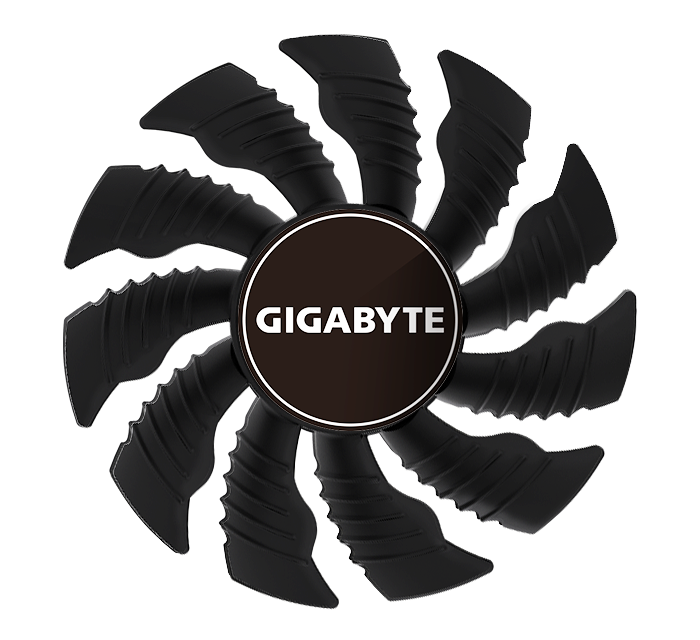

ALTERNATE SPINNING




gigabyte rtx2070 super 8gb windforce oc 3x pcie gv-n207swf3oc-8gd video card



Smooth Airflow





better heat dissipation

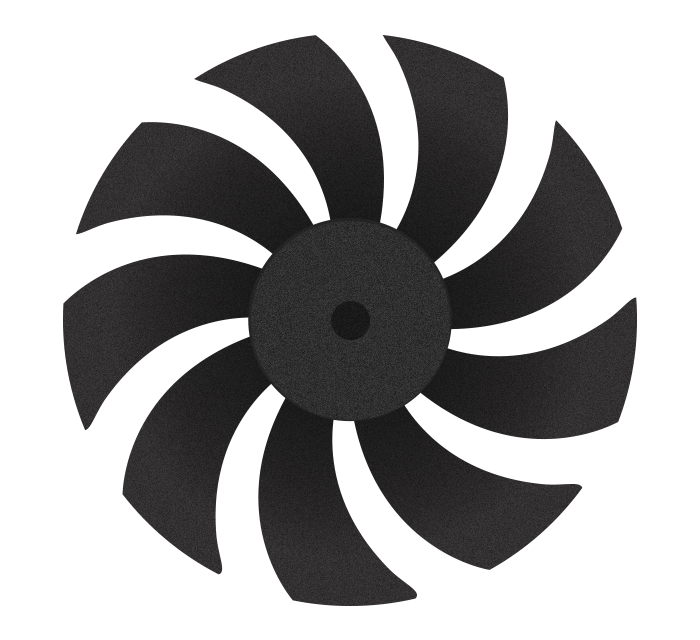

STANDARD SPINNING





gigabyte rtx2070 super 8gb windforce oc 3x pcie gv-n207swf3oc-8gd video card



Turbulent Airflow





worse heat dissipation

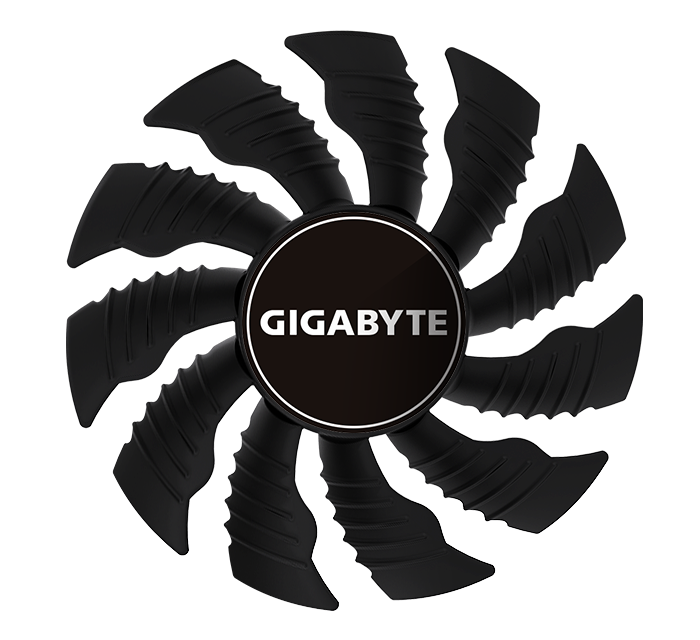

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE

The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.



BUILT STRONG

Extreme durability and overclocking

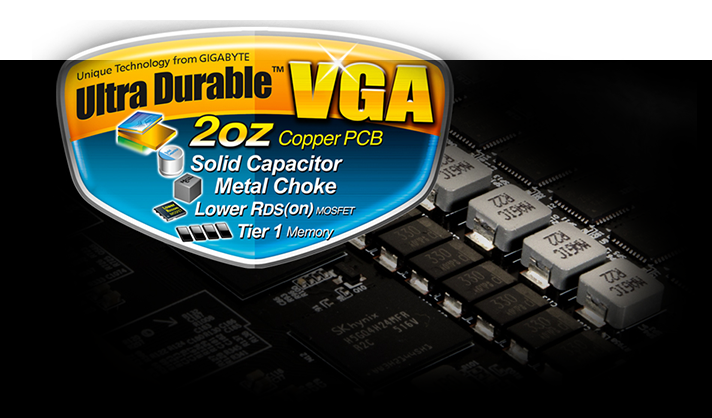

The graphics card uses the better power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

POWER INDICATORS

The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

Light on :
power cable disconnected

Light off :
stable power supply

Blinking :
abnormal power supply

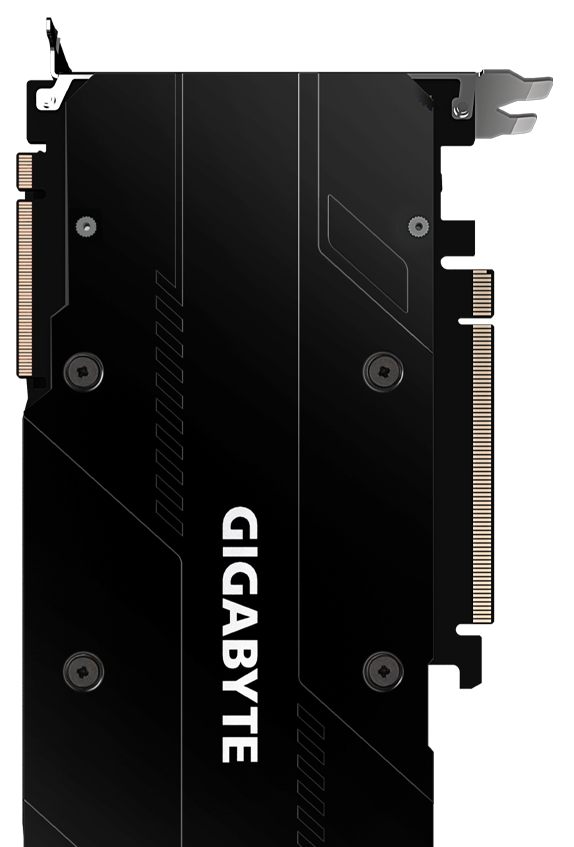

Protection Metal Back Plate

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

NVIDIA NVLink TM Support

Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming. You can also adjust the light effect on the bridge with the AORUS Engine.

HEADING TO AORUS NVLINK™ BRIDGE (3-slot)

HEADING TO AORUS NVLINK™ BRIDGE 4-Slot

IN TOTAL COMMAND

The interface and functionality of the software is subject to each model.

AORUS Engine

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

  • Graphics Processing
    GeForce® RTX 2070 SUPER™
  • Core Clock
    1785 MHz (Reference Card: 1770 MHz)
  • RTX-OPS
    52
  • CUDA® Cores
    2560
  • Memory Clock
    14000 MHz
  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Bus
    256 bit
  • Memory Bandwidth (GB/sec)
    448 GB/s
  • Card Bus
    PCI-E 3.0 x 16
  • Digital max resolution
    7680x4320@60Hz
  • Multi-view
    4
  • Card size
    L=286 W=114 H=50 mm
  • PCB Form
    ATX
  • DirectX
    12
  • OpenGL
    4.5
  • Recommended PSU
    650W
  • Power Connectors
    8 Pin*1, 6 Pin*1
  • Output
    DisplayPort 1.4 *3
    HDMI 2.0b *1
  • SLI support
    2-way NVIDIA NVLINK™
  • Accessories
    1. Quick guide
    2. Driver CD
