Gigabyte AM4 MicroATX GA-AB350M-D3H Motherboard
Web ID: 20822
AMD Ryzen AM4 Socket, B350 Chipset, 4 x DDR4 Memory slots, 2 x PCIe 3.0 x16 (x16, x4) slot, 1 x PCIe x1, 1 x M.2 PCIe/SATA Slots, 6 x SATA 6Gbps, RAID 0, 1, 10, Gigabit LAN, D-Sub (VGA), DVI, HDMI, 2 x USB 3.1 (Gen2) (via back panel), 6 x USB 3.1 (4 via back panel, 2 via internal header), 6 x USB 2.0 (2 via back panel, 4 via internal header), 7.1 Channel High Definition Audio, MicroATX Form Factor. CASH PRICE
Manufacturer PN: GA-AB350M-D3H
Warranty: 3 Year
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

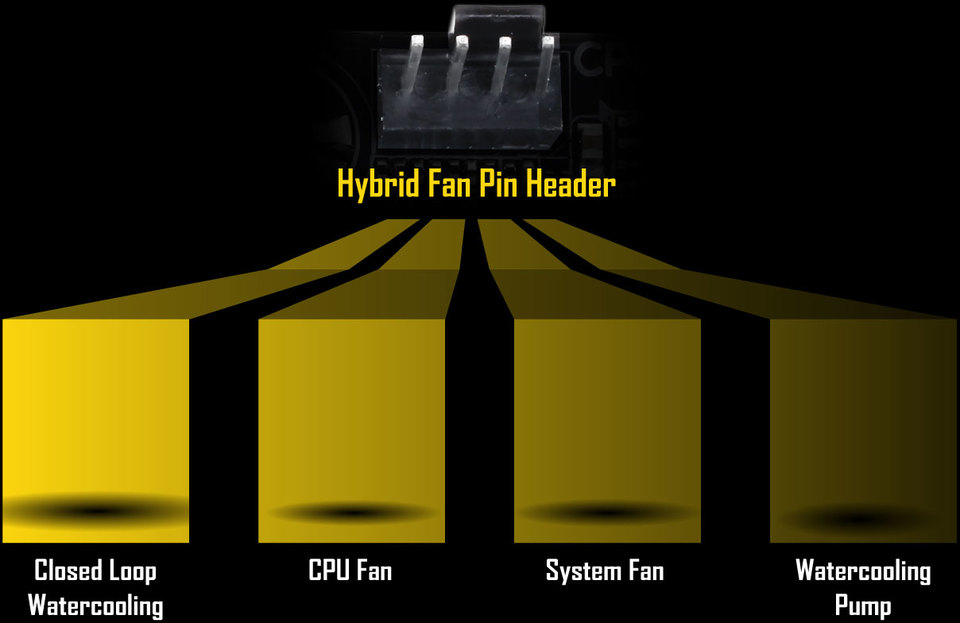

• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).
Customize fan curves based on specific temperatures with the intuitive graphical UI.
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

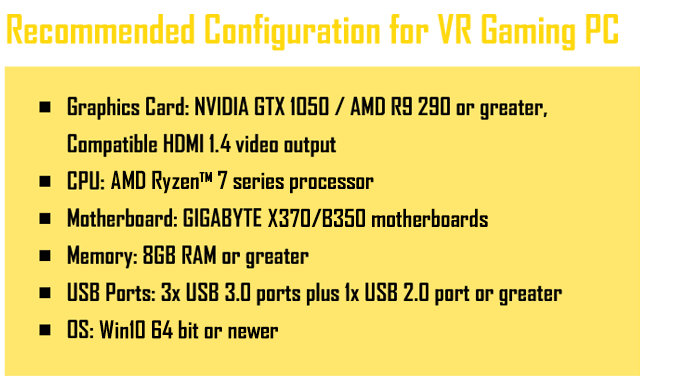

> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.
Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only.
Realtek Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.
Microsoft Windows 10 Home 64bit OEM DVD PN KW9-00139
