ASUS S2066 ATX TUF X299 MARK 1 DDR4 Motherboard

Web ID: 21398

Intel Socket 2066, DDR4 4000MHz (OC), dual M.2, Intel VROC support, Intel Optane memory-ready, dual Intel Gigabit LAN, front USB 3.1 Gen 2 Type-C CASH PRICE
Manufacturer PN: TUF X299 MARK 1
GTIN: 889349774380
Warranty: 3 Year
Manufacturer Website

$485SAVE $84

TUF X299 Mark1

  • TUF Components

  • Thermal Armor

  • 1x USB 3.1 Gen 2
    Type-C port

  • 4x USB 3.1 Gen 1
    Type-A port

  • Dual Intel® Gigabit LAN

  • AURA SYNC

  • PCI Express 3.0
    3 way SLI/CFX Support
    ASUS Safe Slot

  • Audio Features
    · Realtek S1220A Codec
    · Audio Shielding
    · Premium Japanese Audio Capacitors
    · Dedicated Audio PCB Layers
    · DTS HeadphonX

    TUF FortifierTUF Fortifier

  • DIGI+ Power Control & EPU

  • DDR4 4133+ MHz (O.C.) Support

  • Intel® LGA 2066 Socket

  • USB 3.1 Gen 2 Front-panel Connector

  • Intel® X299 Chipset

    Intel X299 Chipset
  • Thermal Armor & PCH Fan

  • 8 x SATA 6Gb/s ports

  • · M.2 Heatsink
    · 32Gb/s M.2 x4 dual mode
    · Intel Optane Memory Ready

  • AURA RGB Header

The Ultimate Force

Unconditionally Tough.
24/7 Reliability.

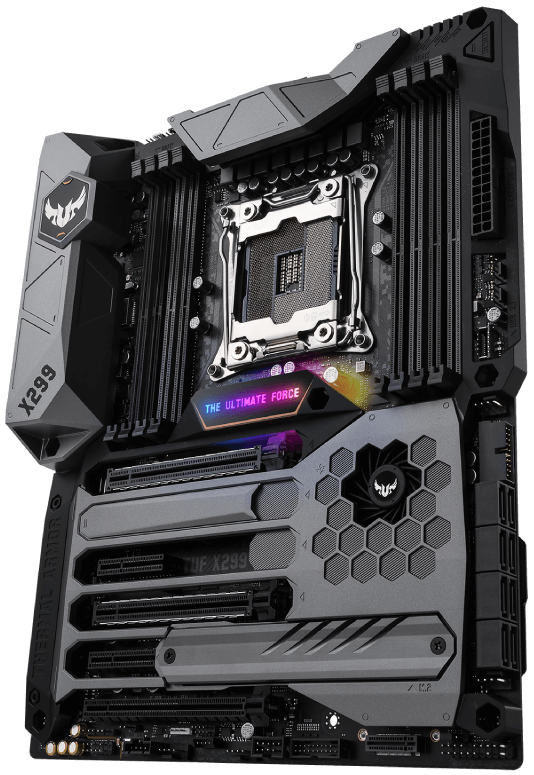

TUF X299 Mark 1 is the durable ATX motherboard made for enthusiasts, modders and gamers who demand reliable performance day in, day out. It's engineered with Industry-leading cooling controls and temperature monitoring, enabling you to build a system that's efficiently cooled and supremely stable. Some of the world's most respected independent testing laboratories have certified TUF components as fit for military use. Every board is subjected to rigorous testing and validation procedures, including warp and drop tests — so you know that TUF X299 Mark 1 will stand up to whatever you throw at it. In fact, we're so confident of the reliability and durability of our products that each and every TUF motherboard is backed by a five-year warranty!*

*Warranty service follows local standards and service policies.

TUF X299 mark1

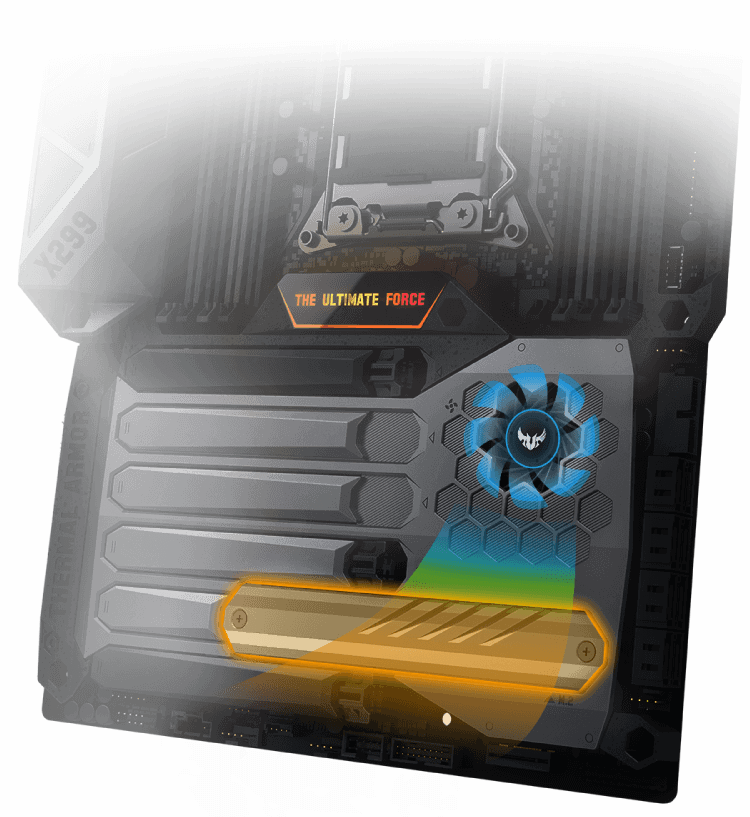

Ultimate Cooling

Thermal Armor and M.2 heatsink

TOTALLY COOL, ACROSS THE BOARD.

TUF X299 Mark 1 has been carefully designed to boost airflow and heat dissipation to keep the temperature of vital components as cool as can be. TUF Thermal Armor puts a fan in the PCH area that directs airflow towards an ultra-efficient M.2 heatsink, slashing SSD temperatures by up to 25°C — and that means optimal storage performance and improved drive longevity.

 thermal armor

TUF ICe

THE TOTAL COOLING COMMANDER

ASUS TUF engineers have forged TUF ICe, a dedicated processor that monitors onboard temperature sensors and fan speeds to provide ultra-accurate cooling in every scenario — whether you're adjusting settings manually or using the automatic one-click optimization via Thermal Radar 3 and TUF Detective 2.



Thermal Radar 3

INSTANT FAN TUNING, COMPLETE SYSTEM COOLING

Our Thermal Radar 3 software allows you to control connected chassis fans, water pumps, AIOs, and even the fans of ASUS graphics cards — all to provide ultimate cooling performance for gaming and productivity. Multiple onboard sensors also enable the temperatures of key components to be monitored in real time, so you can assess and optimize cooling efficiency.

  • Instantly optimize the system's entire cooling profile with a single click.

  • Unleash your PC's full performance potential with the ASUS TurboV Processing Unit (TPU). Besides offering the ability to fine-tune voltages, monitor stats, and adjust overclock parameters, TUF X299 Mark 1 provides additional thermal tuning options – Extreme Tuning and Stress Test — that let you test and optimize system stability and cooling performance.

  • TUF X299 Mark 1 has customizable settings for its 10 fan headers, offering maximum control over your build's cooling and quietness. You can even monitor, manage and control the fans to create your perfect balance between quietness, cooling and performance.

  • With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

  • TUF X299 Mark 1 Thermal Radar 3 fan management feature has been expanded — allowing custom fan control on ASUS graphics cards* as well as case fans.

    * ASUS GTX700 Series and above graphics cards supported.

  • An integrated recorder logs critical voltage readings, temperatures and fan speeds over time – so you can review vital stats and make informed decisions for system settings and optimal operation.

    24/7 reliability

    You demand 24/7 reliability — and we've delivered! TUF motherboards undergo the industry's most punishing tests to ensure they're ready for long-term duty in any environment. In our tests we overheat them, chill them, bend them, shock them and drop them — so you know that your TUF motherboard is certified for 24/7 reliability!



    TUF Fortifier

    IMPROVES RIGIDITY AND COOLING BEHIND THE BOARD

    TUF X299 Mark 1 delivers great strength and cooling via an exclusive TUF Fortifier — a reinforced backplate which adds structural rigidity across the board to ensure the motherboard doesn't buckle under the weight of heavy graphics cards and CPU coolers, minimizing the risk of damaged circuitry from bowing and bending.

    TUF Fortifier also includes a thermal pad that efficiently directs heat away from the VRM and other components — an innovation that reduces operating temperatures by up to 5°C!

    TUF VGA Holder

    USER-FRIENDLY DESIGN

    TUF X299 Mark 1 features a VGA holder that eliminates ugly and potentially damaging graphics card sag by supporting the motherboard to prevent bowing and bending. The VGA holder is crafted from a single piece of strong sheet metal and is able to support up to 15 kg — so it provides serious support for even the heaviest graphic card!

    Dust Defenders

    REPEL DUST, EXTEND LIFESPAN

    TUF X299 Mark 1 has unique Dust Defenders to prevent dust and other airborne particles from entering the motherboard's PCI Express® expansion slots, helping your PC perform in an optimal and stable state for longer.



    Dust Defenders

    SafeSlot

    PROTECT YOUR GRAPHICS CARD INVESTMENT

    SafeSlot* is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

    *Patent pending

    ASUS Safeslot

    ?

    TUF ESD Guards 2

    2X-STRONGER ESD PROTECTION

    ESD Guards 2 protects TUF X299 Mark 1 from damaging electrostatic discharge. ESD Guards 2 is tested to levels that are 2X higher than industry standards. We also perform pin-level* testing at 30%-higher ESD levels than previous TUF standards. Our stringent tests mean greater component longevity for your TUF motherboard!

    * Pin-level testing applies to USB, LAN connectors

    TUF Components

    CERTIFIED FOR TOUGH DUTY

    TUF Chokes

    Certified military-grade TUF chokes offer unbeatable durability in order to maximize the lifespan of your system.

    TUF Capacitors

    +20% temperature tolerance and 5X-longer lifetime

    TUF MOSFETs

    Certified military-grade MOSFETs with lower RDS(on)*

    * Lower RDS(on) results in better power efficiency and reduced heat generation



    5-year warranty guaranteed reliability

    *Warranty service follows local standards and service policies.

    Performance

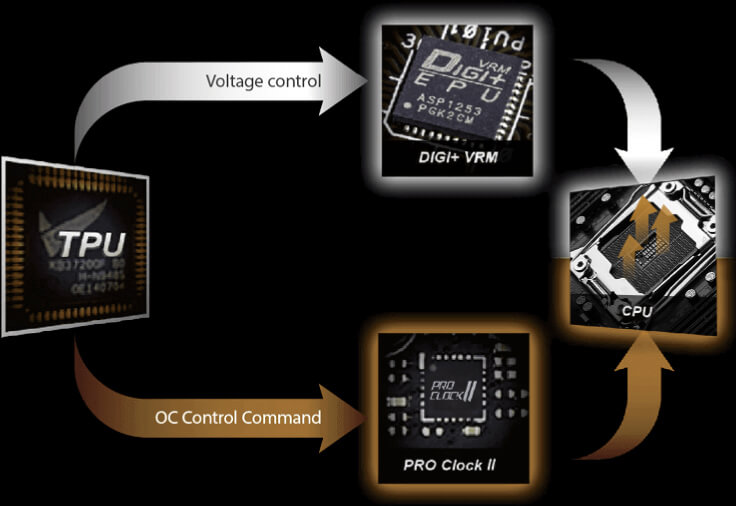

    ASUS Pro Clock II Technology

    DEDICATED DESIGN FOR OVERCLOCKING

    TUF X299 Mark 1 includes a dedicated base-clock (BCLK) generator to extend CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel® Core™ X-series processors.



    *BCLK overclocking range will vary according to CPU capabilities, cooling, motherboard support and tuning options.

    *Testing configuration:
    CPU : Intel® Core™ i7-7740X | Motherboard : TUF X299 Mark 1 | DRAM : G.Skill F4-3200C16Q-16GRKD | Power : Corsair AX1500I | Water-cooling : Corsair H115i

    • Advantages of ASUS Pro Clock II:
    • · Reduced boot time
    • · Lower jitter under extreme conditions for higher overclocks
    • · Increased stability under heavy overclocking

    ASUS T-Topology

    MAKE YOUR MEMORY GO FASTER

    ASUS T-Topology allows memory frequencies that are higher than ever — to 4133MHz and beyond. ASUS-exclusive T-Topology circuit design provides superb memory-overclocking capability to unleash the full power of DDR4 by minimizing coupling noise and signal reflection. Refined manufacturing ensures ultra-consistent quality, minimal crosstalk between custom trace paths, and time-aligned signaling for superior stability and compatibility.

    *Testing configuration:
    CPU : Intel® Core™ i9-7900X | Motherboard : TUF X299 Mark 1 | DRAM : G.Skill F4-3200C16Q-16GRKD | Power : Corsair AX1500I | Water-cooling : Corsair H115i

    TUF Detective 2

    SYSTEM MANAGEMENT AT YOUR FINGERTIPS

    The TUF Detective 2 app connects via Bluetooth and allows you to track information, detect and diagnose errors, or adjust vital system settings from your Bluetooth-enabled smart devices. TUF X299 Mark 1 even comes with a Bluetooth dongle, so you're ready to connect right away!







    Connect with
    Unparalleled Speed

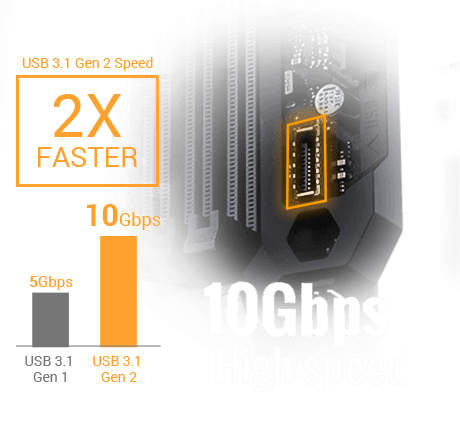

    USB 3.1 Gen 2 front-panel connector

    With reversible USB 3.1 Gen 2 Type-C™ ports and backward-compatible USB 3.1 Gen 2 Type-A™ front-panel connector, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

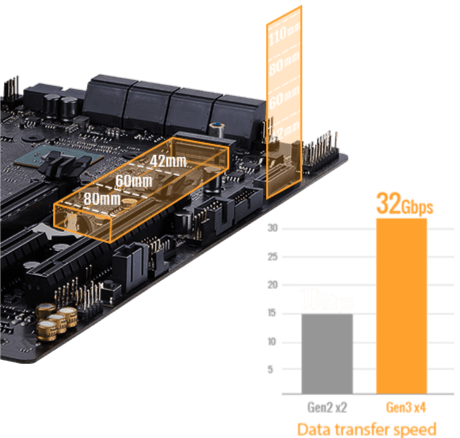

    Speed up with onboard M.2 up to 32Gbps

    With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.

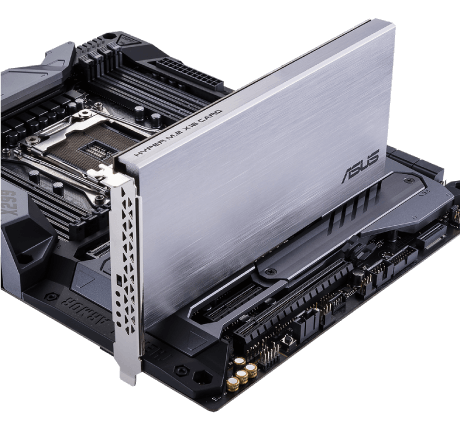

    Intel VROC support

    Unleash the TUF X299 Mark 1 Virtual RAID on CPU (VROC) feature with the addition of an ASUS Hyper M.2 X16 Card, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives — for a total bandwidth of up to 128Gbps. With VROC, you can utilize CPU PCIe lanes to configure a bootable RAID array, eliminating traditional DMI bottlenecks, so your storage transfers aren't held back by other traffic.

    *ASUS Hyper M.2 X16 Card sold separately.

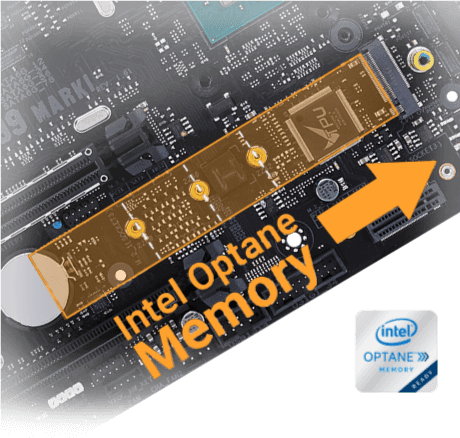

    Intel Optane memory ready

    Intel Optane™ is a revolutionary non-volatile memory technology supported by TUF X299 Mark 1. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

    Dual Intel Gigabit LAN

    MORE THROUGHPUT, LESS CPU USAGE AND GREAT GAMING EXPERIENCES

    Don't let slow networking disrupt your workflow! With dual Intel Gigabit Ethernet connectors, TUF X299 Mark 1 keeps your data moving swiftly and efficiently. With both LAN ports teamed* you'll benefit from increased bandwidth for more speed, automated load balancing for smoother data flows, and instant failover if something should go wrong — so access to your files is always fast, efficient and uninterrupted.



    Dual Intel Gigabit LAN

    Turbo LAN

    NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION

    Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface, and reduces network lag – by up to 1.45X!



    TUF LANGuard

    MILITARY-GRADE LAN PROTECTION

    TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput — protecting the motherboard from lightning strikes and static electricity.

    Outstanding audio

    Outstanding audio

    TUF X299 Mark 1 utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts gain to ensure the optimal volume range for your headphones.

    • AUDIO SHIELDING

      Separates analog/digital signal domains, significantly reducing multi-lateral interference.

    •
    • UNIQUE POP-REDUCING CIRCUIT

      Reduces start-up popping noise to all audio outputs.

    •
    • INTEGRATED AMPLIFIER

      Capable of driving high-impedance headphones, without rolling-off high or low frequencies.

    • DEDICATED CHANNEL LAYOUTS

      Separate layers for left and right channels to guard the quality of the sensitive audio signals.

    •
    • PREMIUM JAPANESE-MADE AUDIO CAPACITORS

      Premium parts provide an immersive sound signature, with exceptional fidelity.

    •
    • DTS HEADPHONE:X

      Experience audio exactly how the artist intended with this incredibly immersive 3D surround-sound technology.

    Outshine the competition

    Aura SyncASUS AURA Synce

    A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs, as well as the LED strips connected to the onboard 4-pin RGB headers* — all easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

    Learn more >

    *Aura RGB-strip header supports standard 5050 RGB LED strips with a maximum power rating of 2A (12V). For maximum brightness, strip length should not exceed 2m.

    Intel CPU and Chipset features

    Intel chipset X299



    INTEL X299 CHIPSET

    The Intel X299 chipset supports LGA 2066-socket Intel Core X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.1 Gen 1 ports, 8 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.

    Intel CORE X-series



    INTEL® CORE™ X-SERIES PROCESSORS FOR LGA 2066 SOCKET

    Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes. Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.

    • CPU

      Intel® Socket 2066 Core™ X-Series Processors
      * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
      * Refer to www.asus.com for CPU support list

    • Chipset

      Intel® X299

    • Memory

      Intel® Core™ X-series Processors (6-core above)
      8 x DIMM, Max. 128GB, DDR4 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
      Intel® Core™ X-series Processors (4-core)
      4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
      * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
      * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

    • Multi-GPU Support

      Supports NVIDIA® Quad-GPU SLI™ Technology
      Supports NVIDIA® 3-Way SLI™ Technology
      Supports NVIDIA® 2-Way SLI™ Technology
      Supports AMD Quad-GPU CrossFireX™ Technology
      Supports AMD 3-Way CrossFireX™ Technology

    • Expansion Slots

      44-Lane CPU-
      3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
      2 x PCIe 3.0 x4 (max at x4 mode) *1
      28-Lane CPU-
      3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4)
      2 x PCIe 3.0 x4 (max at x4 mode) *1
      16-Lane CPU-
      3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
      2 x PCIe 3.0 x4 (max at x4 mode) *1

    • Storage

      Intel® X299 Chipset :
      1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
      1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
      8 x SATA 6Gb/s port(s)
      Support Raid 0, 1, 5, 10
      Supports Intel® Smart Response Technology, Intel Rapid Start Technology*2
      Intel® Optane™ Memory Ready

    • LAN

      Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN
      Intel® I211, 1 x Gigabit LAN, featuring Turbo LAN
      ASUS Turbo LAN Utility

    • Audio

      Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
      - Impedance sense for front and rear headphone outputs
      - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
      - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
      Audio Feature :
      - DTS Connect
      - DTS Headphone:X
      - Optical S/PDIF out port(s) at back panel
      - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
      - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
      - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
      - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
      Separate layer for left and right track, ensuring both sound deliver equal quality

    • USB Ports

      ASMedia® USB 3.1 Gen 2 controller :
      1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
      ASMedia® USB 3.1 Gen 2 controller :
      2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM)
      Intel® X299 Chipset :
      8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
      Intel® X299 Chipset :
      6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

    • Special Features

      OC Design - ASUS PRO Clock Technology

      TUF Features:
      TUF ENGINE! Power Design :
      - 8 +2 Digital Phase Power Design
      - TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
      Ultimate COOL! Thermal Solution :
      - TUF Thermal Armor
      Thermal Radar 3
      - TUF ICe
      Safe & Stable! Guardian Angel :
      "We Got Your Back!" Shape Force
      - Dust Defenders
      - TUF Fortifier
      TUF VGA Holder
      - TUF ESD Guards 2
      - TUF LANGuard
      AURA :
      - Aura RGB Strip Headers
      - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
      ASUS Exclusive Features :
      - USB BIOS Flashback
      - MemOK!
      - AI Suite 3
      - Ai Charger
      - Onboard Button : Power
      - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
      - Turbo LAN

      ASUS EZ DIY :
      - ASUS EZ Flash 3
      - ASUS USB BIOS Flashback
      - ASUS UEFI BIOS EZ Mode
      - Multi-language BIOS
      ASUS Q-Design :
      - ASUS Q-Shield
      - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
      - ASUS Q-Slot
      - ASUS Q-DIMM
      - ASUS Q-Connector
      M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

    • Back I/O Ports

      2 x LAN (RJ45) port(s)
      2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
      4 x USB 3.1 Gen 1
      4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
      1 x Optical S/PDIF out
      5 x Audio jack(s)
      1 x USB BIOS Flashback Button(s)
      1 x TUF Detective USB port

    • Internal I/O Ports

      1 x AAFP connector
      1 x Aura RGB Strip Header
      2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
      1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
      1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
      1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
      1 x TPM header
      1 x COM port(s) connector(s)
      8 x SATA 6Gb/s connector(s)
      1 x VROC_HW_Key ()
      1 x CPU Fan connector(s)
      1 x CPU OPT Fan connector(s)
      5 x Chassis Fan connector(s)
      1 x Assistant Fan connector(s)
      1 x H_AMP fan connector
      1 x W_PUMP+ connector
      1 x Thunderbolt header(s)
      1 x 24-pin EATX Power connector(s)
      1 x 8-pin ATX 12V Power connector(s)
      1 x 4-pin ATX 12V Power connector(s)
      1 x System panel(s) (Q-Connector)
      1 x MemOK! button(s)
      3 x Thermal sensor connector(s)
      1 x Power-on button(s)
      1 x Clear CMOS jumper(s)
      1 x USB 3.1 Gen 2 front panel connector
      1 x CPU_OV jumper

    • Accessories

      User's manual
      ASUS Q-Shield
      1 x Vertical M.2 bracket set
      4 x SATA 6Gb/s cable(s)
      1 x ASUS 2-Way/3-Way SLI bridge
      1 x M.2 Screw Package
      1 x Supporting DVD
      1 x SLI HB BRIDGE(2-WAY-M)
      1 x Q-Connector
      1 x TUF Certification card(s)
      1 x TUF 5 Year Warranty manual(s) (by region)
      1 x TUF Inside sticker(s)(white)
      1 x STAY COOL BE TUF sticker(s)(gray)
      1 x TUF Dongle
      1 x Accessory Package(s):
      - 3 x PCIe x16 slot dust cover(s)
      - 1 x PCIe x4 slot dust cover(s)
      1 x TUF VGA Holder

    • BIOS

      128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
      ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

    • Manageability

      WfM 2.0, DMI 3.0, WOL by PME, PXE

    • Support Disc

      Drivers
      ASUS Utilities
      EZ Update
      Anti-virus software (OEM version)

    • Operating System

      Windows® 10 64-bit

    • Form Factor

      ATX Form Factor
      12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

    • Note

      1. PCIEX4_1 max. at x1 mode, PCIEX4_2 max. at x4 mode
      2. SATA6G_4/5/6/7 share bandwidth with PCIEX4_2.

    • Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
    • *Precise specifications and features vary by model . Please refer to the specification page
    • The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
    • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
    • PCB color and bundled software versions are subject to change without notice.
    • Brand and product names mentioned are trademarks of their respective companies.
