ASUS S2011-3 ATX X99-E DDR4 Motherboard, BONUS Steelseries Mouse Pad!
Web ID: 19140
Intel Socket 2011-3, Intel X99 Chipset, 8 x DDR4 Quad Channel Memory Slots, NVIDIA SLI, CrossFireX, 1 x M.2 Socket 3 with M Key type 2242/2260/2280/22110, 1 x SATA Express port compatible with 2 x SATA 6.0 Gb/s ports, 8 x SATA 6Gb/s ports, Intel Gigabit LAN, 8 Channel HD Audio with Optical S/PDIF out, USB 3.0/2.0/1.1, PS/2 Keyboard/Mouse combo port, ATX Form Factor, BONUS SteelSeries 63004 QcK Gaming Mouse Pad PN 63004 ONLY WHILE STOCKS LAST!
Manufacturer PN: X99-E
Warranty: 3 Year
Tune it to your will
Awaken the true performance new Intel Core i7 processor family for socket LGA 2011-v3!
Let loose up to 10 cores with new Intel® Core™ i7 processors for socket LGA 2011-v3, in both 28- and 40-lane options — and awaken the true multi-threaded performance! X99-Deluxe II is engineered from the ground squeeze every last drop of power from Intel's latest architecture, so you'll always be one step ahead!
*Overclocking range will varies according to CPU capabilities, cooling, motherboard support and tuning options.
Intel LGA2011-3 i7-6950X | X99-E | G.SKILL DDR4-3200 8GB*4 | GTX680-DC2-4GD5*1
Better Protection from Overcurrent
The extra 4-pin power plug shares current with the standard 8-pin power connector to balance loads and provide ample margin to overclock Intel's latest CPUs to the limit.
Make your memory go faster
Drive your memory frequencies to 3200MHz and beyond! ASUS-exclusive T-Topology circuit design provides a superb memory-overclocking capability to unleash the full power of DDR4 by minimizing coupling noise and signal reflection. With innovative equidistant memory channels, it delivers the most balanced control and powerful overclocking compatibility. ASUS works with almost every DDR4 memory vendor to ensure the best compatibility.
One click overclock and cooling, done!
One click takes care of all that complex tuning. Your PC is smart with ASUS 5-Way Optimization. It dynamically optimizes essential aspects of your system based on real-time use — so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and now even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!
- Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound.
- Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.
- Energy waste is reduced so you'll save money.
up to1000 RPM
Extreme Quiet Mode
Intel LGA2011-3 i7-5960X 140W | X99-E | CRUCIAL SSD 64G |ENERMAX EMR1350EWT 1350W | ASUS PB278Q 27” | MICRON MTA8ATF52164AZ-2G1A1 4GB*2 | GTX650Ti-DC2T-1GD5*1
CPU performance boost
All-round energy efficiency
Advanced fan controls
Precise Digital Power Control
Game faster, rank higher
Flexible cooling controls for air and liquidThe latest ASUS X99 motherboards feature the most advanced cooling capability to date, controllable from both Fan Xpert 4 and UEFI.
Fan Ext Header
Next Page >
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.

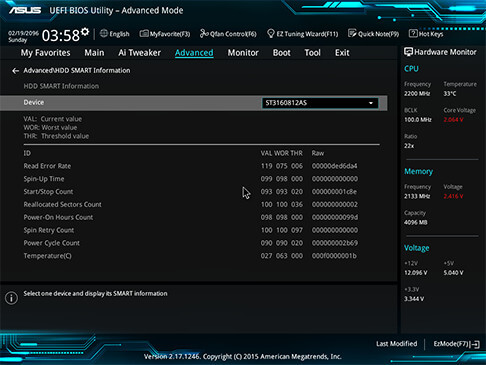

Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they’re about to fail.
EZ Tuning Wizard — OC and RAID
Select your hardware and apply different scenarios to tune system performance, or streamline your RAID configuration for faster data retrieval and backups!
Quickly find tuning options and add preferred tools to the list.
- Intuitive Graphical Fan Control:Fine-tune individual fans simply by dragging a curve with the mouse.
- EZ XMP:Improve your DRAM performance with a click.
- SATA Information:View SATA port details for easy device recognition.
- Fast Clock Adjustment:Use mouse controls to change the time and date.
- GPU POST:Recommendation for multi-VGA configuration and detailed information for selected ASUS graphics cards .
- Secure Erase:Restore your SSDs to factory-fresh condition.
- Last Modified Log:Track last change and save preferred profiles onto a USB drive.
- SATA Port Renaming:Rename SATA ports for easy identification.
- Aura (LED Control)Customize your favorite RGB LED style direct from the BIOS.
Make it your own
Brighten up your build
AURA Lighting ControlA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB control with a variety of functional presets for both built-in RGB LEDs.
Protect Your Graphics Card Investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, the X99 motherboard enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond.
- CPU 40 Lane 3-Way/2-Way
- CPU 28 Lane 3-Way/2-Way
Flawless audio that
makes you part of the game
Crystal Sound 3
More throughput, less CPU usage and great gaming experiencesX99-E features the very latest Intel® Ethernet for faster, smoother gaming — always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay!
Network-optimization software for customizable packet prioritizationTurbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and intuitive user interface. It allows you to lower lag with no expert knowledge — by up to 1.45X! If you're a tweaker, use Advanced Mode for hardcore controls.
Pumped-up throughput. 2.5X higher surge tolerance.ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Connect with Unparalleled Speed
Ultimate-speed 10Gbps with USB 3.1 onboard
With a reversible USB 3.1 Type-C for the very fastest USB data transfers, you'll experience data-transfer speeds of up to 10Gbps — or twice as fast USB 3.0. And you'll be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further!

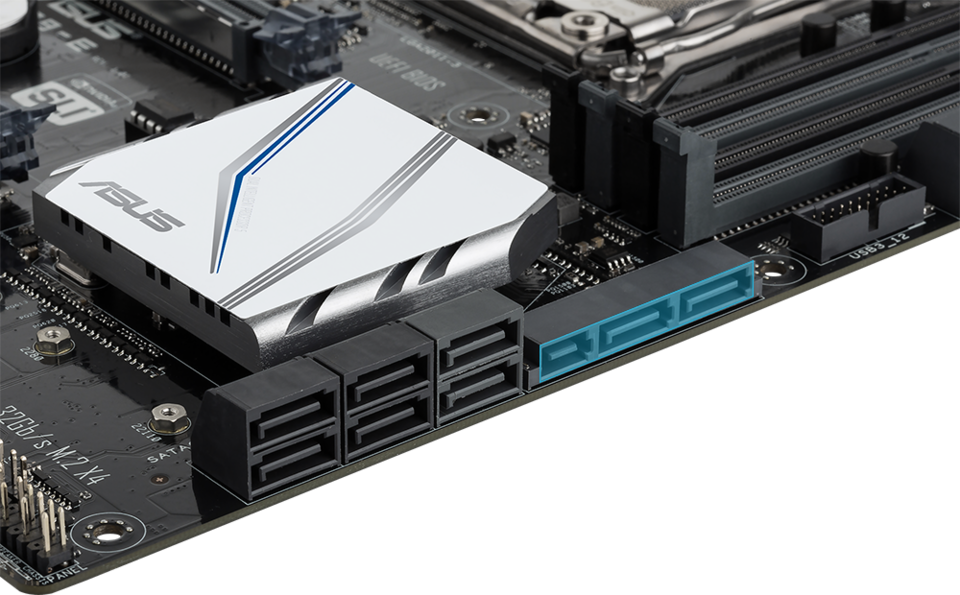

Fast storage speed with SATA Express
Current SSDs devour up to 550MB/s bandwidth, which is close to saturation point for SATA 6Gbps connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard — and ensures that you and your system won't get left behind.
Speed up with onboard M.2 up to 32Gbit/s
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
Upgrade with ThunderboltEX 3 to experience blistering speeds and any-way-up connectivityASUS X99-E offers support for ThunderboltEX 3 card, an Intel-certified Thunderbolt™ 3 add-on card enables breathtaking bi-directional speeds up to 40Gbps - four-times faster than other PC data-transfer cables with twice the video bandwidth for the latest 60 Hz 4K/UHD displays. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices, utilizes a Type C reversible connector for compatibility with the latest USB 3.1 Type-C devices and supports the USB Power Delivery specification for fast, high-power charging of up to 36W.
Total control anytime, anywhere with Remote GO!
Remote GO! gives you complete control of your PC — even when you're away from home. Access your forgotten files at home, and work on your PC from almost anywhere. Plus, it takes just one click to manage all your public clouds or sync files across your PC and devices!
Gather your ASUS WebStorage, Dropbox®, Google Drive™, and OneDrive® accounts in one place and even back up to PC at the same time.
Easily access and control your PC, anytime and anywhere!
Sync files between your PCs and smart devices with just a click!
Remote Keyboard & Mouse
Control media playback from your sofa!
Your digital PC hub for sharing and home theater
Enjoy your PC's multimedia content — anywhere! Pipe music from your PC or cloud storage, including ASUS WebStorage, Dropbox, Google Drive and OneDrive while sipping coffee in a café, or sit back with friends and stream a favorite movie to a smart TV. With ASUS Media Streamer, your entertainment goes wherever you go.
Watch your smart device content on the big screen
With HyStream you’ll enjoy the ease and freedom of streaming HD content from your supported* Apple iOS smartphone or tablet straight to your bigger screen!
* Contact your device vendor for support information.
All-in-one control between your PC and smart device
Work with your PC and smart device at the same time through a single keyboard-and-mouse set. A simple hot key lets you switch between your PC and smart device quickly. It even charges your mobile device at the same time.
You will love DIY!
We understand how you use your PC. From assembly, system setting and monitoring, and to firmware and hardware updates - we're all about making your life easier. That's why we never stop developing new and exciting DIY opportunities to make PC DIY easy, fun and free from hassle!
*The CPU Installation Tool is compatible only on selected motherboards
Intel CPU and chipset features
Intel® Core™ i7 Processor LGA2011-v3 Ready
This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.
Intel® X99 Chipset
The Intel® X99 Chipset is a single-chipset design that supports new Intel® Core™ i7 processor family for socket LGA 2011-v3 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X99 provides a maximum 6 USB 3.0 ports, 10 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.
Intel® Socket 2011-v3 Core™ i7 Processors
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Max Technology 3.0
* Refer to www.asus.com for CPU support list
8 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
- Expansion Slots
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) *1
2 x PCIe 2.0 x1
3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) *1
2 x PCIe 2.0 x1
New Intel® Core™ i7 Processors :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)*1
Intel® X99 chipset :
1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s)*2,
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology 14 support*2
Supports Intel® Smart Response Technology*3
Intel® I218V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
ASUS Turbo LAN Utility
ASUS LAN Guard
Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration

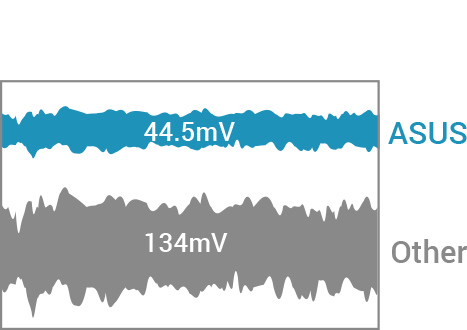

- Power pre-regulator: Reduces power input noise to ensure consistent performance
Separate layer for left and right track, ensuring both sound deliver equal quality
- USB Ports
Intel® X99 chipset :
5 x USB 3.0/2.0 port(s) (1 at back panel, , 4 at mid-board)
Intel® X99 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
ASMedia® USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, , Type-C, 0 at mid-board)
ASMedia® USB 3.0 controller :
3 x USB 3.0/2.0 port(s) (3 at back panel, )
- Special Features
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU :
ASUS Exclusive Features :
- Remote GO!
- AI Suite 3
- Ai Charger+
- M.2 & SATA Express
- USB 3.1 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 3
- EZ XMP ASUS Exclusive Features
- Mobo Connect
- PC Cleaner
- Media Streamer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 4
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS CrashFree BIOS
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
AURA: RGB Lighting Control
- Operating System Support
Windows® 10 , 64bit
Windows® 8.1 , 32bit/64bit
Windows® 7 , 32bit/64bit
- Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
1 x USB 3.1 (black)Type-C
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
- Internal I/O Ports
1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x CPU/DRAM overvoltage jumper(s)
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Water Pump header (4-pin)
1 x COM port header
1 x High AMP Fan header (4-pin)
1 x 2-Way SLI bridge(s)
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Q-connector(s) (1 in 1)
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
WfM 2.0, WOL by PME, PXE
- Support Disc
Anti-virus software (OEM version)
- Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
*1 The PCIe x16_3 shares bandwidth with M.2.
*2 Due to chipset behavior, The SATA6G_78, SATA6G_910 ports do not support IRST including RAID configuration.
*3 These functions will work depending on the CPU installed.
