ASUS S1151 ATX ROG STRIX Z370-H GAMING DDR4 Motherboard

Web ID: 21860

Intel Socket 1151, Intel Z370 Chipset, 4 x DDR4 4000MHz support, DisplayPort, HDMI, 2 x M.2, 6 x SATA 6Gb/s, 2 x PCIe 3.0/2.0 x16 (x16 or dual x8), 1 x PCIe 3.0/2.0 x16 (x2 mode), 3 x PCIe 3.0/2.0 x1, USB 3.1 Gen 1, USB 3.1 Gen 2, USB 3.0, USB 2.0, Intel Gigabit LAN, 1 x HDMI, 1 x DVI, OG SupremeFX 8-Channel High Definition Audio CODEC S1220A with Optical S/PDIF, ATX Form Factor, Requires Intel 8th Generation CPU ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: ROG STRIX Z370-H GAMING
GTIN: 889349811221
Manufacturer Website

$249

With aesthetics inspired by the sharpest blades and premium colorways to match any mood, the all-new ROG Strix Z370 motherboards are ready to do battle — and infused with all the essential ROG engineering needed to push performance as far as you dare. Ready for the latest 8th Generation Intel® Core™ processors, ROG Strix Z370-H Gaming is loaded with overclocking and cooling innovations to keep your gaming rig's thermals in check as you turn up the clock. Factor in the atmospheric red glow from the built-in LEDs and superior SupremeFX audio and you'll know that ROG Strix Z370-H Gaming looks great and sounds amazing — and outperforms every expectation to dominate your game!

GAMING AESTHETICS: ANGULAR DESIGN, INSPIRED BY THE CUTTING EDGE OF THE SHARPEST KATANA

ROG BADGE: OUR ALL-SEEING EYE IS CAST IN BRUSHED METAL, FOR TACTILE STYLE THAT MAKES YOUR RIG SHINE

GAMING AESTHETICS: ANGULAR DESIGN, INSPIRED BY THE CUTTING EDGE OF THE SHARPEST KATANA

ROG BADGE: OUR ALL-SEEING EYE IS CAST IN BRUSHED METAL, FOR TACTILE STYLE THAT MAKES YOUR RIG SHINE

GAMING AESTHETICS: ANGULAR DESIGN, INSPIRED BY THE CUTTING EDGE OF THE SHARPEST KATANA

ROG BADGE: OUR ALL-SEEING EYE IS CAST IN BRUSHED METAL, FOR TACTILE STYLE THAT MAKES YOUR RIG SHINE

prev

next

  1. USB 3.1 Gen2
    2 x Type-A
  2. Intel® I219-V
    LANGuard
    GameFirst IV
  3. 2 x PCIe 3.0 x 16 SafeSlots
    (Support x16, x8/x8)1 x PCIe 3.0 x 16(at x2 mode)
    3 x PCIe 3.0 x 1
  4. SupremeFX
    · Impedance sense
    · High quality output and input
    · SupremeFX shielding
    · Dual headphone amplifiers
  5. DDR4 4000MHz (O.C.)
    4 x DIMM, Dual-channel
    Support XMP
  6. Intel® Socket 1151
  7. 4 x USB 3.1 Gen1
  8. M.2 Socket 3 Type M (2242-2280)
    Support PCIe 3.0 x 4 mode
  9. ROG Logo Red LED

    staticstatic



    breathingbreathing

  10. 6 x SATA 6Gb/s
  11. M.2 Socket 3 Type M (2242-22110)
    Support SATA & PCIe 3.0 x 4 mode

PERFORMANCE

ROG Strix Z370-H Gaming rocks core ROG features to help you max out all aspects of system performance, handing you the tools needed to realize your system's true potential.

5-WAY OPTIMIZATION

ONE-CLICK OVERCLOCK AND COOLING, DONE!

One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

· An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
· Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
· All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.

  • TPU

  • EPU

  • Fan Xpert 4

  • Digi+
    Power control

  • Turbo
    App



With ROG Strix Z370-H Gaming you have comprehensive control over fans and all-in-one (AIO) coolers, via either Fan Expert 4 or our media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

ROG Strix Z370-H

?

COOLER BY DESIGN

ROG Strix Z370-H Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS:

  • Multiple temperature sources

  •
  • 4-pin PWM/DC fan

  •
  • AIO Pump Fan

  • Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling — all easily managed by Fan Xpert 4 or the media-acclaimed ASUS UEFI.

DDR4 OVERCLOCKING STRENGTH IN NUMBERS

ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing memory speeds of DDR4-4000 and beyond with all slots populated.



Stability

With 4*16GB DDR4 (RGB LED DIMM)

Performance

With All Slots PopulatedCPU : Intel LGA 2066 I7-7900X | PRIME X299-DELUXE | DRAM : G.Skill |
PSU: Corsair AX1500I | F4-3200C16Q-16GRKD | CPU Cooling : Corsair H115i

OC DESIGN: ASUS PRO CLOCK TECHNOLOGY

IMPROVED OVERCLOCKING FOR FASTER GAMING PERFORMANCE

A dedicated base-clock generator designed for 8th Generation Intel® processors allows overclocked base-clock (BCLK) frequencies up to 432MHz* — or even beyond. This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control, providing an exciting new way to boost performance to extreme heights.

  • Advantages of ASUS Pro Clock:
  • ·Reduced boot time
  • ·Lower jitter under extreme conditions for higher overclocks
  • ·Increased stability under heavy overclocking



BCLK Range (MHz)



CPU Frequency

CONNECTIVITY

ROG Strix Z370-H Gaming is engineered with the latest connectivity for the best gaming experiences. You'll transfer faster, banish lag and enjoy no-delay downloads — freeing up time for more victories!

INTEL ETHERNET

LOWER CPU WORKLOAD, HIGER TCP & UDP THROUGHPUT

Featuring the latest Intel® Ethernet (I219-V) for faster, smoother gaming. Intel Ethernet controllers have a natural synergy with their processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for games and other tasks.

LOWER CPU WORKLOAD

HIGH TCP & UDP THROUGHPUT


DUAL PCIE 3.0 M.2

LET YOUR SSD SCREAM AT SPEEDS OF UP TO 32GBPS

Dual PCIe 3.0 x4 M.2 slots provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to three PCIe 3.0 storage devices via two M.2 slots and a PCIe x16 slot to enjoy the world's fastest data-transfer speeds.

intel OPTANE MEMORY Learn More >

AUDIO

No gaming experience is complete without great audio, and ROG Strix Z370-H Gaming delivers superior sound that immerses completely — so you'll hear every detail!

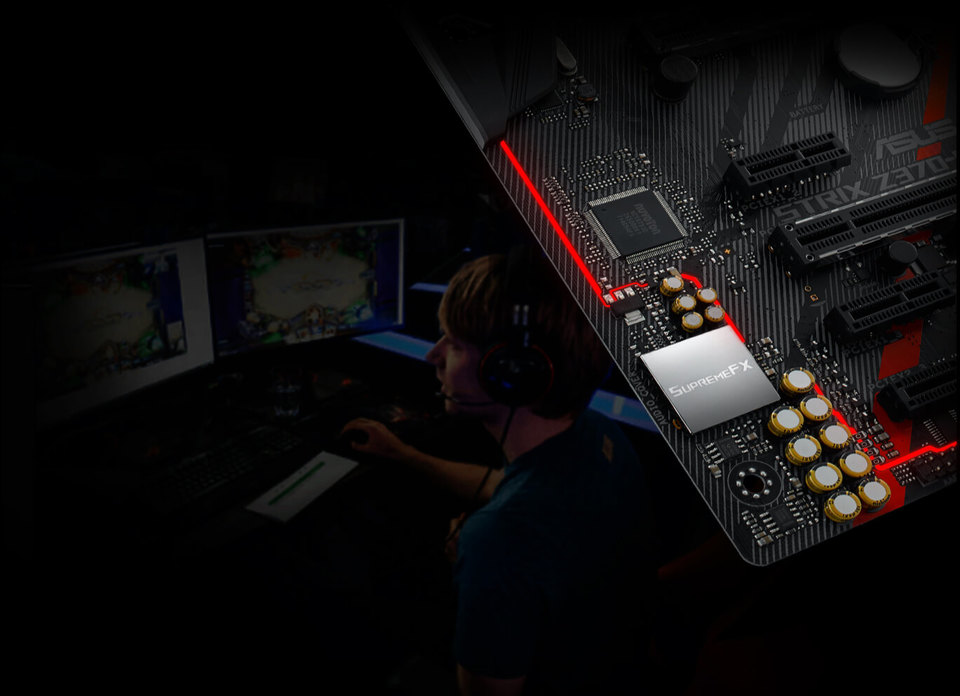

SUPREMEFX

SHIELDED AUDIO, SUPERIOR SOUND

ROG Strix's SupremeFX audio technology has levelled up, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection for best-ever recording quality — and 120dB on line-out for crystal-clear sound! We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220A codec, plus Texas Instruments® RC4580 and OPA1688 op-amps for high gain with low distortion. It all adds up to audio that envelops you as never before!

Learn more about SupremeFX

Audio cover

Effective shielding preserves the integrity of audio signals for the best quality.

Dual Op Amplifiers

One op amp adds voltage gain while the other works as a buffer. Together, they're capable of driving 32-600Ω headphones effortlessly.

Premium Nichicon™ audio capacitors

Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

Audio line shielding

Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

SONIC STUDIO III

Sonic Studio now supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
*Learn more about Sonic Studio III

Sonic Studio UI
  • APP-SPECIFIC PROFILES

    Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.

  • SURROUND SOUND

    Surround sound for a truly immersive audio experience

  • SONIC STUDIO LINK

    New Sonic Studio Link VR functionality extends its HRTF effects to headsets like the Oculus Rift and HTC Vive.

    SONIC STUDIO LINK

*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.
**Please note Sonic Studio Link is available only in version 3.6 and later.

SCAN AND DETECT TO DOMINATE!

SONIC RADAR III

Sonic Radar III is all new – with an evolved audio engine that processes sounds more accurately than ever, ensuring you're always aware of what's going on around you. A new on-screen arrow has also been added to help you pinpoint the enemy position instantly!

  • IMPROVED AUDIO ALGORITHM
    The new Sonic Radar audio algorithm is now even more accurate to allow enemies to be pinpointed with even more accuracy.
  • 3D ENGINE
    Sonic Radar III is built around it's all new HUD with an in-game 3 dimensional arrow for a more intuitive experience.
  • AUDIO BOOST
    The new audio boost feature now allows the boosted audio to be heard directly.*HUD: Head Up Display
  • AUDIO RADAR
    Sonic Radar 3 is effective regardless of surrounding noise and chaos.

GAMER'S
GUARDIAN

ROG Strix Z370-H Gaming is carefully designed and engineered with loads of high-quality components to protect your investment — and we call them Gamer's Guardian. Individually they're tough, together they're unstoppable.

  • SAFESLOT

    ASUS SafeSlot is the PCIe slot reinvented. Featuring a new single-step, insert-molding manufacturing process that integrates fortifying metal and additional solder points, SafeSlot provides stronger PCIe device retention and greater shearing resistance.

  •
  • Q-LEDS

    Onboard LEDs to Indicate the power status, and problems with the CPU, memory, graphics card or boot device for quick diagnosis.

  •
  • CPU INSTALLATION TOOL

    Three-step simplicity and safety—just pop your CPU in the special tool; insert the tool directly into the CPU socket; close the latch; then you're good to go!

ROG STRIX
GIVES YOU MORE

When you buy ROG you expect to get more — and boy, do you get it. ROG Strix Z370-H Gaming is bundled with loads of extras that you won't get elsewhere, so wrap your rig with ROG spirit!

3D-PRINTABLE ACCESSORIES

As system parts are visible in custom PC builds, make yours stand out from the competition with 3D-printed accessories.
Download 3D-printable file here

2-WAY SLI HB BRIDGE COVER

Clip the cover onto the PCB SLI HB bridge to add style to your build. Multiple form factors — eATX, ATX and mATX — are available.

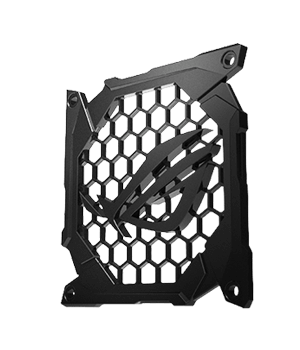

FAN GRILL

Add a little extra style to your build.



CABLE COMBS

Keep cables organized with the multi-connector design. 3D design files are available for 24-pin, 8-pin, 8 + 6-pin, 6-pin and 4-pin PSU connectors.



ROG FONTS

Use ROG font files to print letters -- then fully customize your build by adding your name or any other word or phrase!



ROG KEYCHAIN

Print a 3D keychain and show your ROG passion to the world!

OVERWOLF

STAY IN THE GAME

Overwolf is a clever, unobtrusive overlay that lets you browse the internet, email, IM, and stream or record gameplay – all while you're in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.

WATCH VIDEO

  • In-game dock
  • In-game calling
  • Multi-IM support



  • 5 customizable apps
  • 0 missed calls during gaming
  • 5+ clients in a single interface

ROG CLONE DRIVE

IMAGE YOUR DRIVES, THE SMART WAY

All-new ROG Clone Drive is the smart, convenient cloning solution that quickly and efficiently replicates hard drives or SSDs. Clone Drive is so smart that it can clone one drive to two target drives at the same time, or image any file from your disk at breakneck speeds.



BEYOND VR READY

ROG Strix Z370-H Gaming is VR Ready — and beyond! The ASUS Beyond VR Ready marque means that ROG Strix Z370-H Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.

THE POWER OF INTEL



Intel® Z370 chipset

The Intel® Z370 chipset supports 8th Generation Intel® Core™ processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z370 provides a maximum of 10 USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z370 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.



Ready for 8th Generation Intel LGA1151 Core processors

This motherboard supports 8th Generation Intel® Core™ processors in the LGA1151 package, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

  • CPU

    Intel® Socket 1151 for 8th Generation Core Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

  • Chipset

    Intel® Z370

  • Memory

    4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered, Register Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

  • Graphic

    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

  • Multi-GPU Support

    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD 2-Way CrossFireX Technology

  • Expansion Slots

    2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    1 x PCIe 3.0/2.0 x16 (x2 mode)
    3 x PCIe 3.0/2.0 x1

  • Storage

    Intel® Z370 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s)*1
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready *2

  • LAN

    Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
    Anti-surge LANGuard
    ROG GameFirst Technology

  • Audio

    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual Headphone Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - Supports up to 32-Bit/192kHz playback *3
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III

  • USB Ports

    Intel® Z370 Chipset :
    8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
    Intel® Z370 Chipset :
    6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
    ASMedia® USB 3.1 Gen 2 controller :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)

  • ROG Exclusive Features

    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Overwolf
    GameFirst IV

  • Special Features

    5-Way Optimization by Dual Intelligent Processors 5

    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    - SafeSlot
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution :
    - ASUS Fan Xpert 4 Core
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM

  • Back I/O Ports

    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2 Type-A
    2 x USB 2.0
    4 x USB 3.1 Gen 1
    1 x Optical S/PDIF out
    5 x Audio jack(s)

  • Internal I/O Ports

    1 x AAFP connector
    2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
    1 x TPM connector(s)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x CPU_OV jumper

  • Accessories

    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x CPU installation tool
    1 x Supporting DVD
    1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x ROG Strix stickers

  • BIOS

    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

  • Manageability

    WfM2.0, DMI3.0, WOL by PME, PXE

  • Support Disc

    Drivers
    ROG GameFirst IV*
    ROG RAMCache II
    ROG Clone Drive
    ROG CPU-Z
    Anti-virus software (OEM version)
    ASUS WebStorage
    ASUS Utilities

    *ROG GameFirst IV is only available for Windows 10/8.1 64-bit

  • Operating System

    Windows® 10 64-bit

  • Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  • Note

    *1 The M.2_1 socket shares bandwidth with SATA6G_1, SATA6G_2 ports when using M.2 SATA mode device. Adjust BIOS settings to use SATA device.
    *2 Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
    *3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
