ASUS S1151 ATX ROG-STRIX-H270F-GAMING DDR4 Motherboard

Web ID: 20095

Intel H270 Chipset, Socket 1151, 4 x DDR4, 1 x PCIe 3.0/2.0 x16 (x16 mode), 1 x PCIe 3.0/2.0 x16 (max at x4 mode), 4 x PCIe 3.0/2.0 x1, 2 x M.2, 6 x SATA 6Gb/s, Intel Gigabit LAN, 8 Channel HD Audio, USB 3.1 Type C, USB 3.1 Type A, 6 x USB 3.0, 8 x USB 2.0, DisplayPort, HDMI, DVI-D, ATX ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: ROG-STRIX-H270F-GAMING
GTIN: 889349600061
Manufacturer Website

$189

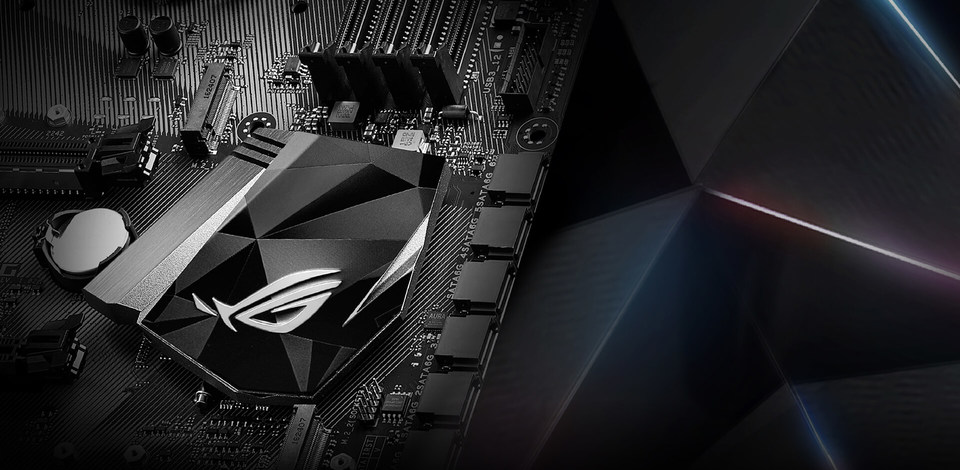

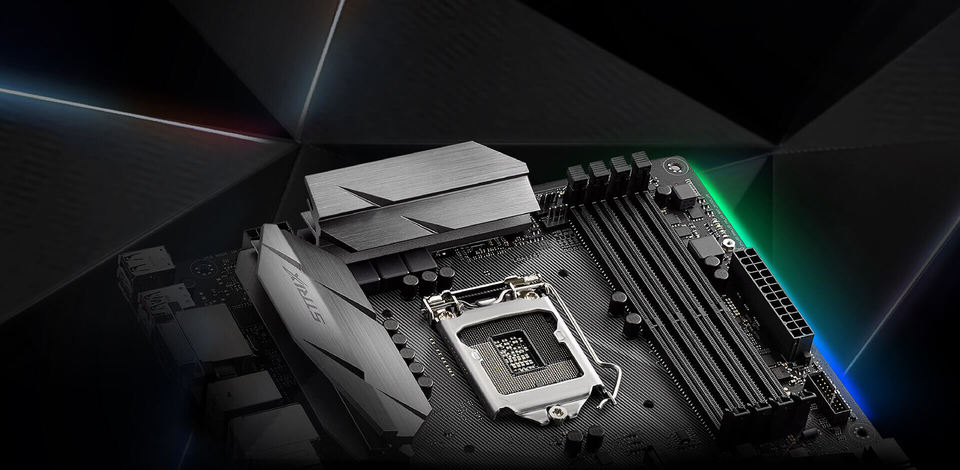

STYLISH PCB: MATTE BLACK COLOR WITH STRIKING, PATTERNED DESIGN

ROG BADGE: REFLECTIVE POLYCHROME FINISH STANDS OUT AGAINST DIAMOND-CUT METAL NAMEPLATE

GAMING AESTHETICS: AURA SYNC TECHNOLOGY PLUS ANGULAR HEATSINK

STYLISH PCB: MATTE BLACK COLOR WITH STRIKING, PATTERNED DESIGN

ROG BADGE: REFLECTIVE POLYCHROME FINISH STANDS OUT AGAINST DIAMOND-CUT METAL NAMEPLATE

GAMING AESTHETICS: AURA SYNC TECHNOLOGY PLUS ANGULAR HEATSINK

STYLISH PCB: MATTE BLACK COLOR WITH STRIKING, PATTERNED DESIGN

prev

next

  • USB 3.1
    (Type-A + Type-C)
  • Intel© I219-V Gigabit LAN
    LANGuard
    GameFirst
  • 1 x PCIe 3.0 x 16 (support x16)
    1 x PCIe 3.0 x 16 (at x4 mode)
    4 x PCIe 3.0 x 1
  • SupremeFX
    · Impedance sense
    · High quality output and input
    · SupremeFX shielding
    · Dual headphone amplifiers
  • Aura RGB header
  • DDR4 2400/2133MHz
    4 x DIMM, dual-channel
    Support XMP
  • 3D mount
  • Intel© Socket 1151
  • M.2 Socket 3 Type M (2242-2280)
    Supports SATA & PCIe 3.0 x 2 modes
  • 6 x SATA 6Gb/s
  • M.2 Socket 3 Type M (2242-22110)
    Supports PCIe 3.0 x 4 mode

Lighting

AURA LIGHTING CONTROL

Create your own custom LED lighting effects with the intuitive Aura software. Cast a stunning multi-color glow across your build with the powerful RGB LEDs built in to ROG Strix H270F Gaming, or attach a separate RGB strip using the onboard 4-pin header. Fire up Aura and enjoy the creative freedom of twelve different lighting themes.

  • StaticStaticAlways on
  •
  • BreathingBreathingFades in and out
  •
  • StrobingStrobingFlashes on and off
  •
  • Color cycleColor cycleFades between the colors of the rain-bow
  •
  • Music effectMusic effectPulses to the beat of your music
  •
  • CPU temperatureCPU TemperatureChanges color with CPU load
  • RainbowRainbowA rolling multi-color glow
  •
  • CometCometA stream of light with a tail
  •
  • Flash & dashFlash & dashSingle/multi-color stepped flashes
  •
  • WaveWaveAn undulating display in single or multi-color
  •
  • yoyoGlowing Yo YoA rebounding elastic beam
  •
  • Starry NightStarry NightA display that mimics the nighttime sky



*The Aura RGB-strip header supports standard 5050 RGB LED strips with a maximum power rating of 2A (12V). For maximum brightness, strip length should not exceed 2m.
* One extension cable is included. RGB LED strips are sold separately.

OUTSHINE THE COMPETITION

ASUS Aura Sync RGB LED technology makes ROG Strix H270F Gaming the control hub for your illumination ambitions — so it's easy to synchronize incredible lighting effects between compatible components, including RGB LED strips, graphics cards, keyboards and even mice! Change all LEDs in unison or employ dynamic modes to flow the illumination effects smoothly across all synchronized devices.

*Visit the ASUS Aura microsite to learn more about Aura Sync.

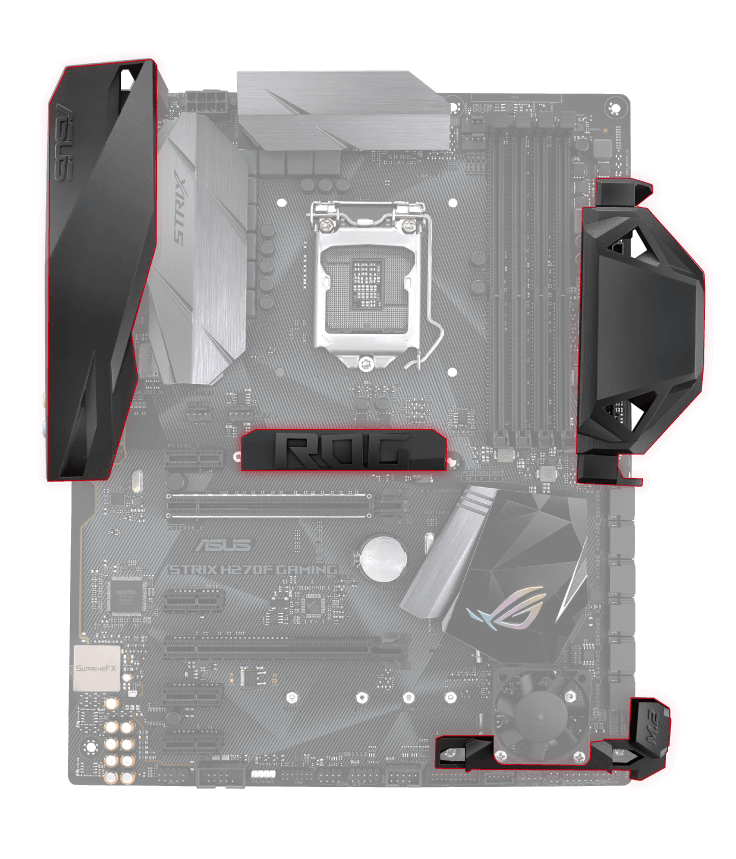

3d Printing Friendly

MAKE IT YOUR OWN

ASUS is the first motherboard manufacturer to support 3D printing, making it easy to customize your motherboard's appearance and improve system performance with a range of printable parts.

  • CABLE COVER

    Cover your cables for a tidier PC.
  • CUSTOM NAMEPLATE

    Personalize your build with a custom logo making it unique to you.
  • M.2 FAN HOLDER

    The ASUS 3D-printed M.2 fan holder keeps temperatures low for improved performance and longevity.
  • IO COVER

    Cover the IO and individualize your build with a name or logo.


EXCLUSIVE 3D MOUNT FOR EASY INSTALLATION

Dedicated 3D Mounts on the motherboard makes fitting 3D-printed parts easy. Using the same screws as M.2 drives and standard motherboard mounting holes, you can easily add nameplates, cable covers, or an M.2 fan holder.

*Products with the 3D Printing Friendly logo feature the specialized 3D Mount and are also bundled with an extra 3D mount kit.

3D-PRINTABLE ACCESSORIES

As system parts are visible in custom PC builds, make yours stand out from the competition with 3D-printed accessories.

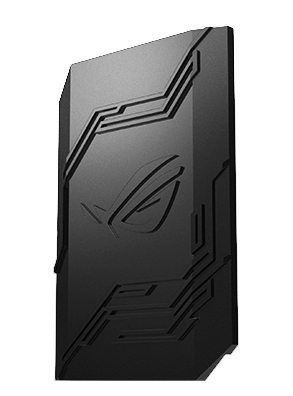

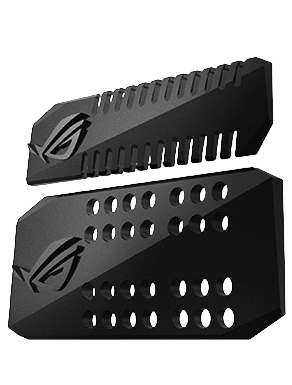

2-WAY SLI HB BRIDGE COVER

Clip the cover onto the PCB SLI HB bridge to add style to your build. Multiple form factors — eATX, ATX and mATX — are available.

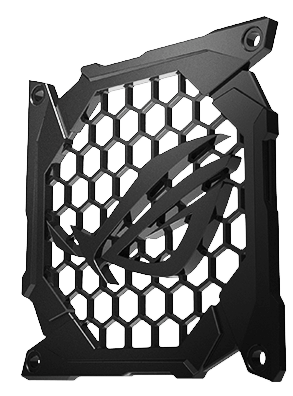

FAN GRILL

Add a little extra style to your build.



CABLE COMBS

Keep cables organized with the multi-connector design. 3D design files are available for 24-pin, 8-pin, 8 + 6-pin, 6-pin and 4-pin PSU connectors.

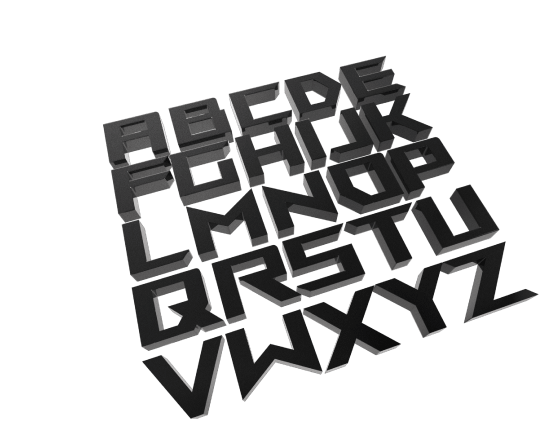

ROG FONTS

Use ROG font files to print letters -- then fully customize your build by adding your name or any other word or phrase!

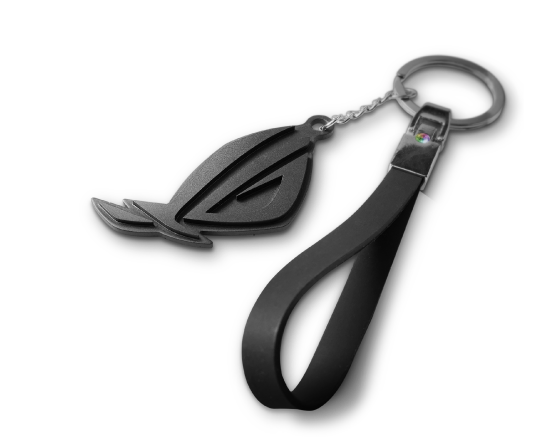

ROG KEYCHAIN

Print a 3D keychain and show your ROG passion to the world!

GUIDE TO START PRINTING

  • DOWNLOAD

    Select the 3D source files you want to download.

    download
  •
  • PERSONALIZE

    Adjust size or shape, add text or change other attributes.

    play

    Watch tutorial

  •
  • PRINT

    Use your own printer, or visit a local vendor or ASUS store with Shapeways.

    shapeways
  •
  • SETUP

    Easily assemble and fit your 3D-printed parts using M.2 nuts or existing case mounts.

    play

    Watch tutorial

LEARN MORE

AUDIO

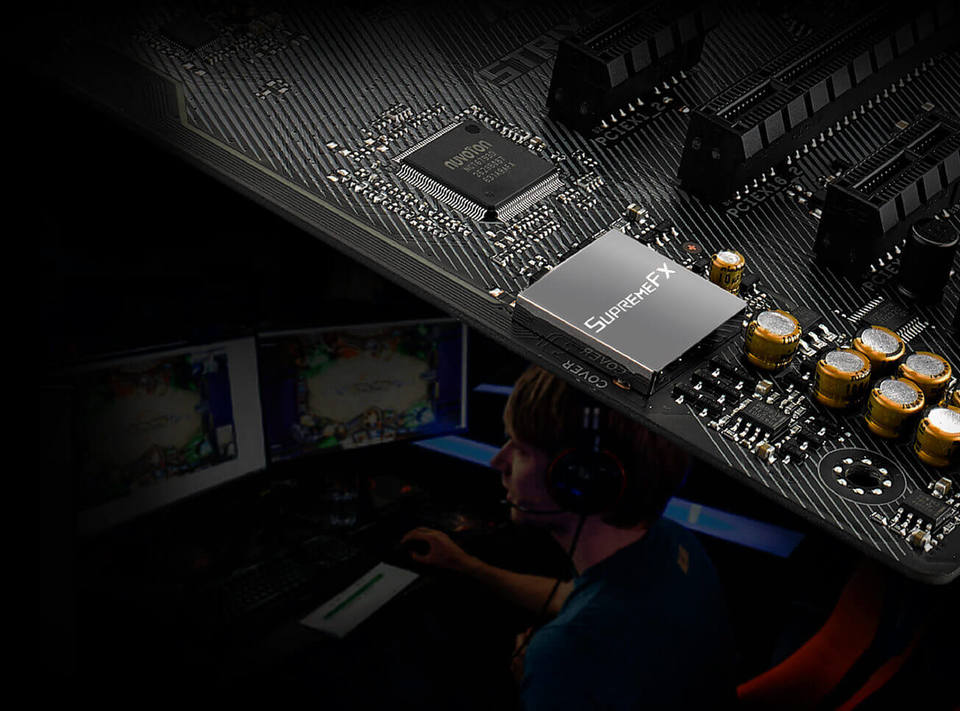

SUPREMEFX

SHIELDED AUDIO, SUPERIOR SOUND

ROG Strix's awesome SupremeFX audio technology has levelled up, delivering an exceptional 113 dB signal-to-noise ratio on the line-in connection for best-ever ROG recording quality! We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220A codec, plus Texas Instruments® RC4580 and OPA1688 op-amps for high gain with low distortion. It all adds up to audio that envelops you as never before!

Audio cover

Effective shielding preserves the integrity of audio signals for the best quality.



Dual Op Amplifiers

With two op-amps onboard you're able to pump exceptional audio to your favorite cans, with 32-600Ω-headphone impedance for great flexibility.



Premium Nichicon™ audio capacitors

Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.



Audio line shielding

Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

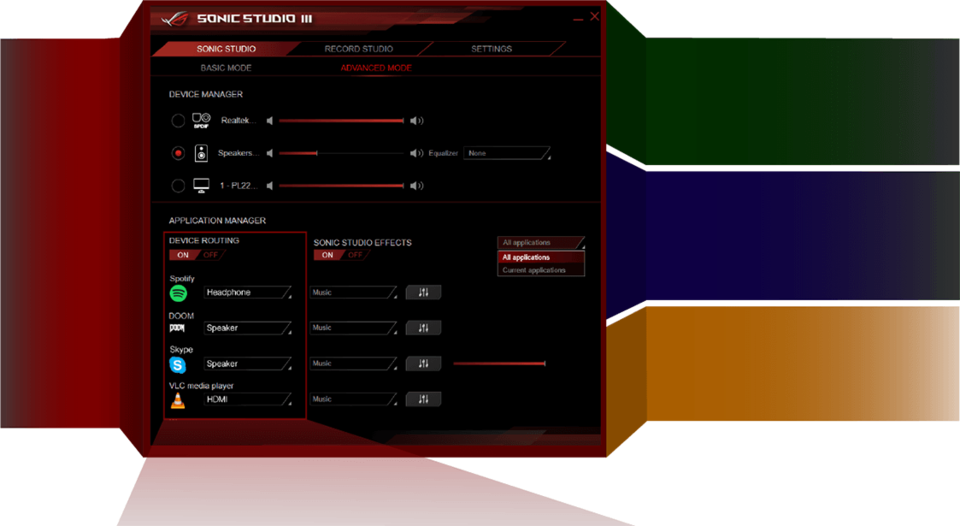

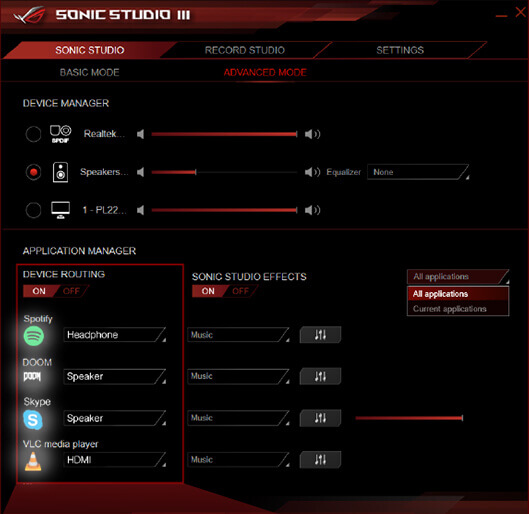

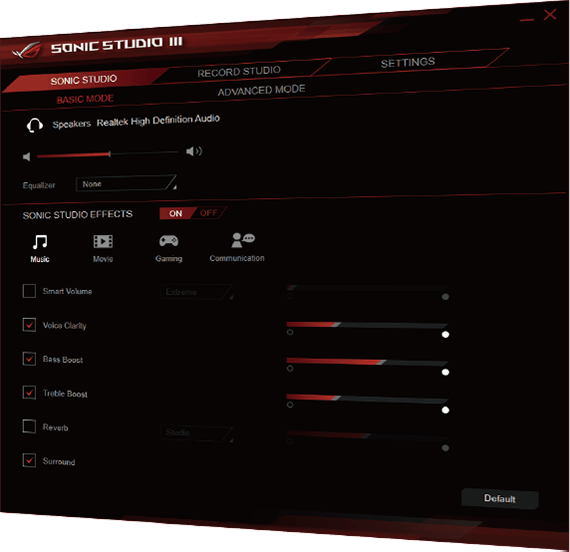

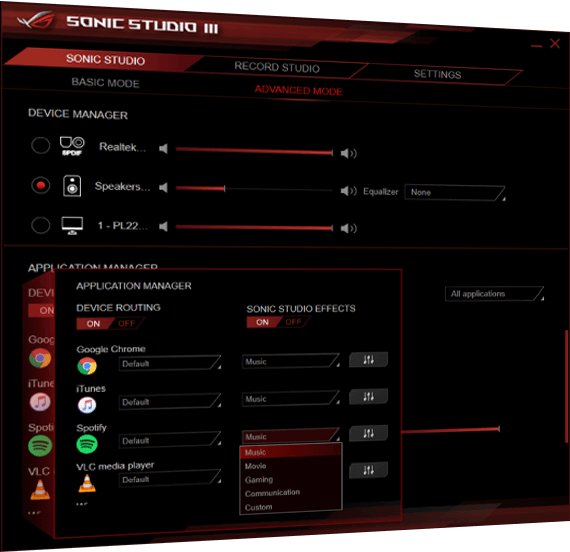

SONIC STUDIO III

ROG Strix's Sonic Studio III audio-effects station has an intelligent routing feature made for streaming. The new routing feature ports streams to different outputs giving you full control over who hears what. With Sonic Studio III, you now can share your exciting in-game moments without worrying about frivolous DCMA takedown requests. In addition to that, Sonic Studio III also comes with app-level preferences for instant audio profiles, and improved noise filtering for conversations with total clarity!

Easily assign different audio streams to different outputs, such as browser audio to headphones and game audio to speakers.

  • MUSIC
    PLAYERS

  • GAMES

  • VOIP
    APP

  • VIDEO
    PLAYERS

  • MUSIC
    PLAYERS

  • GAMES

  • VOIP
    APP

  • VIDEO
    PLAYERS

APP-SPECIFIC PROFILES

Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.



NOISE FILTER

Automatically detects and eliminates unwanted background noises, ensuring that your communications are loud and clear.

SCAN AND DETECT TO DOMINATE

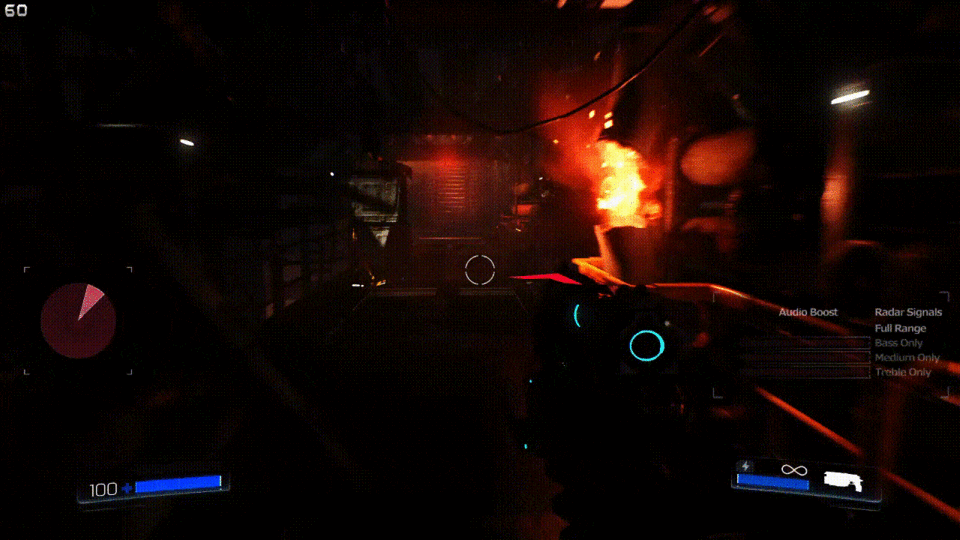

SONIC RADAR III

We've given Sonic Radar III an overhaul, evolving the audio engine to process sounds more accurately than ever, ensuring you're always aware of what's going on around you — and we've even added an onscreen arrow to help you pinpoint the enemy's position instantly! See the origin of key in-game sounds and hone your enemy-pinpointing skills. Plus the new audio boost feature provides filters that let you hear even the faintest sounds, so you can become the hunter, not the hunted!


  • IMPROVED AUDIO ALGORITHM

    The new Sonic Radar III audio algorithm is now even more accurate to allow enemies to be pinpointed with even more accuracy.
  • 3D ENGINE

    Sonic Radar III is built around it's all new HUD with an in-game 3 dimensional arrow for a more intuitive experience.
  • AUDIO BOOST

    The new audio boost feature now allows the boosted audio to be heard directly.
  • AUDIO RADAR

    Sonic Radar III is effective regardless of surrounding noise and chaos.

performance

  • All-round
    energy efficiency

  • Advanced
    fan controls

  • Precise Digital
    Power Control

  • Game faster
    rank higher

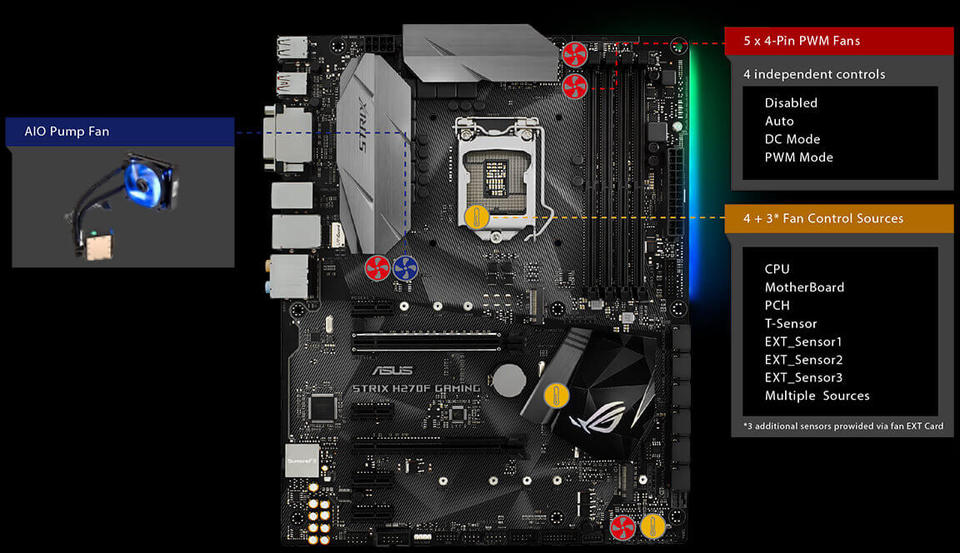

COOLER BY DESIGN

Play quieter and cooler with advanced fan and water-pump controls for the ultimate in undisturbed gaming. With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 4 makes sure every fan achieves the best balance of high cooling performance and low noise -- so you enjoy all the performance you demand with none of the racket!

next page

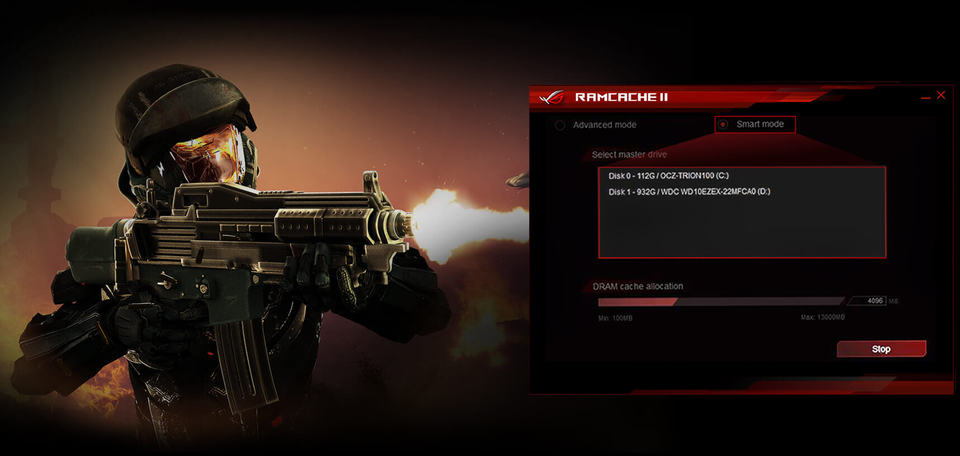

RAMCACHE II

SPEED YOUR GAME LOADS

Uniquely intelligent technology that effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it's activated. RAMCache II turns milliseconds into microseconds to boost game-load times -- and of course it's compatible with the latest NVM Express storage options!

Automatically caches all your storage devices at the same time for optimal use of your system‘s caching resources.

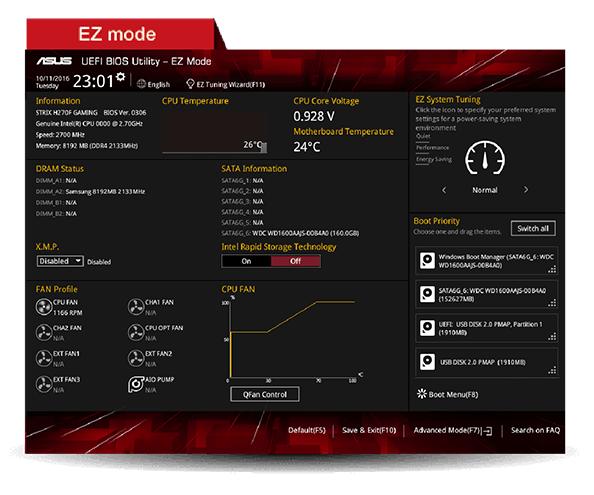

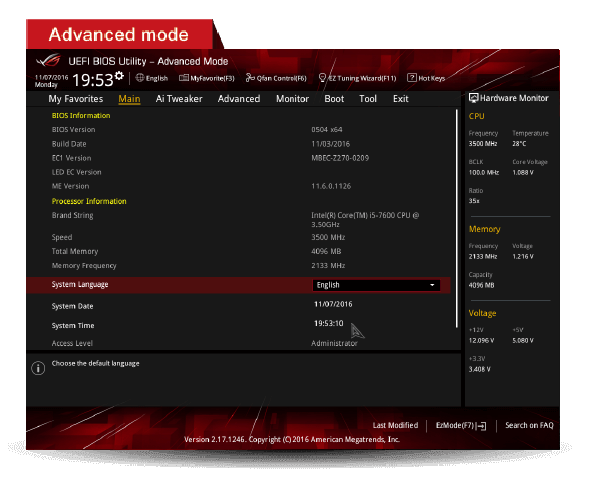

AWARD-WINNING BIOS DESIGN

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way. In EZ Mode you can get set up very quickly, applying the date and time, fan profiles and Intel Extreme Memory Profile (XMP) memory profiles. Switch to Advanced Mode to set up favorites and shortcuts, record and review recent changes with Last Modified or make notes in Quick Notes.

CRASHFREE BIOS 3

Never again worry about corrupted BIOS, as CrashFree BIOS 3 lets you restore a PC to working order — even when it won't boot!



EZ FLASH 3

Update the latest BIOS via the internet or from within the system BIOS.

networking



INTEL GIGABIT ETHERNET

MORE THROUGHPUT AND LESS CPU USAGE FOR GREAT GAMING EXPERIENCES

ROG Strix H270F Gaming features the very latest Intel Ethernet (I219-V) for faster, smoother gaming. Intel's LAN has the serious double advantage of reducing CPU overhead while offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for gaming.

LOWER CPU WORKLOAD



HIGH TCP & UDP THROUGHPUT

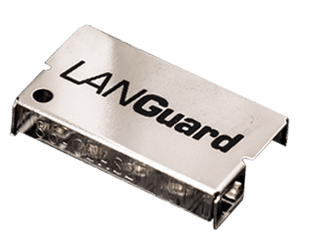

LANGUARD

PUMPED-UP THROUGHPUT, BEST SURGE PROTECTION

LANGuard means safer, more reliable connections for your battles! Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your ROG Strix H270F Gaming's connection and deliver pumped-up throughput, plus electrostatically guarded and surge-protected components (ESD Guards) for 1.9x-greater tolerance to static electricity and 2.5x-greater protection (up to 15KV) against surges!



Surface-mounted
capacitors

EMI Cover

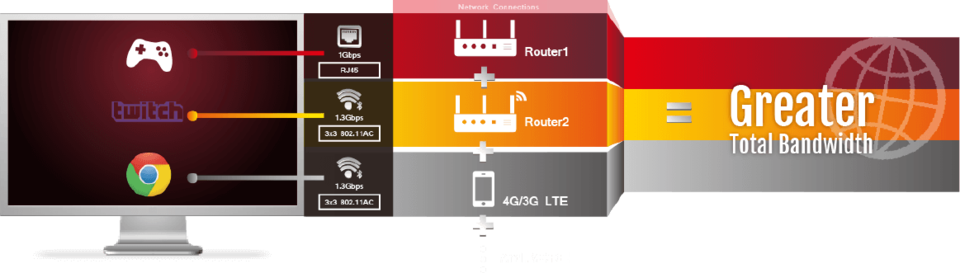

GAMEFIRST IV

TEAM UP TO BANISH LAG

GameFirst IV optimizes network traffic for faster, lag-free online gaming — and now we've added Multi-Gate Teaming to team all your networks for maximum bandwidth and the smoothest-ever gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for the best performance.

connectivity

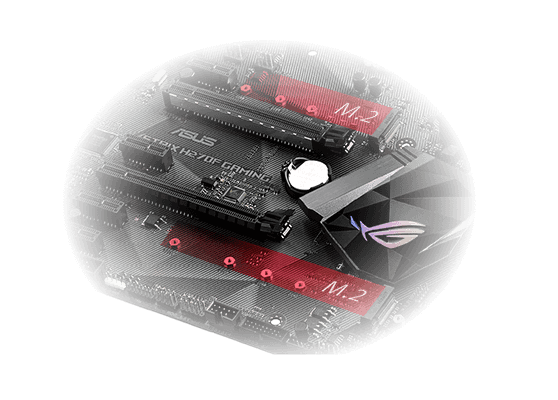

DUAL PCIE GEN3 M.2

LET YOUR SSD SCREAM AT SPEEDS OF UP TO 32GBPS

Dual PCIe Gen3 M.2 slots (1x type 22110, 1x type 2280) provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe Gen3 storage devices via two M.2 slots to enjoy the fastest data-transfer speeds on the 7th Generation Intel Core platform.

Learn more about Intel Optane technology

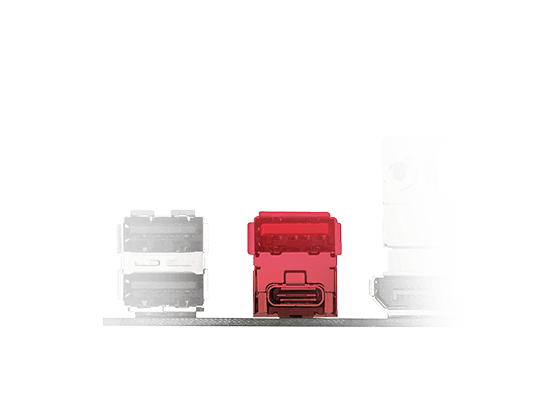

USB 3.1 TYPE A+C

ULTIMATE 10GBPS DATA SPEEDS

With one USB 3.1 Type-A port and one reversible USB 3.1 Type-C port, you'll experience data-transfer speeds of up to 10Gbps — twice as fast USB 3.0. USB 3.1 is also completely backward-compatible with existing USB devices -- so you'll be set for breakneck USB 3.1 speeds with every connection. And as an added bonus, ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further.

games's
guardian

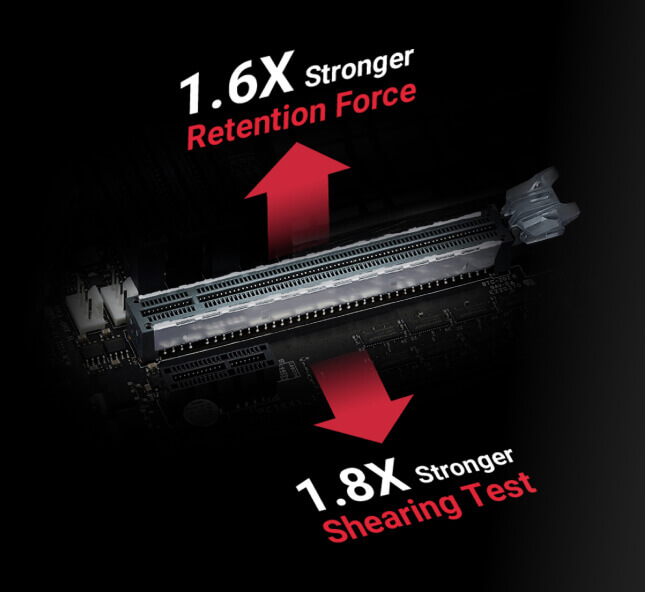

SAFESLOT

ASUS SafeSlot is the PCIe slot reinvented. Featuring a new single-step, insert-molding manufacturing process that integrates fortifying metal and additional solder points, SafeSlot provides stronger PCIe device retention and greater shearing resistance.

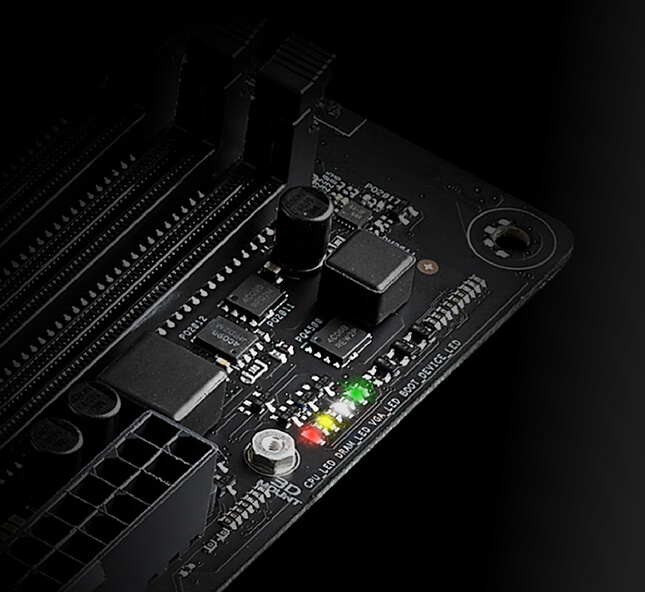

Q-LEDS

Onboard LEDs to Indicate the power status, and problems with the CPU, memory, graphics card or boot device for quick diagnosis.

more

ROG Strix
Gives you more

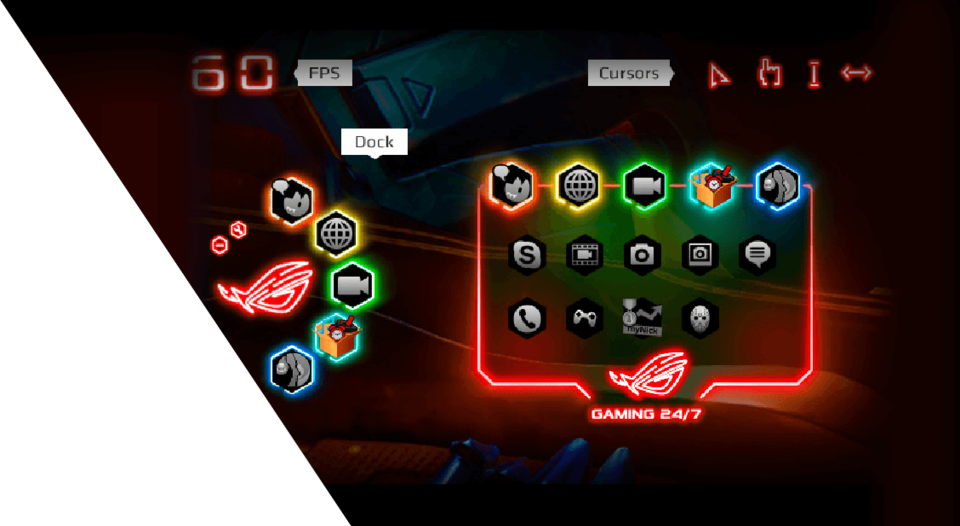

OVERWOLF

STAY IN THE GAME

Overwolf is a clever, unobtrusive overlay that lets you browse the internet, email, IM, and stream or record gameplay – all while you're in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.

WATCH VIDEO

  • In-game dock

  • In-game calling

  • Multi-IM support


  • 5 customizable apps

  • 0 missed calls during gaming

  • 5+ clients in a single interface

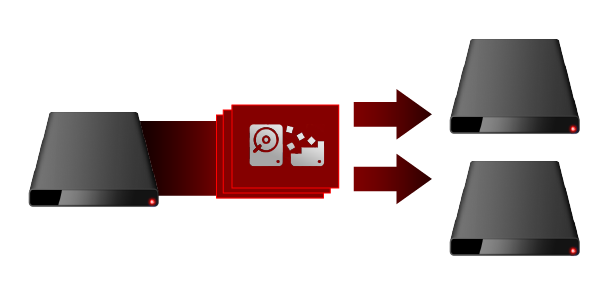

ROG CLONE DRIVE

IMAGE YOUR DRIVES, THE SMART WAY

All-new ROG Clone Drive is the smart, convenient cloning solution that quickly and efficiently replicates hard drives or SSDs. Clone Drive is so smart that it can clone one drive to two target drives at the same time, or image any file from your disk at breakneck speeds.



Beyond VR ready

ROG Strix H270F Gaming isn't just VR Ready — it goes way beyond! The ASUS ROG Beyond VR Ready marque means that ROG Strix H270F Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance after you've taken off the headset. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.
Learn more about ASUS Beyond VR Ready

The power of Intel



Intel® H270 chipset

Intel® H270 is a single-chipset design that supports 7th & 6th generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, H270 provides a maximum eight USB 3.0 ports, six SATA 6Gbit/s ports, 32Gbit/s M.2 and PCIe 3.0 lane speed support for faster data retrieval. Intel H270 also supports integrated-graphics (iGPU) functions, so you'll enjoy the very latest Intel integrated graphics performance.



Ready for 7th Generation and 6th Generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

The ROG Strix H270F Gaming motherboard supports 7th Generation and 6th Generation Intel Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors in the LGA1151 package. Integrated graphics, memory and PCI Express controllers support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

  • CPU

    Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list

  • Chipset

    Intel® H270

  • Memory

    4 x DIMM, Max. 64GB, DDR4 3300(O.C.)/3000(O.C.)/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
    ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

  • Front Side Bus
  • System Bus
  • Thunderbolt
  • Graphic

    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
    DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

  • Multi-GPU Support

    Supports AMD 2-Way CrossFireX Technology

  • CUDA Core
  • Expansion Slots

    1 x PCIe 3.0/2.0 x16 (x16 mode)
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1

  • Storage

    Intel® H270 Chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology 15 support
    Intel® Optane™ Memory Ready *3

  • LAN

    Intel® I219V
    Anti-surge LANGuard
    ROG GameFirst Technology

  • Wireless Data Network
  • Bluetooth
  • ThunderBolt LAN/Audio Combo Card
  • Audio

    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual Headphone Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

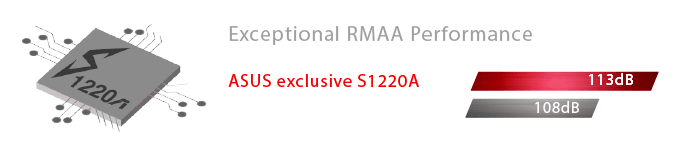

    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - Supports up to 32-Bit/192kHz playback *4
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III

  • ThunderFX
  • IEEE 1394
  • USB Ports

    Intel® H270 Chipset :
    6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
    Intel® H270 Chipset : *5
    8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
    ASMedia® USB 3.1 controller :
    2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)

  • Workstation Feature
  • OC Panel
  • OC Panel II
  • ROG Exclusive Features

    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Overwolf
    GameFirst IV
    ROG Aura
    - Aura Lighting Control
    - Aura RGB Strip Headers

  • Special Features

    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    - SafeSlot
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - ESD Guards
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Gaming Aesthetics :
    - 3D printing friendly
    - AURA-RGB Lighting
    Performance Optimization :
    - DIGI + VRM
    - GPU Boost
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
    - AI Suite 3
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

  • Operating System Support
  • Back I/O Ports

    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Type-A + Type-C
    2 x USB 3.0 (blue)
    4 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)

  • Internal I/O Ports

    1 x AAFP connector
    1 x RGB Header(s)
    2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x Clear CMOS jumper(s)
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x ROG extension (ROG_EXT) header(s)
    1 x 14-1 pin TPM connector
    1 x COM port header
    1 x T_Sensor Connector
    3 x 3D Mount screw port(s)

  • Accessories

    User's manual
    ASUS Q-Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ROG Strix stickers
    1 x 10 in 1 ROG Cable Label(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x 3D printing mount package

  • BIOS

    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

  • Manageability

    WfM2.0, DMI3.0, WOL by PME, PXE

  • Support Disc
  • Operating System

    Windows® 10 64-bit
    Windows® 8.1 64-bit *6
    Windows® 7 32-bit *6
    Windows® 7 64-bit *6

  • Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  • Management Solution
  • Weight
  • Environment
  • Note

    *1 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
    *2 The M.2_1 and M.2-2 sockets support Intel Optane Technology.
    *3 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
    *4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
    *5 2 x USB 2.0 port at mid-board shares with ROG extension (ROG_EXT) port.
    *6 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
    *7 ROG GameFirst IV is only available for Windows® 10/8.1 64-bit
