ASUS AM4 MicroATX Prime B350M-A Motherboard

Web ID: 20458

AMD Ryzen AM4 Socket, B350 Chipset, 4 x DDR4 Memory slots, 1 x PCIe 3.0 (x16, x8) slot, 2 x PCIe x1, 2 x M.2 PCIe/SATA Slots, 6 x SATA 6Gbps, RAID 0, 1, 10, Gigabit LAN, D-Sub (VGA), DVI, HDMI, 2 x USB 3.1 (Gen1) (2 via back panel), 6 x USB 3.0 (4 via back panel, 2 via internal header), 4 x USB 2.0 (4 via internal header), 8 Channel High Definition Audio, MicroATX Form Factor
Manufacturer PN: Prime B350M-A
GTIN: 889349673584
Warranty: 3 Year
Manufacturer Website

$119

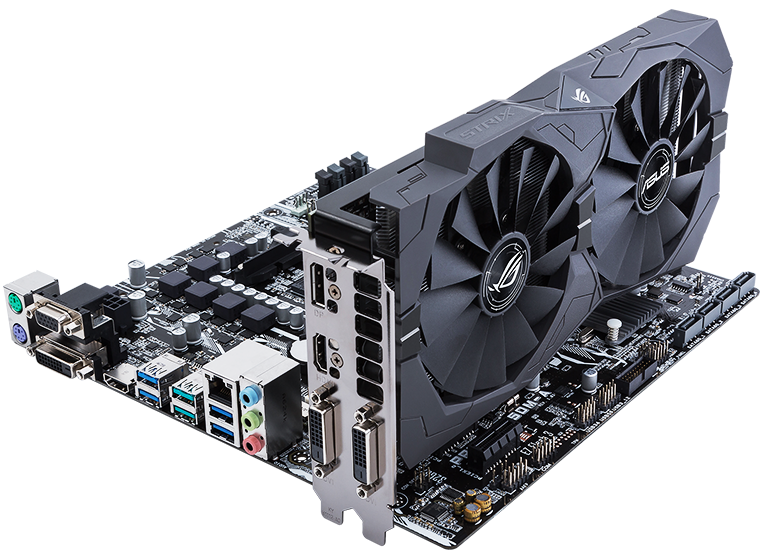

ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.

Reliable Stability and Compatibility
Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.

5X

Protection III

Hardware safeguards to ensure long-term durability.

350+

DDR4 Compatibility

Industry-leading DDR4 memory compatibility for best flexibility and reassurance.

1000+

Compatible Devices

Compatibility with a range of CPUs, memory modules, graphics cards and more.

8000+

Validation Hours

Extensive testing with latest components for enhanced reliability, compatibility and safety.




PRIME B350 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.

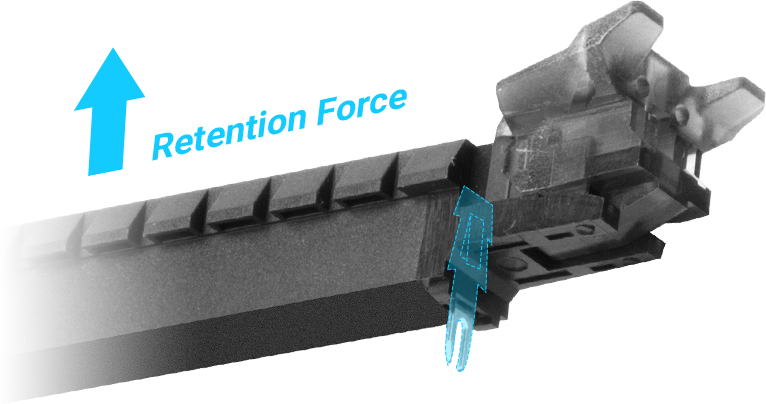

SafeSlot Core
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.

LANGuard
Pumped-up throughput. 2.5x higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.



* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

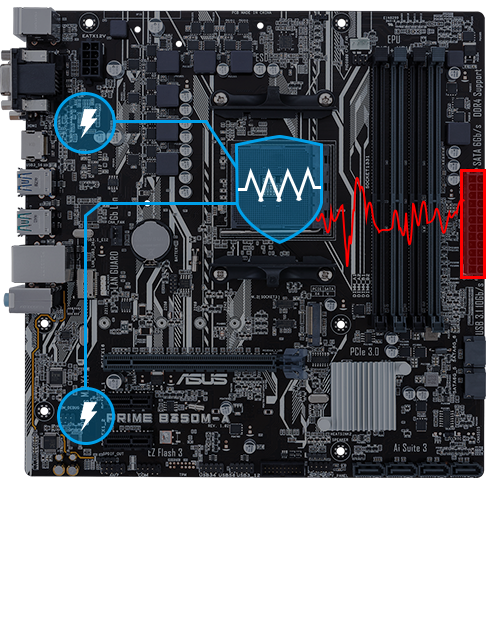

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. * Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

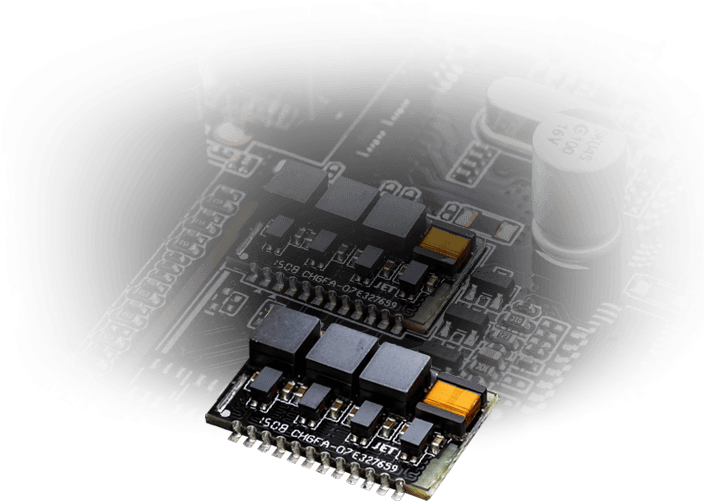

DIGI+ VRM

Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

DRAM Overcurrent Protection

Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

3x corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

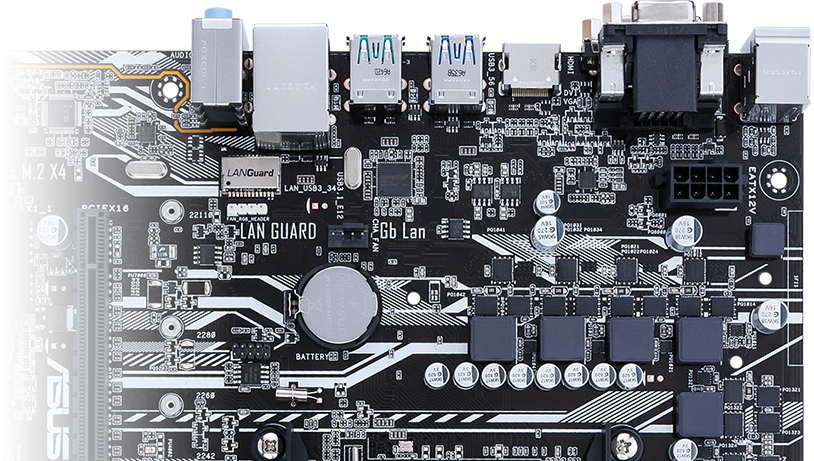

ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
LAN port
ESD TVS diode protection on the LAN circuit.
USB connectors
TVS diodes for surface-mount and dual-inline packages.
VGA connectors
Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
Keyboard and mouse connectors
Additional on-circuit ESD transient-voltage-suppression.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Proven Compatibility
Tested to be compatible with 1,000+ CPUs, DDR4 memory modules, graphics cards and more
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.

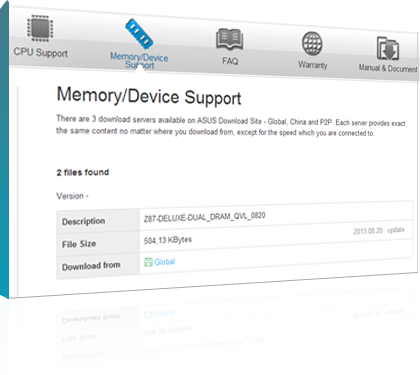

Extensive List of Supported Devices
View supported devices and Qualified Vendor List for compatible memory
The superior compatibility of Prime B350 series is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences.
Great Compatibility
with ASUS Products
ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime B350 series, so you can complete your custom motherboard build with confidence!

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Top-to-bottom Reliability
ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
8000+
VALIDATION HOURS
Temperature and Humidity Test
Ensures components withstand extreme conditions.
Thermal Measurement Test
Ensures that the system remains cool and stable under the heaviest loads.
Insertion Test
Every port and connector is put through repeated installation cycles.
Aging Test
Up to 48-hour aging test ensures reliability.
Power Consumption Test
Checked for world-class energy efficiency.
Temperature and DC Margin Test
Ensures that the motherboard is capable of coping with Voltage fluctuations caused by varying temperatures.
Thermal Shock Test
Ensures ability to survive temperature changes during transportation.
Non-Operation Shock Test
Built to withstand jolts that may occur during shipping.
Burn-In Test
Every component is checked to ensure flawless operation in any environment.
Installation Test
Connector placement is double-checked to ensure hassle-free installation.
Drop Test
Drop tests from various heights ensure durability.
Salt and Spray Test
Tested for I/O reliability, prolonged lifespan and rust-resistance.
Optimized Cooling
Fan Xpert
Dedicated CPU and case fan controls

Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise - and with Prime B350 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Fan Xpert 2
  • CPU
    AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
    Supports CPU up to 8 cores
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD B350
  • Memory
    AMD Ryzen™ Processors
    4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    AMD 7th Generation A-series/Athlon™ Processors
    4 x DIMM, Max. 4GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU
    Multi-VGA output support : HDMI/DVI/RGB ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 2048 MB
  • Expansion Slots
    AMD Ryzen™ Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    AMD 7th Generation A-series/Athlon™ Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD B350 chipset
    2 x PCIe 2.0 x1
  • Storage
    AMD B350 chipset :
    4 x SATA 6Gb/s port(s), gray,
    Support Raid 0, 1, 10
    AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
    2 x SATA 6Gb/s port(s), gray,
    AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
    AMD 7th Generation A-series/Athlon™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)*2
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
  • USB Ports
    ASMedia® USB 3.1 controller :
    2 x USB 3.1 port(s) (2 at back panel, blue)
    AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
    4 x USB 3.0 port(s) (4 at back panel, )
    AMD B350 chipset :
    2 x USB 3.0 port(s) (2 at mid-board)
    AMD B350 chipset :
    4 x USB 2.0 port(s) (4 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - Turbo LAN
    - PC Cleaner
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
  • Operating System Support
    Windows® 10 , 64bit
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 (teal blue)
    4 x USB 3.0 (blue)
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x Fan RGB header
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    mATX Form Factor
    9.6 inch x 9.45 inch ( 24.4 cm x 24 cm )
  • Note
    1*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.
    2*When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
