8 Port Netgear GS110EMX Managed Gigabit Switch with 2 x 10G Ports PN GS110EMX-100AUS

Web ID: 26488

As a leading provider of network equipment for SMBs, NETGEAR understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance ONLY WHILE STOCKS LAST!
Manufacturer Warranty: Lifetime
Manufacturer PN: GS110EMX-100AUS
GTIN: 606449130843
Manufacturer Website

$449

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit and Multi-Gigabit Smart Managed Plus Switches from NETGEAR present the right solution for this requirement; delivering unprecedented non-blocking10-Gigabit bandwidth at the most affordable cost. All of them are perfect for removing the SMB network bottlenecks caused by the proliferation of Gigabit-to-the-desktop and the upcoming 10-Gigabit/Multi-Gigabit high end workstations.

View Larger

Configurable L2 Networking Features

The 10G Web Managed (Plus) Switches provide plug-and-play connectivity, in addition to configurable L2 network features in order to meet current and future needs on virtualization, converged networking and mobility.  Some of the main features include:

  • Advanced VLAN support for traffic segmentation including port-based and 802.1Q-based
  • Advanced QoS (Quality of Service) for traffic prioritization including port-based and 802.1p/DSCP-based
  • Auto “denial-of-service” (DoS) prevention
  • IGMP snooping support for multicast optimization
  • Loop detection and broadcast storm controls
  • Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Port trunking/link aggregation (LAG) allows for increased throughput beyond 10G or to provide redundancy across the link(s)
  • Jumbo frame support





  •

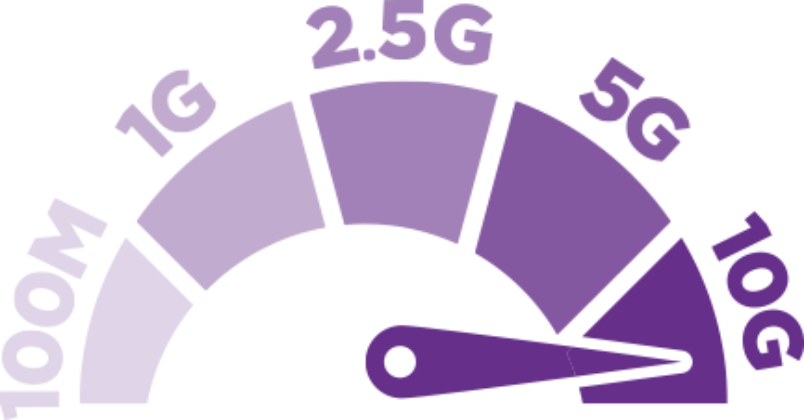

5-Speed Networking



The all new GS110EMX, XS512EM and XS724EM comes with the revolutionary 5-speed Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.

The ports automatically detects which speed is needed by the connected device and provides the adequate speed. Moreover the Multi-speed switch ports can be connected    with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.







  •

10-Gigabit Transition with BASE-T

With 10GBASE-T support, the 10G Web Managed (Plus) Switches enable a standard RJ45 Ethernet jack and existing Cat 6 or Cat 7 network cables to be used, delivering a 10X increase in network performance with minimum network changes and upgrades.

  • 10GBASE-T is backward compatible, auto-negotiating between higher and lower speeds, thereby not forcing an all-at-once network equipment upgrade
  • Cat 5/Cat 5e are supported for Gigabit speeds and Multi-Gigabit (2.5G, 5G) speeds up to 100 meters
  • Cat 6 twisted pair copper cabling supports 10-Gigabit speeds up to 45 meters
  • Cat 6a or newer Cat 7 cabling will allow for up to 100 meter 10GBASE-T connections





    Smart IT, not Big IT

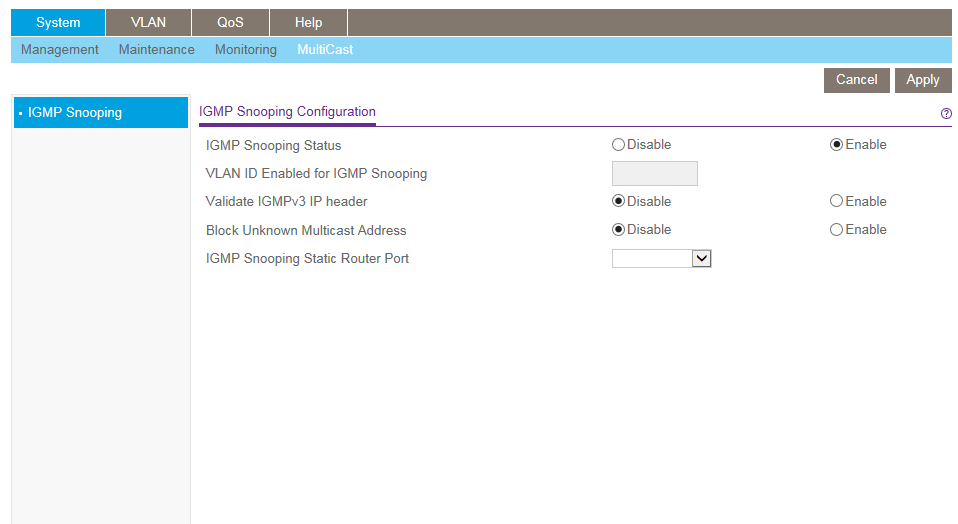

    • Easy-to-use web browser-based management GUI makes setup and management simple
    • Standards-based technology, ensuring interoperability with any standards-based devices in the existing network
    • Worry-free with NETGEAR ProSAFE LIFETIME Hardware Warranty
    • Minimal down-time with NETGEAR ProSAFE LIFETIME Next-Business-Day (NBD) Replacement Warranty
    • Get deployment assistance with 90-days Free 24x7 Advanced Technical Phone Support
    • LIFETIME 24x7 Online Chat Technical Support
    100M/1G/2.5G/5G/10G RJ-45 copper ports
    • 2
    10M/100M/1G Copper ports
    • 8
    Form Factor
    • Desktop/Wall-Mount/Rackmount
    Packet buffer memory
    • 128KB
    Bandwidth
    • 56Gbps
    MAC Address database size
    • 16K
    VLAN (# supported)
    • 64
    Number of LAGs & number of members
    • 5 LAGs with max 9 members in each LAG
    Supported multicast groups
    • 128
    Max number of source ports allowed (many to one port mirroring)
    • 9
    Bandwidth
    • 56Gbps
    Fan(s)
    • 0 ( Fanless)
    IEEE 802.3az (Energy Efficient Ethernet)
    • Yes
    Max power consumption (Watts)
    • 13.2W
    LEDs
    • Power, Speed, Link/Activity
    Acoustic noise level @ 25° C (dBA)
    • 0
    Operating temperature
    • 0° to 40° C
    Electromagnetic compliance (A or B)
    • B
    Dimensions (W x D x H)
    • 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in)
    Weight
    • 0.75 kg (1.63 lbs)
