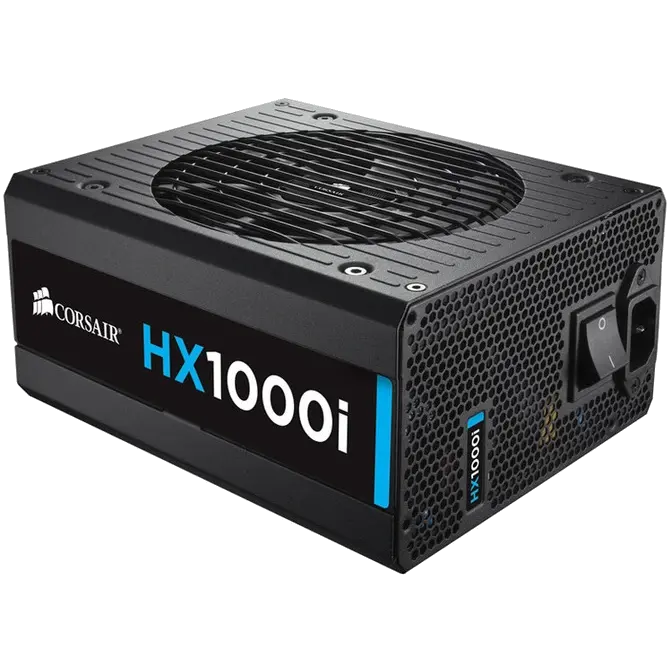

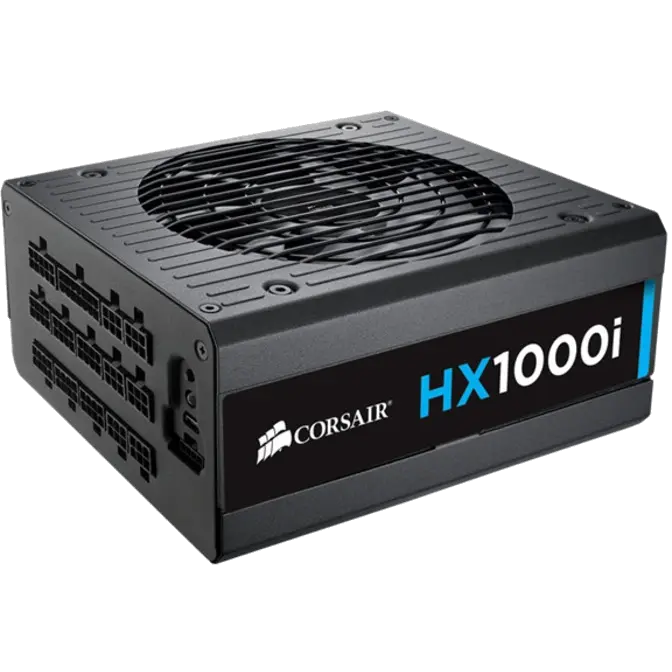

1000 Watt Corsair HX1000i 80 Plus Platinum Power Supply PN CP-9020074-AU

Web ID: 21548

HXi Series power supplies give you extremely tight voltage control, virtually silent operation, and a fully modular cable set. With all Japanese 105C capacitors, theyre a great choice for high performance PCs where reliability is essential. 80 PLUS Platinum efficiency reduces operating cost and excess heat, and together with Zero RPM Fan Mode technology, gives you virtually silent operation. With Corsair Link Digital support, you can monitor power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop. And, the fully modular, low profile cable set makes builds and upgrades easy, with clean, great-looking results.
Manufacturer Warranty: 10 Year
Manufacturer PN: CP-9020074-AU
GTIN: 843591041102
Manufacturer Website

$279SAVE $50

High power and incredible efficiency in our quietest PSUs yet.

HXi Series power supplies give you extremely tight voltage control, virtually silent operation, and a fully modular cable set. With all Japanese 105°C capacitors, they’re a great choice for high performance PCs where reliability is essential. 80 PLUS Platinum efficiency reduces operating cost and excess heat, and together with Zero RPM Fan Mode technology, gives you virtually silent operation.

With Corsair Link Digital support, you can monitor power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop. And, the fully modular, low profile cable set makes builds and upgrades easy, with clean, great-looking results.

Quiet, efficient operation

80 PLUS Platinum efficiency and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the HXi hard, the thermally controlled fan spins only as fast as it needs to.

But that’s not all. It’s quieter than most PSUs when the fan’s not spinning, too. The HXi is built with capacitors and other internal components specially selected to reduce coil whine and other electronic noise.

Corsair Link Digital for advanced monitoring and control

Connect the included cable to a motherboard USB header and download the free Corsair Link Dashboard application for Windows and you can monitor performance and efficiency, toggle single rail or multi rail mode, and control fan speed directly from your desktop.

Easy Installation

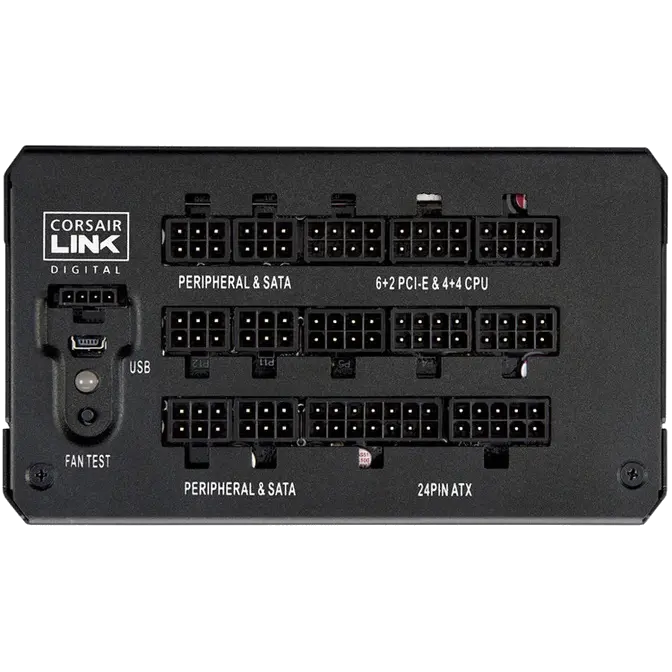

The fully modular, low-profile cable set allows for quick and easy installation and great-looking builds. The fan self-test switch lets you quickly confirm operation before you even attach cables to your motherboard.


Contents and Specifications

Package contents

  • HXi Series High-Performance ATX Power Supply

Compatibility

  • 4th generation Intel® Core™ processor Ready (Intel Haswell and Z87 motherboards)
  • ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems

Features

  • Corsair Link™ Integration for monitoring performance and adjustment of fan speed and multi-rail/single rail mode.
  • 80 PLUS® Platinum efficiency, delivering 92% energy efficiency at real world load conditions.
  • ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.
  • 140mm thermally controlled fluid dynamic bearing fan spins up as needed.

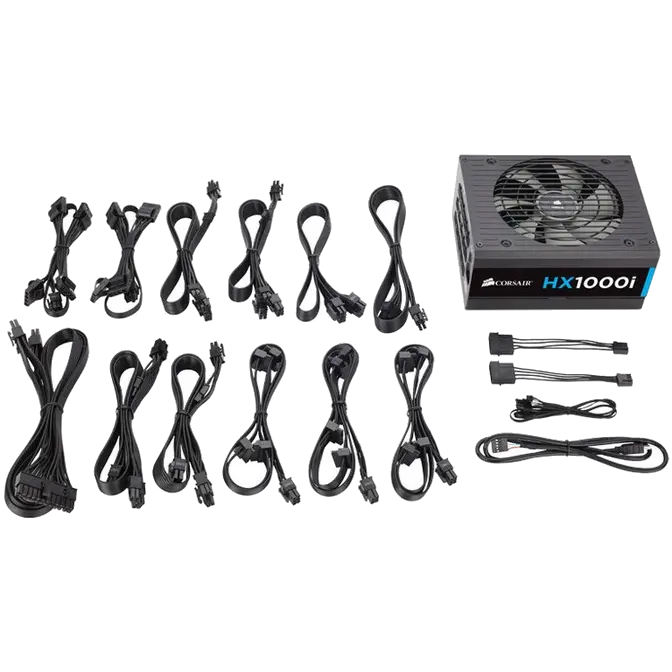

  • Fully Modular low profile cables for easy installation, less clutter, and helps maximize airflow through your computer’s chassis.



  • Engineered to meet maximum power output at a server-grade 50C temperature rating.
  • Fan self-test switch to determine fan functionality even before installation.
  • Over-voltage protection, under-voltage protection, and short circuit protection, over power protection, over temperature protection provide maximum safety to your critical system components.
  • Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH

Warranty

Ten years

Weight

3.592kg

80 Plus

Platinum

Power

1000 Watts

Fanless mode

Yes

Fan bearing technology

Fluid Dynamic Bearing

Fan size (mm)

140mm

C-Link Digital

Yes

Continuous output rated temperature (°C)

50°C

Dimensions

150mm x 86mm x 180mm

Modular

Fully

Sleeved cables

Low-Profile, All Black

ATX Connector

1

EPS Connector

2

Floppy Connector

2

Four Pin Peripheral Connector

12

PCIe Connector

8

SATA Connector

12

Plug Type

NA



Corsair HX1000i DC Output Ratings in Single +12V Rail Mode
DC output +3.3V +5V +12V -12V +5VSB
Max Load 25A 25A 83.3A 0.8A 3A
Maximum Combined Wattage 150W 1000W 9.6W 15W
Total Power: 1000W




Corsair HX1000i DC Output Ratings in Multiple +12V Rail Mode
DC Output +3.3V +5V +12V1 +12V2 -12V3 +12V4 +12V5 +12V6 +12V7 +12V8 +12V +5VSB
Max Load 25A 25A 40A 40A 40A 40A 40A 40A 40A 40A 0.8A 3A
Maximum Combined 150W 1000W 9.6W 15W
Total Power 1000W
