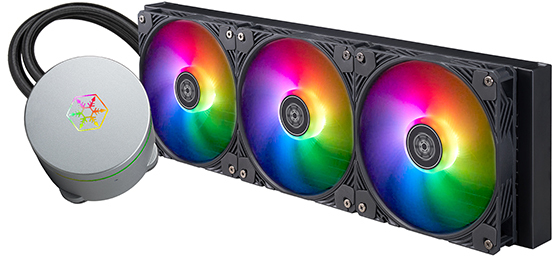

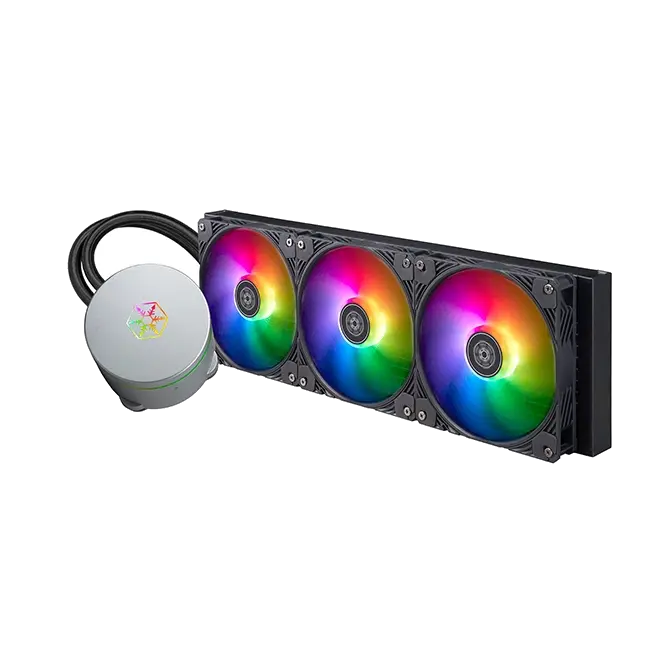

SilverStone IceMyst 420 Liquid CPU Cooler
Web ID: 38470

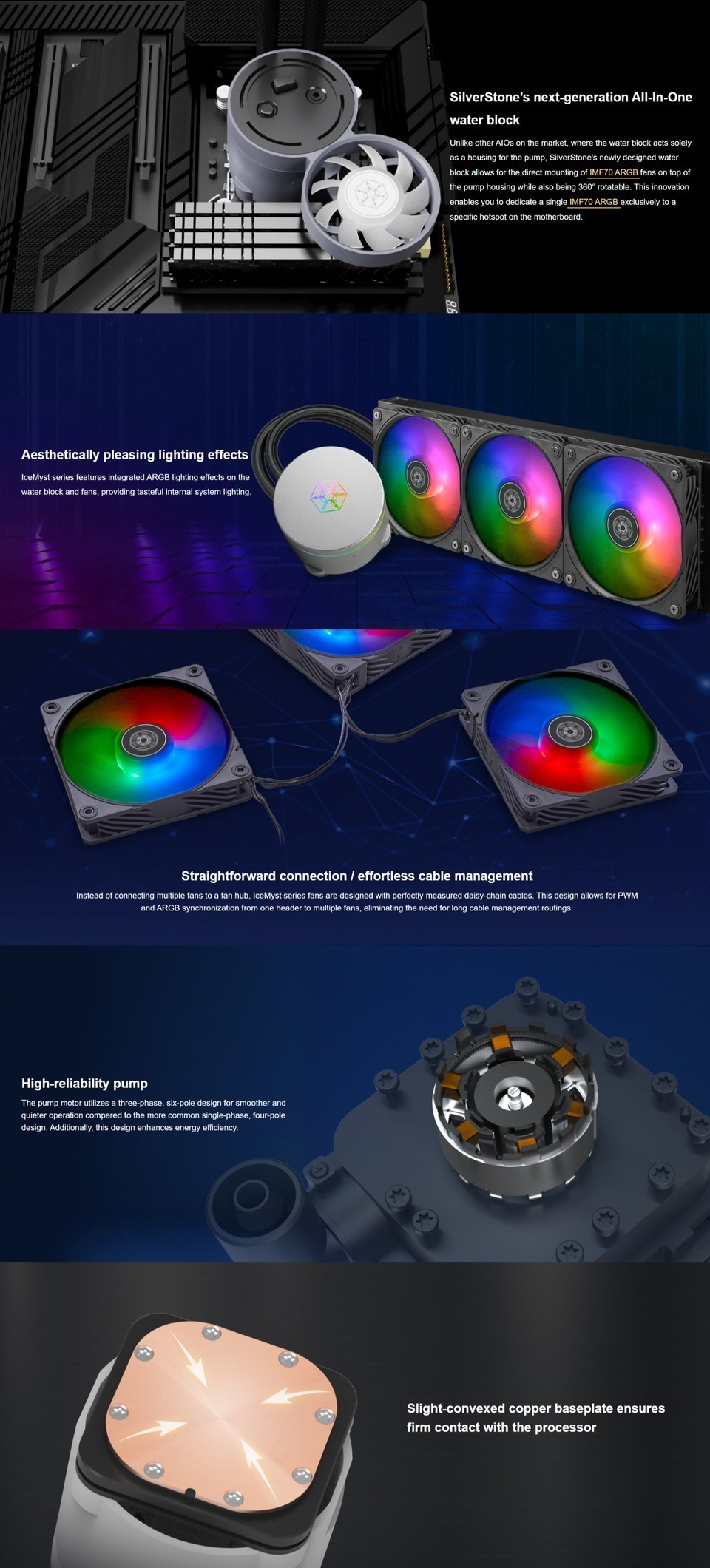

SilverStone's newly designed expandable water block features a seamless 360 rotatable top cover
Modular cabling design greatly simplifies connection and management of cables
Slight-convexed copper baseplate ensures firm contact with the processor
Radiator-optimized cooling fans with tremendous airflow and static pressure figures
Three-phase, six-pole motor design
ARGB controller included with 10 lighting modes, along with adjustable brightness and color-changing speed
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-IM420-ARGB
Manufacturer Website
Model No.
SST-IM420-ARGB
Application
Intel LGA 115X/1200/1700/2011/2066
AMD socket AM5/AM4
Water block
Dimension
- 73mm (W) x 70mm (H) x 84mm (D)
2.87" (W) x 2.76" (H) x 3.31" (D)
Material
- Copper base with plastic body
Pump
Motor speed
- 3,100 ±10% RPM
Rated Voltage
- 12V
Rated Current
- 0.38A
Connectors
- 2510 - 3 pin
Radiator
Dimension
- 140mm (W) x 28mm (H) x 456mm (D)
5.51" (W) x 1.1" (H) x 12.36" (D)
Material
- Aluminum
Tube
Length
- 460mm
Material
- Rubber
Fan
Dimension
- 140mm (W) x 25mm (H) x 140mm (D)
5.51" (W) x 0.98" (H) x 5.51" (D)
Speed
- 400 ~ 1,750 RPM
Noise level
- 13.3 ~ 30.8 dBA
Rated Voltage
- 12V
Max airflow
- 93.29 CFM
Max air pressure
- 2.39mmH2O
Connector
- 4 pin PWM & 4-1 pin ARGB (5V LED)
Remark
Remark
* Please ensure that the control box and the RGB port on the motherboard you wish to connect are compatible with the RGB port definition of the IM420-ARGB. An incorrect connection may result in malfunctions or damage.
