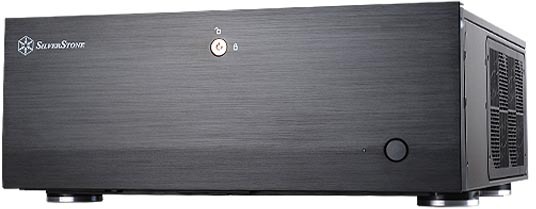

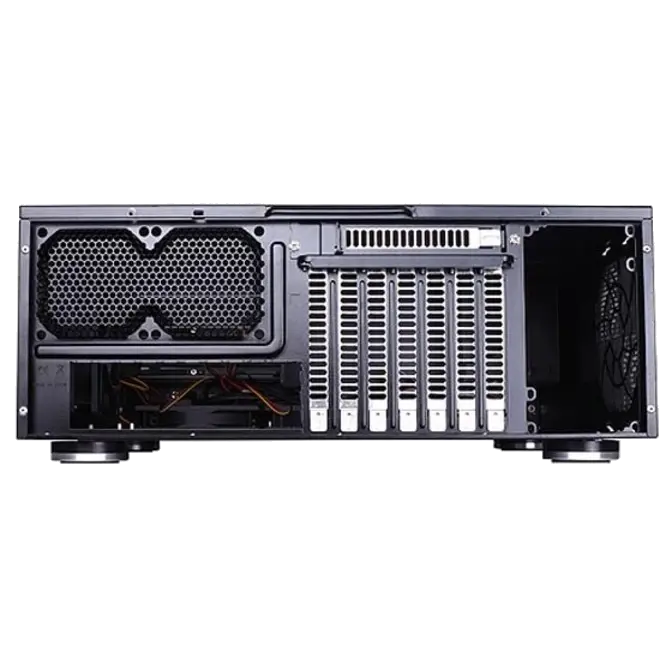

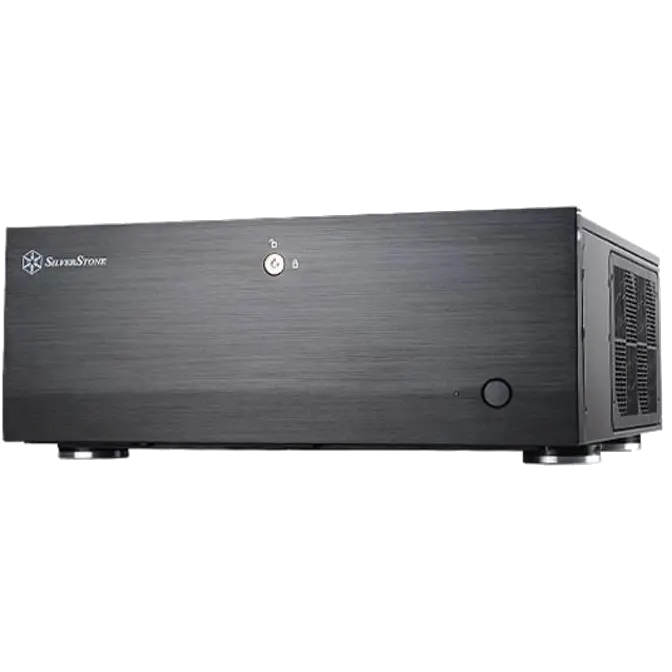

Silverstone GD07B-C Black 4U Rackmount Case No PSU
Web ID: 38005
Includes USB Type-C front port (SST-GD07B-C only)
Positive air pressure design for excellent cooling/quietness and dust-prevention
Support expansion cards up to 13.6 inches (345mm)
Supports Extended ATX motherboard
Quick access filters to prevent dust buildup
Lockable front door and power button ensure security of system and drives
LED indicator with adjustable brightness
Impressive storage capacity of up to eleven drive bays ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-GD07B-C
Manufacturer Website
Model No.
Type-C version
SST-GD07B-C (Black, Type-C port)
USB 3.0 version
SST-GD07B (Black)
Material
Aluminum front door and plastic front panel, steel body
Motherboard
SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX *
Drive bay
External
- 5.25" x 4
Internal
- 3.5" x 5, 2.5" x 2
Cooling system
Rear
- 80mm x 2
Top
- oversized vents
Bottom
- 120mm x 2 or 120mm x 1 + 80mm x 2 or 60mm x 5
(120mm fan x 2 included)
Side
- 120mm x 2
(120mm fan x 1 included)
Limitation of CPU cooler
138mm
Expansion slot
7+1
Limitation of expansion card
Compatible up to 13.6" (345mm) long, width restriction: 5.25" (133mm)
Limitation of VGA card
Support graphic cards up to 13.6 inches
Power supply
Support standard PS2(ATX) up to 220mm, recommended depth is under 180mm **
Limitation of PSU
220mm
Front I/O port
SST-GD07B-C: USB Type-C x 1, USB 3.0 x 1, Audio x 1, MIC x 1
SST-GD07B: USB 3.0 x 2, Audio x 1, MIC x 1
Dimension
440mm (W) x 175mm (H) x 435mm (D), 33.5 Liters
17.32" (W) x 6.89" (H) x 17.13" (D), 33.5 Liters
Net weight
7kg
Extra
Support Kensington lock
