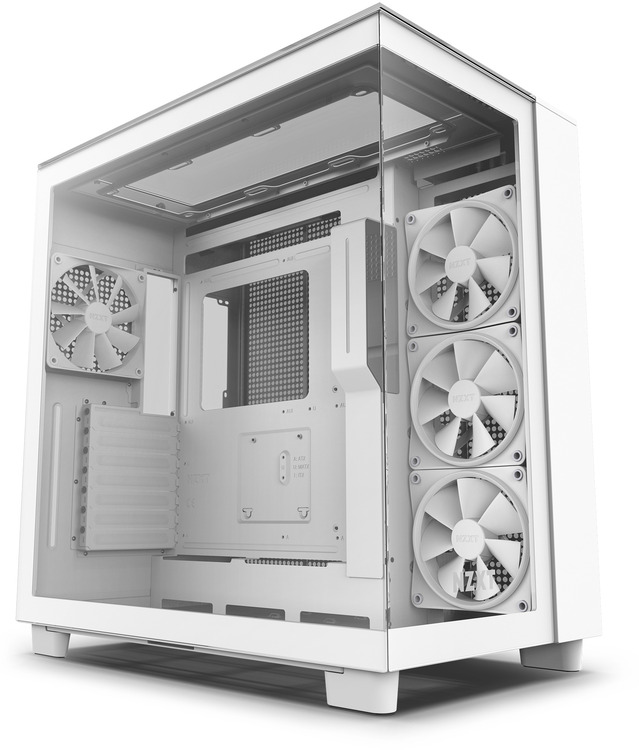

NZXT ATX H9 ELITE Case White CM-H91EW-01
Web ID: 35078
The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
Manufacturer Warranty: 2 Year
Manufacturer PN: CM-H91EW-01
GTIN: 810074842525
Manufacturer Website
KEY SPECS
-
Motherboard Support:Mini-ITX, Micro-ATX, ATX
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, Tempered Glass
DIMENSIONS
-
Height:495mm (With Feet)
-
Width:290mm
-
Depth:466mm
-
Weight:13.1 kg
COMPATIBILITY & CLEARANCE
-
CPU Cooler Clearance:Up to 165mm
-
GPU Clearance:Up to 435mm
-
PSU Clearance:200mm
-
Cable Management:91mm
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:2
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
EXPANSION SLOTS
-
Standard:7
-
Vertical:0
DRIVE BAYS
-
2.5":4+2
-
3.5":2
FAN SUPPORT
-
Side:3 x 120mm
-
Top:3 x 120mm / 2 x 140mm
-
Bottom:3 x 120mm / 2 x 140mm
-
Rear:1 x 120mm
-
Filters:All Air Intakes
RADIATOR SUPPORT
-
Side:Up to 360mm
-
Top:Up to 360mm
-
Bottom:Up to 360mm
-
Rear:Up to 120mm
FAN SPECS
-
Model:F120Q (Case Version)
-
Speed:1200 ± 240RPM
-
Airflow:62.18 CFM
-
Static:1.05 mm - H2O
-
Noise:25.1 dBA
-
Fan Connector:3-pin
FAN SPECS
-
Model:F120RGB Duo
-
Speed:500 ± 1800RPM
-
Airflow:48.58 CFM
-
Static:2.42mm - H2O
-
Noise:29 dBA
-
Fan Connector:4-pin
GENERAL
-
Warranty:2 Years
-
Model Number:CM-H91EW-01 (White) / CM-H91EB-01 (Black)
-
UPC:810074842525 (White) / 810074842518 (Black)
-
EAN:5056547202440 (White) / 5056547202433 (Black)
