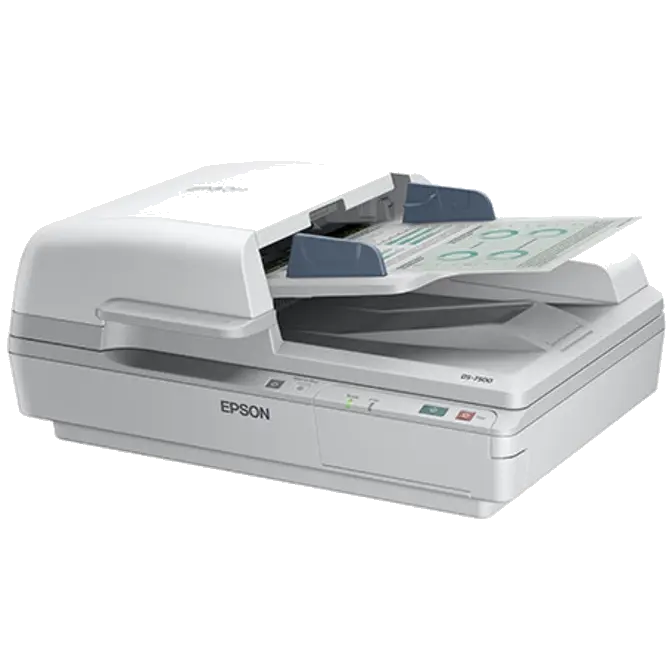

Epson WorkForce DS-7500 B11B205345 Duplex Colour A4 Flatbed Document Scanner

Web ID: 36623

The Epson WorkForce DS-7500 is a high-speed, 2-sided document imaging scanner with flatbed versatility, This high performance scanner delivers remarkable scans from 101mm x 152mm and up to 215 x 1016mm.Quickly scanning 2-sided documents in just one pass. Featuring a 100-sheet Automatic Document Feeder (ADF), the scanning of one- or 2-sided documents is achieved easily, and the 211 x 297mm flatbed to scan hard-bound books or other odd-sized items. The Epson WorkForce DS-7500 has superior speeds in its class of up to 40 ppm/80 ipm ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: B11B205345
Manufacturer Website

$1999

Network Adaptor – Convenient Control of the Scanner


When used in conjunction with WorkForce® DS-7500 document scanners, the EPSON Network Scan Module takes the place of your scanner’s control panel. By removing a few screws, using the included screwdriver, the front control panel is unlocked on your scanner, and replace it with the Module.

Now, the scanner has the capability to scan to, and be controlled by, any PC that’s within the same sub-network and has Document Capture Pro software installed. Document Capture Pro comes standard with the EPSON WorkForce® DS-7500.

Easy setup and operation


Connected to the Epson scanner, the Network Scan Module queries the sub-network. The LCD then displays a list of all available PCs that have Document Capture Pro installed (up to 100). Selecting the desired PC will display the job list available in Document Capture Pro.

Select and modify the job, then load the documents and press the Scan button. The documents are scanned, stored or sent according to the job parameters. The EPSON Network Scan Module features one ‘Scan’ button and a convenient LCD, which enables the user to select from many setting options.

Features/Benefits

  • Scan to any PC in your workgroup without having to use the PC to control your scanner
  • Scan directly to popular cloud services
  • Works with the EPSON WorkForce® DS-7500 document scanner
  • Select from 30 user-definable scan job settings, with variables including:
    – Source (Automatic Document Feeder or flatbed)
    – Document size (standard sizes/custom sizes/auto)
    – Image type (black-and-white/grayscale/color/auto)
    – Image rotation
    – Resolution (from 50 dpi up to the maximum dpi of the scanner)
  • Output settings
    – Save-to folder
    – Job separation (a stack of documents can be saved as multiple pdf files by inserting a blank page between each document in the stack or a bar-coded page separator)
    – File type (pdf, pdf-a, searchable pdf, jpg, BMP [Windows only], tiff, multi -tiff, PICT [Mac only] ) and variables associated with each file type (compression settings, etc.)
  • Destination settings
    – Popular cloud services including SharePoint ®, Google Docs® and Evernote ® (each service has its own setup screen where you can add your account settings, destination folder, etc.)
    – E-mail (Document Capture Pro launches your e-mail client window with the attachment already in place, or send an e-mail to a pre defined address)FTP/Web folder
    – Printer
    – Any appropriate application (third-party document management software)
WorkForce DS-7500 B11B205345
TECHNOLOGY
SCANNER TYPE A4 Flatbed document scanner
OPTICAL RESOLUTION Up to 1200 dpi
AUTOMATIC DOCUMENT FEEDER TYPE One-Pass Duplex
SUPPORTED FORMAT A4 / B5 / A5 / B6 / A6 / Postcard / Executive / Legal / Letter
PIXEL DEPTH LEVELS Grey :16bit in, 8bit out
Color: 48bit in, 24bit out
SCANNER
PHOTO ELECTRIC DEVICE 4 lines colour CCD
LIGHT SOURCE Ready Scan LED technology
OUTPUT RESOLUTION 50 - 4800dpi, 7200dpi, 9600dpi
LCD DISPLAY Epson Network Interface Panel (Option)
ADF MINIMUM DOCUMENT SIZE (mm) 100mm x 148mm
ADF MAXIMUM DOCUMENT SIZE (mm) 216mm x 1,016mm

SCAN SPEED
SCANNING SPEED A4 (200/300DPI) 40ppm / 80ipm
SCANNING SPEED A4 COLOUR (200/300DPI) 40ppm / 80ipm
SCANNING SPEED A4 LINE ART (200/300DPI) 40ppm / 80ipm
SCANNING FEATURES
SUPPORTED FILE FORMAT PDF, Searchable PDF (*1), PDF/A, Secured PDF, JPEG, BMP, TIFF, Multi-TIFF, PNG
FILE COMPRESSION METHOD Hardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW) , PDF Compression
ADVANCED IMAGING FEATURES

Automatic De-Skew
Skip blank page
Auto rotation (*5)
Automatic Multi-Document Recognition (*5)
Automatic B/W or colour detection
Manual / Automatic Job Separation (*5)
Automatic Folder Creation (*5)
Horizontal & Vertical Document Split (*5)
Book spine correction (*5)
RGB colour Dropout
RGB colour Enhance
Dual Image Output (*5)
Punch hole Removal
Auto Area Segmentation (AAS)
Pre-defined scanning settings (*5)
Text Enhancement
Edge Fill
Advanced cropping feature for Auto size (*5)
Unsharp Mask (USM)
Descreening
Barcode Recognition (*5)
Zonal OCR A & B (*5)

ADVANCED DOCUMENT INTEGRATION (*5)

Scan to email, FTP, SharePoint, Web folders, network folders, Print

PAPER HANDLING
ADF PAPER SETTING CAPACITY 100 Pages
ADF PAPER WEIGHT 50g/m2 ~ 128g/m2
ADF MEDIA TYPES Paper (laser, inkjet), Normal Paper, Recycling paper
DAILY DUTY CYCLE 4,000 pages / day
INTERFACE
USB INTERFACE High Speed USB 2.0
NETWORK INTERFACE PANEL (option)
ETHERNET SETTINGS 10BASE-T / 100BASE-TX / 1000BASE-T / Full duplex / Half duplex
PANEL TYPE 5-line LCD with Push Scan features
PROTOCOLS SUPPORTED TCP/IP, DHCP, DNS, HTTP, SNMP, SLP
IPv6 SUPPORT Yes (*5)
PUSH SCAN FEATURES Yes (Document Capture Pro/Server)
USER AUTHENTICATION Yes (Document Capture Pro)
SOFTWARE
SOFTWARE DRIVER Epson Scan 5.0
DRIVER WIA, Twain, ISIS (*4)
SOFTWARE Document Capture Pro (*5); Document Capture Pro Server (*4)(*6)
Event Manager (Mac Only)
ABBYY Fine Reader Sprint (Win ver9.0/Mac ver8.0)
EpsonNet Setup Manager & EpsonNet Config (*4)(*6)
GENERAL
OPERATING SYSTEMS Windows® XP, Windows® XP x64, Windows® Vista, Windows Vista x64, Windows® 7, Windows® 7 x64 (*1), Windows® 8/8.1, Windows® 10, Windows® 11
Windows® Server 2003 / 2003 R2 / 2008 / 2008 R2 (*2)
Terminal Service, Presentation Server 4.5, XenApp 5.0, XenApp 6.0 (*3)
APPLE® MAC OS 10.4.11 or later (*3)
VOLTAGE Universal AC Adapter AC100-240
DIMENSIONS W x D x H 495 x 360 x 217 mm (W x D x H)
WEIGHT Approx. 9.8 kg
POWER CONSUMPTION 44.5 Watt (Operating) - 12 Watt (Ready mode), 1.6 Watt (Sleep mode)

WARRANTY
WARRANTY STANDARD On Site - 1 Year
EXTENDED WARRANTY
(Additional 2 years On-site)
3YWDS7500
