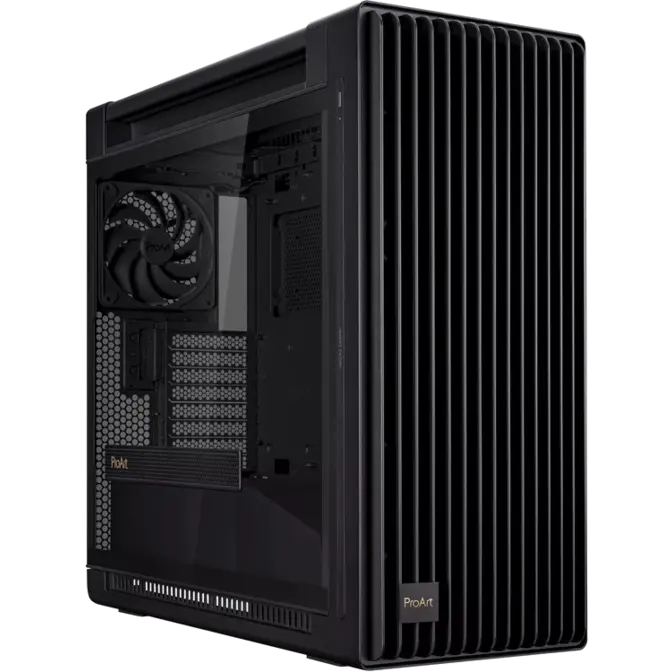

ASUS ProArt PA602 E-ATX Black ATX Case
Web ID: 38804
ProArt PA602 E-ATX computer case, 420 mm radiator support, one 140 mm and two 200mm pre-installed system fans, front panel IR dust indicator, power lock latch, tool-less PCIe mounting, USB 20Gbps support.

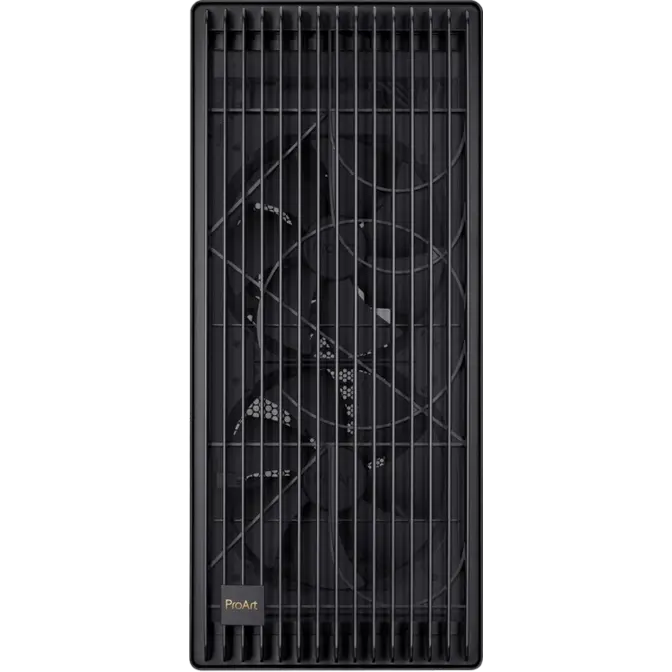

- Superior Airflow: 15.5 mm front panel grill with 45% porosity, two extra-thick 200 x 38 mm front fans for maximum air intake, and a 140 mm rear exhaust fan.
- Superior Thermals: Two deflectors send incoming air towards the motherboard and other internal components to optimize temperatures
- Ample Space: Supports one 420 mm radiator for AIO cooling or custom liquid-cooling loops and the most robust graphics card get ample room for horizontal or vertical mounting
- Extensive I/O: Power Lock Latch and 2-section PWM control; USB Type-C 20Gbps port
- Front Panel IR Dust Indicator: Timely reminders to clean the filter to maintain top-tier airflow

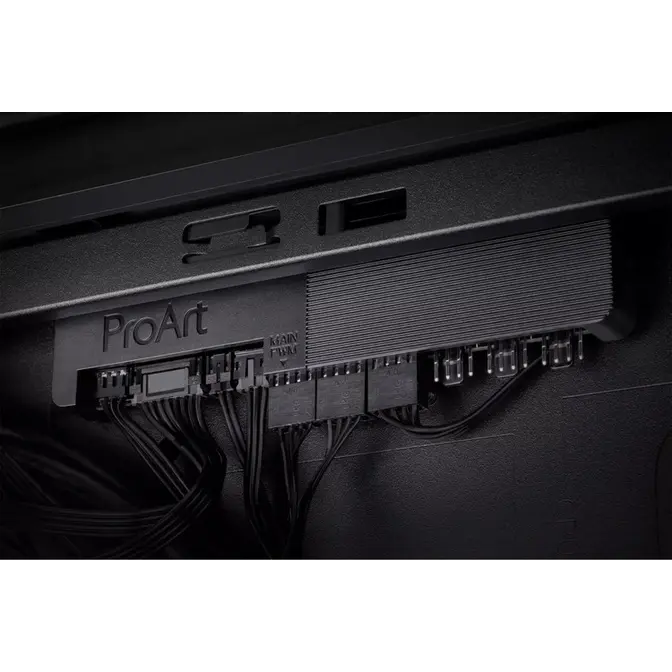

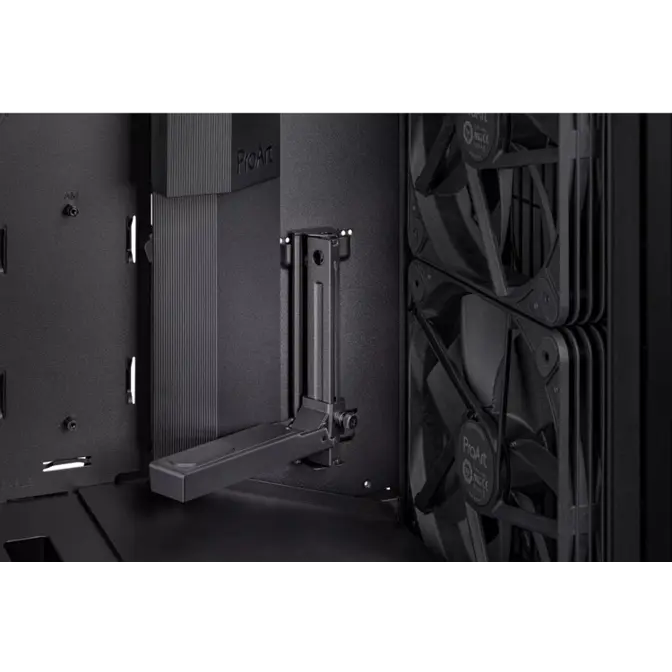

- Creator-Friendly Design: Tool-less graphics card mounting, integrated graphics card holder and built-in fan hub come together to amp up the building experience
- Elegant aesthetics: Minimalist case adorned with ProArt themed design
Manufacturer Warranty: 2 Year
Manufacturer PN: PA602 BLK TG
Manufacturer Website
Model
ProArt PA602
Case Size
Mid Tower
Motherboard Support
EATX (12"x10.9")
ATX
Micro-ATX
Mini-ITX
DTX
Mini-DTX
Drive Bays
4 x 2.5" Bay
4 x 2.5"/3.5" Combo Bay
Expansion Slots
8
2 (additional vertical)

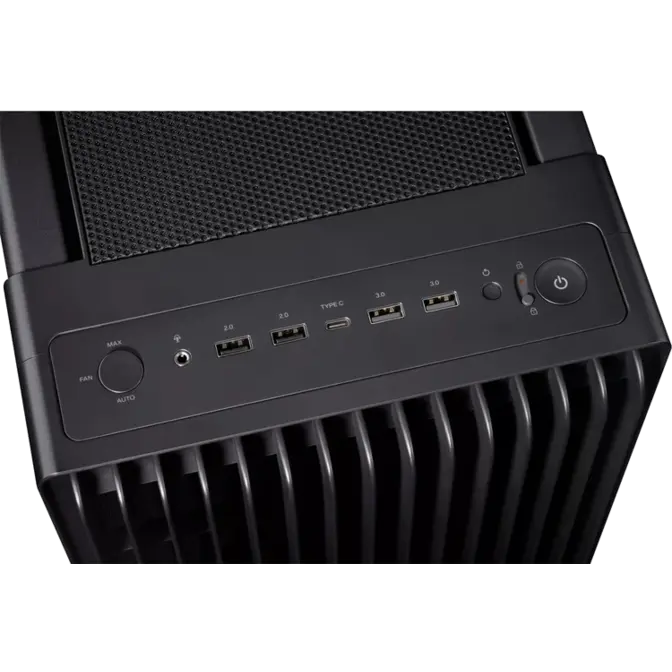

Front I/O Port
2 x USB 3.2 Gen1
1 x UBS 3.2 Gen 2x2 Type C
2 x USB 2.0
Fan Control Button
Reset Button

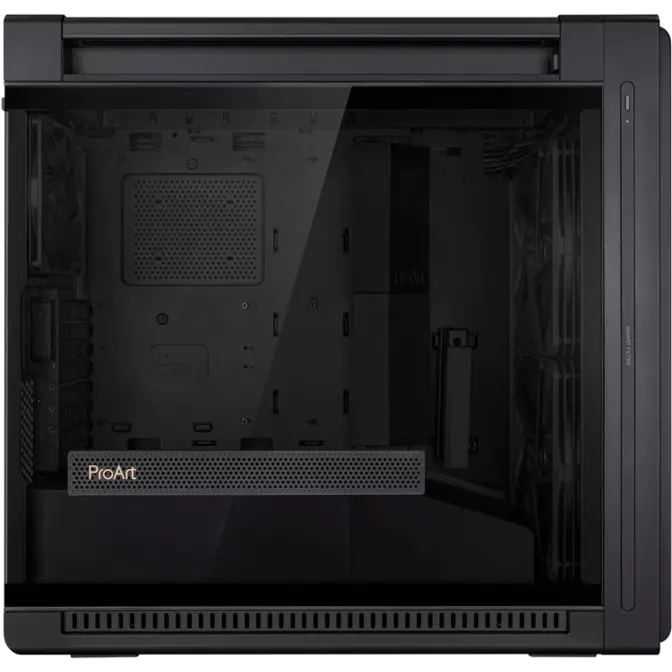

Tempered Glass
Left Side
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
420 mm
Cooling Support (Front)
2 x 200 mm
Cooling Support (Top)
3 x 120 mm
3 x 140 mm
Cooling Support (Rear)
1 x 120 mm
1 x 140 mm
Pre-installed Fans (Front)
2 x 200 mm
Pre-installed Fans (Rear)
1 x 140 mm
PWM
Maximum CPU Cooler Height
190 mm
Maximum GPU Length
450 mm
Maximum PSU Length
190 mm
Removable Dust Filters
Front
Top
Bottom

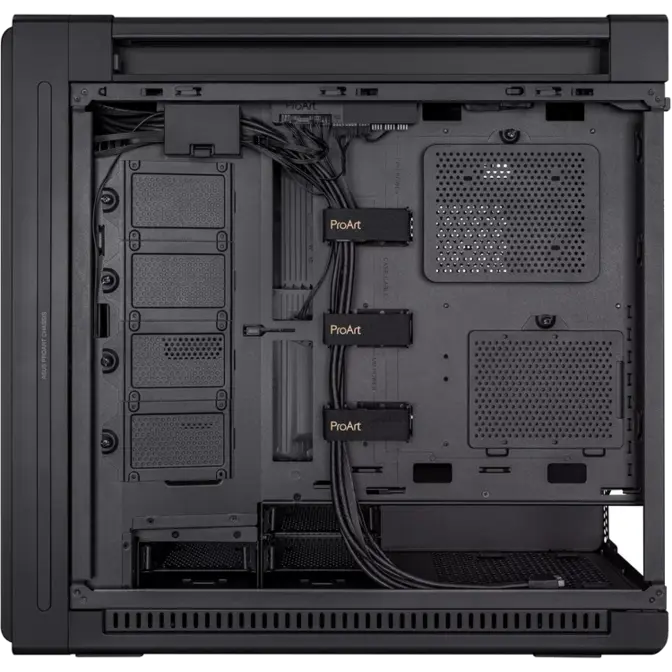

Maximum Cable Management Space
30 mm
Dimensions
593 x 560 x 245 mm
Weight
15.8 kg
