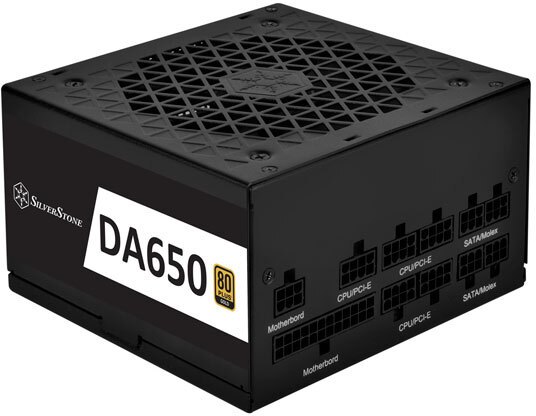

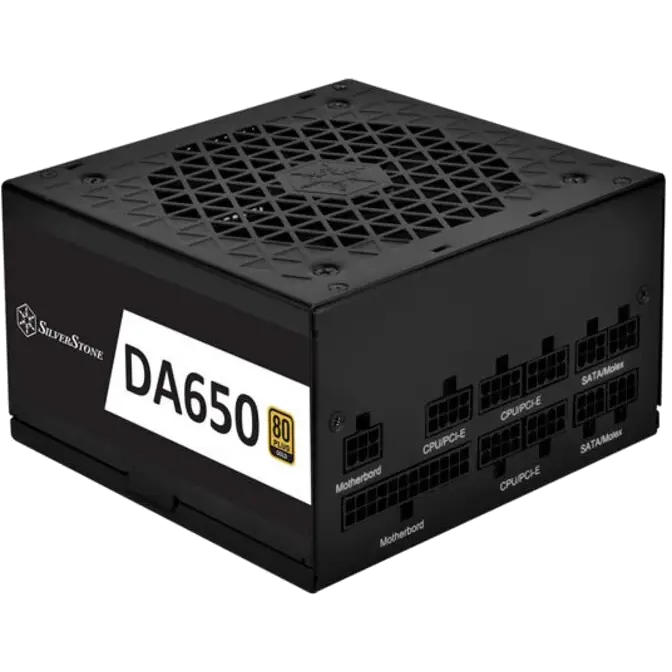

650 Watt SilverStone Gold DA650-G Modular Power Supply
Web ID: 38435
High efficiency with 80 PLUS Gold certification
24/7 continuous power output with 40 operating temperature
Class-leading single +12V rail
Silent running 120mm FDB fan with 18 dBA minimum
Japanese electrolytic capacitors
Specially designed cover increases effectiveness of residual heat dissipation
Compact design with a 140mm depth for easy integration
Strict 3% voltage regulation and low ripple & noise
Manufacturer Warranty: 3 Year
Manufacturer PN: SST-DA650-G
Manufacturer Website
Product No.
SST-DA650-G
Model (safety certification)
SST-AX0650MCGD-A
Color
black (lead-free paint)
Max. DC Output
650W
Power density
360W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 54A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | 3.0A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±3% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 30mV | 30mV | 40mV | 30mV | 40mV |
Combined +3.3V & +5V
100W
Combined +12V
648W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0 ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection

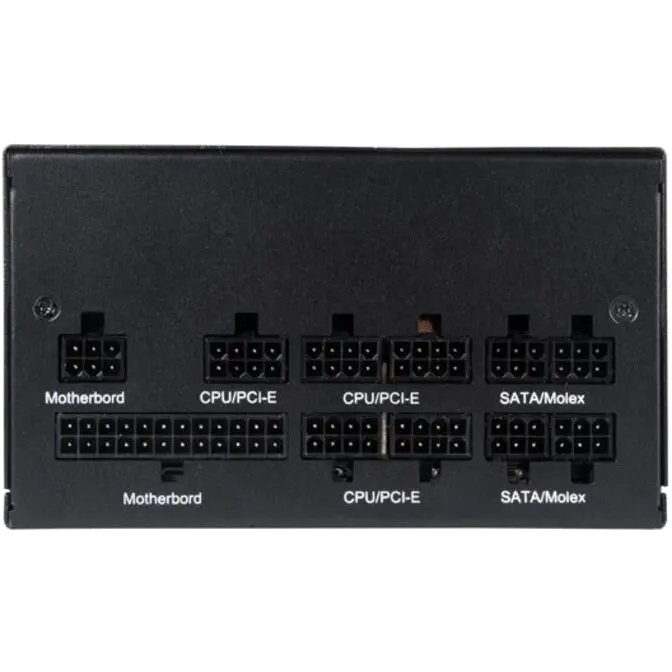

Connectors
1 x 24 / 20-Pin motherboard connector (600mm)
2 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 2)
2 x 8 / 6-Pin PCIe connector ("650mm" x 2)
2 x 8 / 6-Pin PCIe connector ("650mm / 150mm")
8 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector + 1 x 4-Pin Floppy adapter connector (600mm / 150mm / 150mm / 150mm)
Cooling System
Silent 120mm FDB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
Weight
1.42 kg
