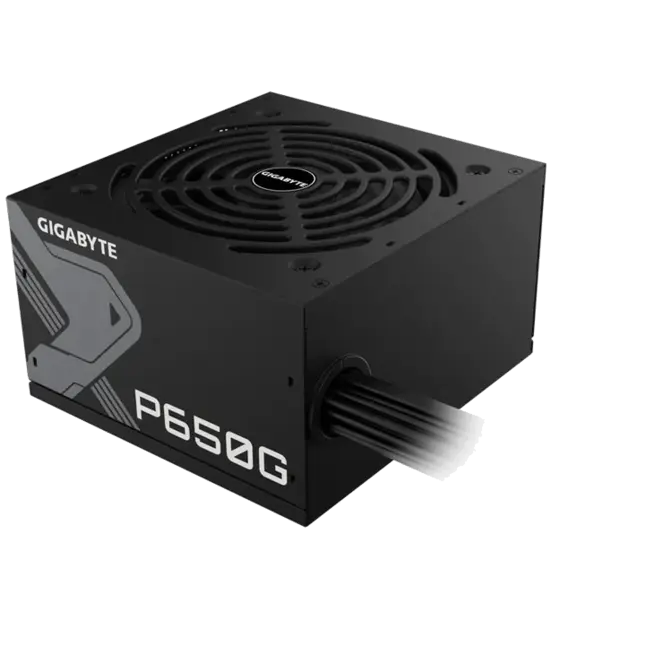

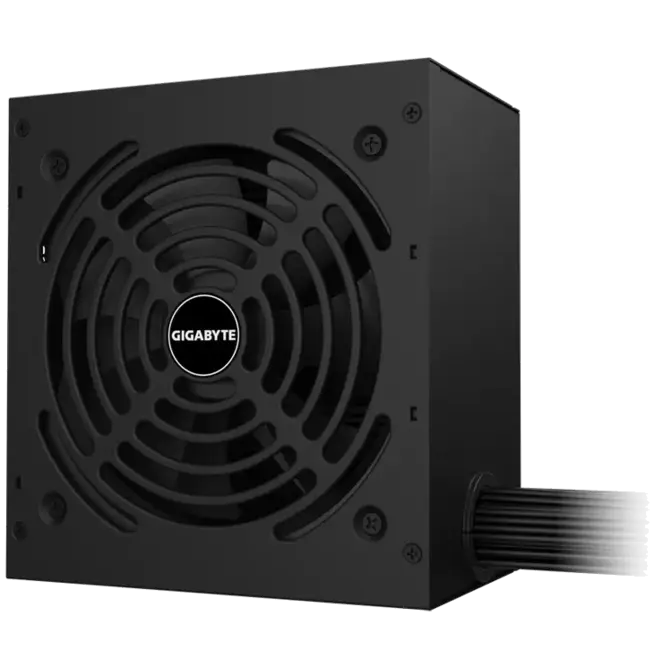

650 Watt Gigabyte GP-P650G 80 PLUS Gold Power Supply
Web ID: 38196
80 PLUS Gold certified
Main Japanese capacitors
120mm Silent Hydraulic Bearing (HYB) Fan
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
Compact design
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: GP-P650G
Manufacturer Website
-
Model
GP-P650G
-
Type
Intel Form Factor ATX 12V
-
PFC
Active PFC(>0.9 typical)
-
Input Voltage
100-240 Vac(full range)
-
Input Current
9-4A
-
Input Frequency
60-50 Hz
-
Output Capacity
650W
-
Dimension
150 x 140 x 86 mm
-
Fan Type
120mm Hydraulic Bearing (HYB) Fan
-
80 PLUS
Gold
-
Efficiency
90% at typical load
-
MTBF
>100,000 hours
-
Protection
OVP/OPP/SCP/UVP/OCP/OTP
-
Power Good Signal
100-500ms
-
Hold Up Time
>16ms
-
Cable Type
Flat, All black
-
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-e 6+2 Pin x 4 : 500mm+150mm*2
SATA x 6 : 500mm+150mm+150mm*2
4 Pin Peripheral x 3: 500mm+150mm+150mm*1
