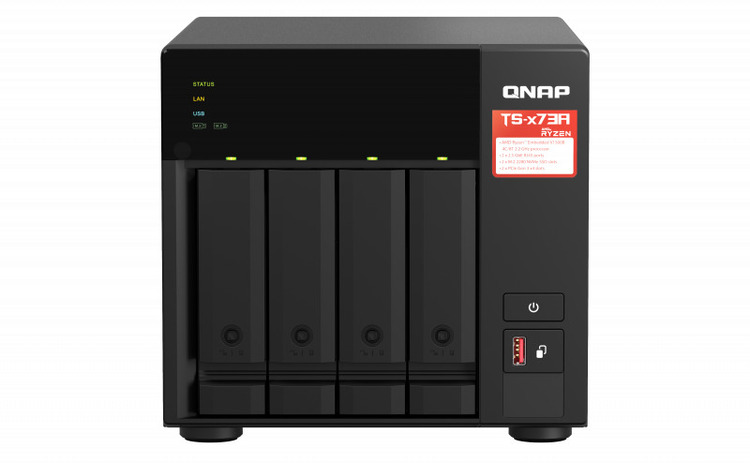

4 Bay QNAP TS-473A-8G Gigabit NAS Unit

Web ID: 31523

Featuring an AMD Ryzen V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-473A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-473A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
Manufacturer Warranty: 3 Year
Manufacturer PN: TS-473A-8G
GTIN: 885022020935
Manufacturer Website

$1125SAVE $124

4 bay qnap ts-473a-8g gigabit nas unit

CPU AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
Floating Point Unit Yes
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Support ECC memory

For dual-DIMM configurations, you must use a pair of identical DDR4 modules.

Flash Memory 5GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable

The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.

M.2 Slot 2 x M.2 2280 PCIe Gen3 x1 slots

Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.

SSD Cache Acceleration Support Yes
GPU pass-through Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2(2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a PCIe adapter
10 Gigabit Ethernet Port Optional via a PCIe adapter
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4

Card dimensions for PCIe slot 1~Slot 2:200 x 68.9 x 18.76 mm / 7.87 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.

USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps
HDMI™ Output Optional via a PCIe adapter
Form Factor Tower
LED Indicators Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 180.2 × 199.3 × 279.6 mm
Weight (Net) 5.54 kg
Weight (Gross) 6.15 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 19.576 W
Power Consumption: Operating Mode, Typical 29.792 W

Tested with drives fully populated.

Fan System fan: 1 x 120mm
CPU fan: 1 x 60mm
System Warning Buzzer
Standard Warranty 3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000
